Intermatic InTouch CA9000 Instructions

Providing a Brighter Solution™

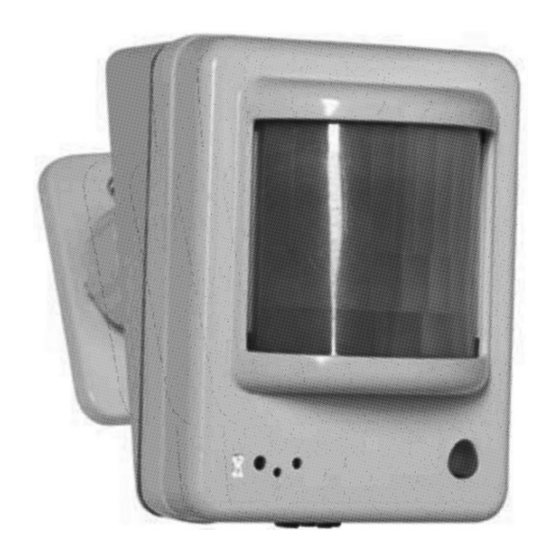

Model CA9000
Passive Infrared (PIR) Occupancy Sensor
Specifications:
Wireless RF Control
Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
3x AA Alkaline Batteries
Ratings:
Wall-pack Transformer:
Input:120VAC, 50/60Hz;
Output 9VDC 500mA (CATRFM)
RF Information:
Minimum Range:
50ft indoor; 100ft outdoor
Frequency: 908.42 MHz
Network Information:
Mesh Network - Each line powered
node acts as a repeater to route
distant signals.
Data Rate: 9600 bits/second
Size: 232 Z-Wave™ Nodes
Optional Transformer Adapter (CATRFM)
This product is compatible with other Z-Wave enabled products
The CA9000 PIR Occupancy Sensor is a Z-wave™ enabled device which is fully compatible with any Z-
wave enabled network. Z-wave enabled devices display the Z-wave logo and guarantee connectivity and
interoperability between devices. Each line powered node in a Z-wave network is designed to act as a
repeater forming a mesh network eliminating radio "dead spots" and providing the highest level of
reliability.
Features
- Multiple location On/Off control when used with Z-wave enabled devices.
- Pre-set scene control when used with up to 5 Z-wave enabled devices.
- Full 229 device scene control when used with Intermatic InTouch™ server (CA5500B).
- Twin pyro sensor elements provide for high accuracy and reliability.
- Wide detection pattern can be used for whole room coverage.
- 3-Mounting options; Adjustable swivel neck rotates 30° vertically and 30° horizontally, Flat on wall, or
Corner mount.
- Adjustable timing interval features settings for pulse, 5 minute, 10 minute, 15 minute, and Manual Off time
ranges.
- Meets ASHRAE Standard 90.1 requirements.
Passive Infrared (PIR)
Passive Infrared occupancy sensors are designed to sense the motion of objects or bodies that are
radiating heat. These sensors are installed to monitor areas where there are limited physical obstructions
that could block the sensor's field of vision.
HOW THEY WORK: The human body naturally radiates heat in the form of infrared energy. As a body
crosses through the sensor's field of vision, it "sees" the motion as a change in the pattern of infrared
energy it is receiving.
INSTALLATION:
1. Mount sensor in location with clear view of area to be monitored using included tilt-swivel base or
adhesive strips.
2. Separate rear housing from front by lifting upwards, install three (3) AA alkaline batteries in front housing
and reattach to rear housing.
3. Operation: Press the activator button to enable and disable the sensor. Set the mode selector switch to
desired mode: Pulse, 5 Min delay, 10 Min delay, 15 Min Delay or Manual Off mode.

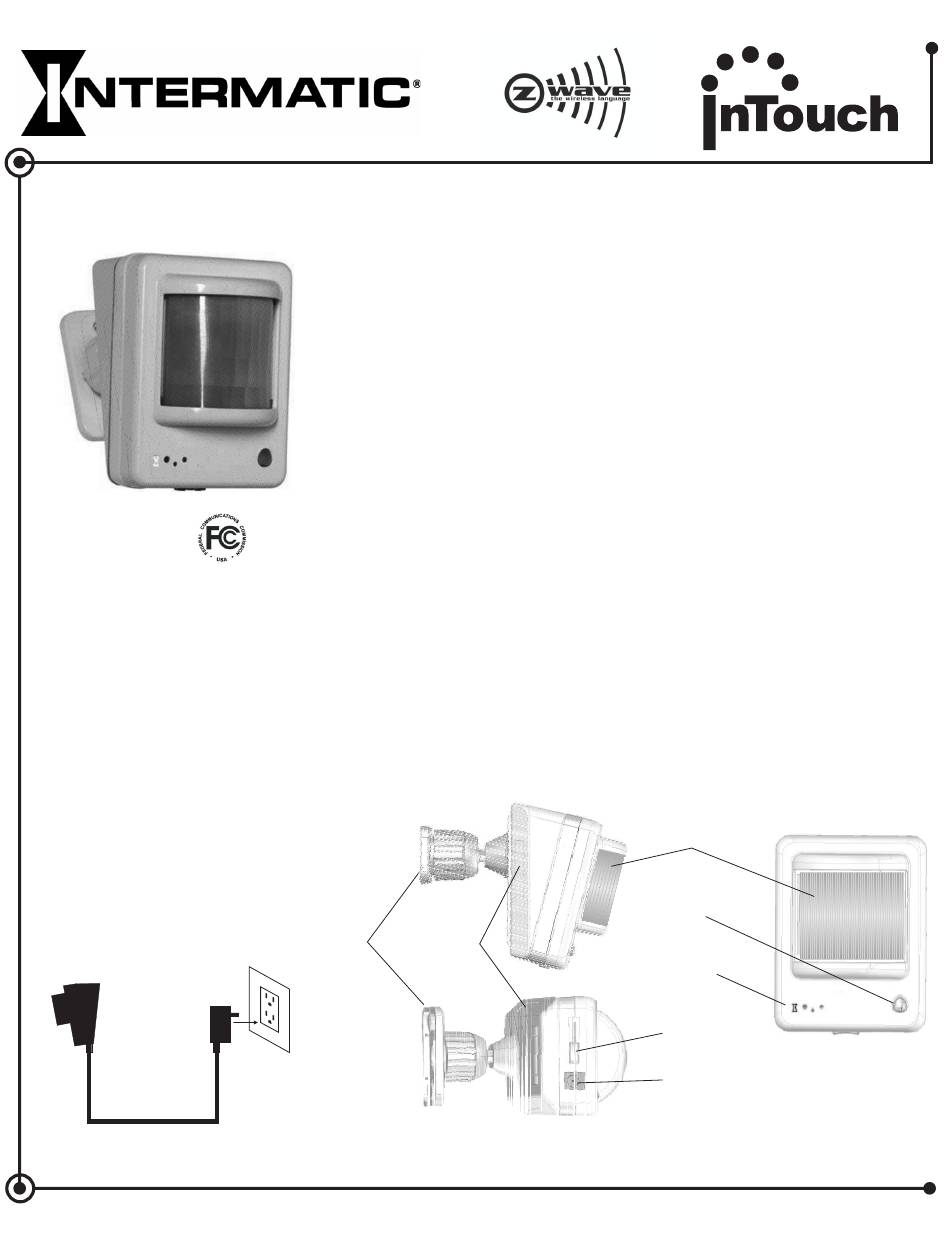

4. For programming instructions refer to the
Snap-on
Corner Mount
Swivel
Bevels w/ Adhesive
Base
Strips
™
InTouch Installer & Users Guide
Side View
Wide Angle
Lens
Activator
Button
LED Status
Indicator
Timing Mode
Selector Switch
Power Connector
Jack For Use With
Optional CATRFM Supply
Bottom View
TM
WIRELESS CONTROLS
(158CA12789).
Front View
158CA12475REF
