Panasonic AG-HVX200 Brochure & Specs

Panasonic memory card camera-recorder manual ag-hvx200.
Hide thumbs

Advertisement

AG-
Memory Card Camera-Recorder
Digital
Mini
Video
Cassette

Advertisement

   Related Manuals for Panasonic AG-HVX200

   Summary of Contents for Panasonic AG-HVX200

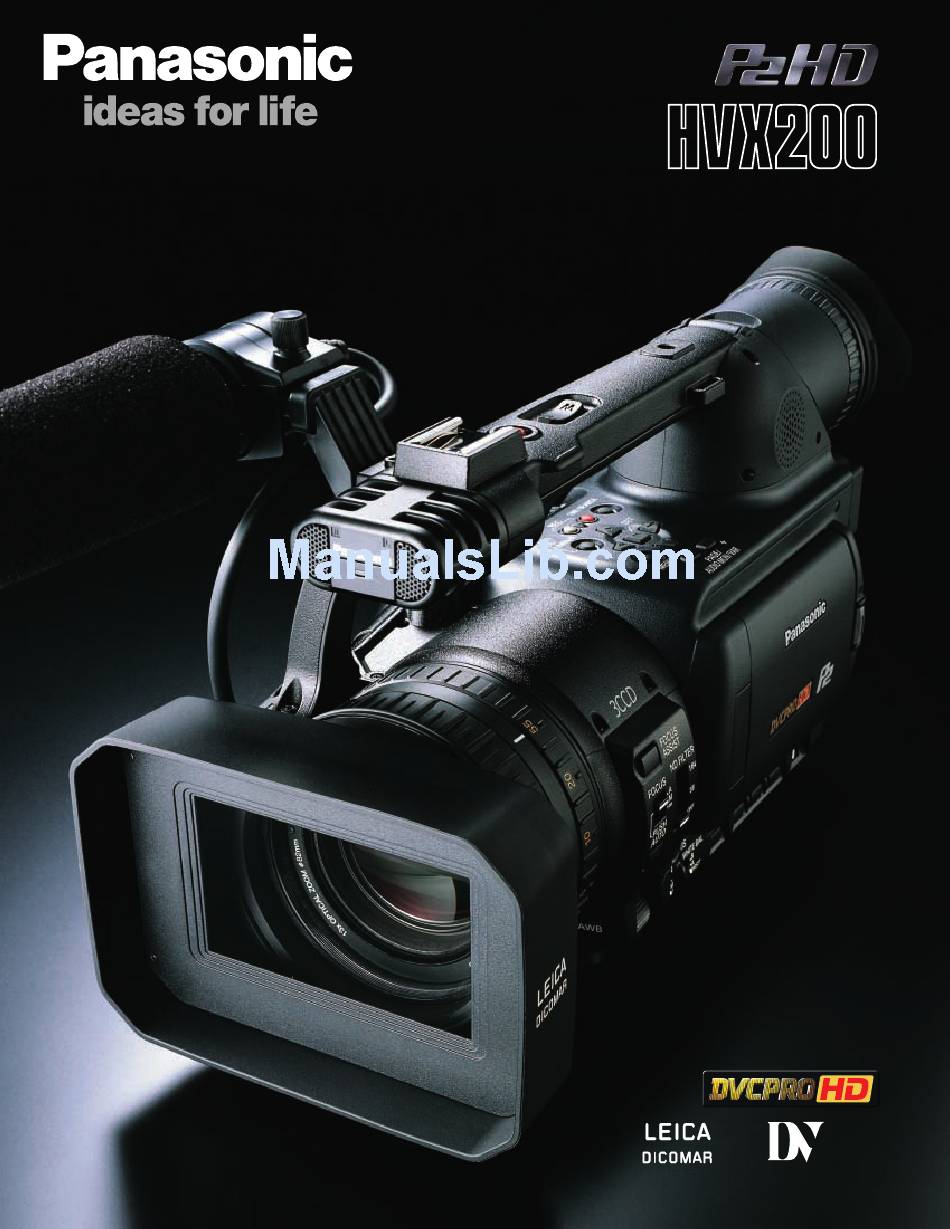

  • Page 1

    Memory Card Camera-Recorder Digital Mini Video Cassette...

  • Page 3

    Panasonic's first HD video product to use P2, the cutting-edge memory recording device that has the potential to revolutionize the entire production paradigm. The AG-HVX200 records HD, either 1080i or 720p video acquired by a new optical system and high-performance digital signal processor onto a P2 card using the broadcasting DVCPRO HD codec.

  • Page 4

    (MOD) of approximately 1.9 ft (0.6 meter) in telephoto mode, the AG-HVX200 has true handheld maneuverability. And with the same cam-driven zoom ring acclaimed in the DVX100 series, the AG-HVX200 gives you the superior operability and control you need in demanding applications. IMAGE QUALITY FOR THE PROFESSIONAL...

  • Page 5

    TV broadcasting. The multi-codec system lets you record in DVCPRO 50, DVCPRO and DV.* *1: As of November 2005, according to a Panasonic survey *2: In 1080/24p, Images are recorded in 60i by 2:3 pull-down. *3: The P2 card can be used for recording video in any codec. Mini DV tape can record video in the DV format.

  • Page 6

    Immediate Startup and Better Data Protection When you press the Record Button in standby mode, the AG-HVX200 instantly finds a blank area of the P2 card and begins recording. It can begin recording immediately even when you're using it to preview video. In normal use, there's no chance of accidentally overwriting a recording.

  • Page 7

    Clip Thumbnail/Data Function The AG-HVX200 records each cut as a clip (file) and automatically attaches a thumbnail image and file information to it. To preview a clip on the LCD monitor or to check clip data, simply choose the clip you want from the list of thumbnails.

  • Page 8

    •Normal cinematic shooting is done at 24 fps, the same rate as in film cameras. The AG-HVX200 can record in 1080/24p (over 60i) or 480/24p (over 60i) mode, as well as 720/24p mode. 30 fps is the standard frame rate used in production of TV commercials, music clips and video software.

  • Page 9

    Create Slow-/Fast-Motion Effects Using Mini DV Tape In addition to its two P2 card slots, the AG-HVX200 is equipped with a mini DV tape drive. This allows recording in 60i, 30p, 24p or 24pA (Advance) modes, just like AG-DVX100 series models. It also lets you down-convert an HD source (1080i/720p) recorded on a P2 card and copy it to a mini DV tape.

  • Page 10

    SD Memory Card. Three User Buttons The AG-HVX200 has three user buttons, each of which can be assigned any one of 12 functions (rec check, spotlight, backlight, black fade, white fade, ATW, ATW lock, gain 18dB, focus ring, memo/index, slot sel, shot mark).

  • Page 11

    DVCPRO broadcast models. This ultra-tough, ruggedly built camcorder protects the precision parts within, giving the AG-HVX200 outstanding reliability and durability. Built for professionals, the AG-HVX200 stands up to the bumps and jolts that may occur in the field. Support Functions for Greater Convenience •Mode check: Displays a list of the camera settings...

  • Page 12

    Transferring Files to an External HDD The AG-HVX200 offers a host function. Insert a P2 card in the card slot, and data can be transferred to an external Hard Disk Drive (AC Power Supply needed) via the IEEE 1394 port.

  • Page 13

    As a High-End DV Camera The AG-HVX200 can record in any of the 60i, 30p, 24p and 24pA (Advance) modes used by DVX100 series equipment. Further, thanks to the P2...

  • Page 14

    Side view (with LCD monitor open) Side view (with terminal cover removed) Top controls Rear view (including playback and thumbnail functions)

  • Page 15: Specifications

    Specifications GENERAL Supply Voltage: DC7.2V / 7.9V, Battery or DC Input Power Consumption: 11.6W (when viewfinder is used) 12.0W (when LCD monitor is used) 14.0W (Max) Operating Temperature: 32°F to +104°F (0°C to +40°C) Operating Humidity: 10% to 85% (no condensation) Weight: Approx.

  • Page 16

    P2 — BRINGING GREATER SPEED AND CREATIVITY TO THE CONTENT CREATORS PANASONIC BROADCAST & TELEVISION SYSTEMS COMPANY UNIT OF PANASONIC CORPORATION OF NORTH AMERICA www.panasonic.com/broadcast Executive Office: One Panasonic Way, 4E-7, Secaucus, NJ 07094 (201) 348-5300 EASTERN ZONE: One Panasonic Way 4E-7, Secaucus, NJ 07094...

This manual also for:

P2hd ag-hvx200
