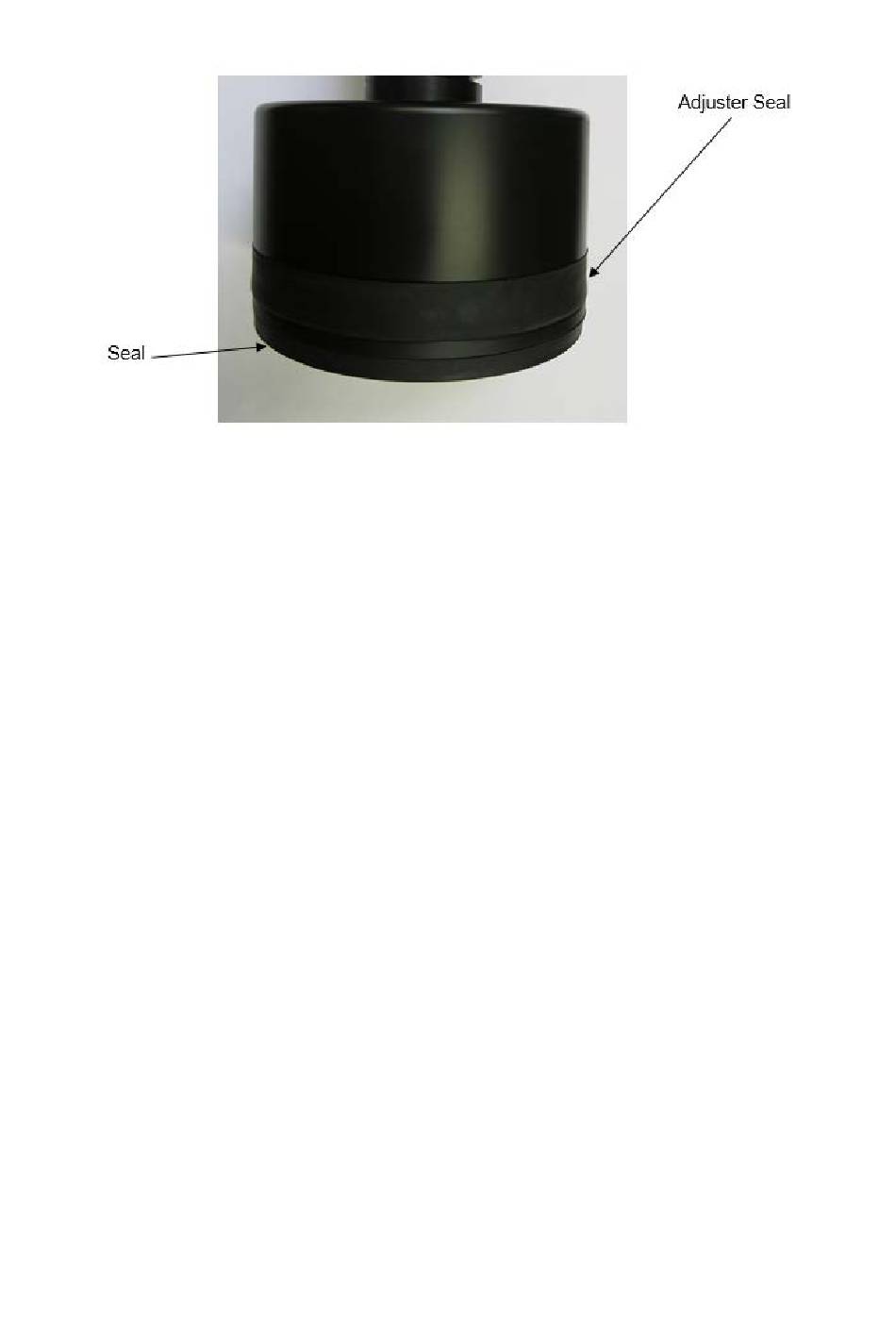

Figure 7 Photograph showing the location of the adjuster bed support

(6) Setting the Bed Height

1. Reinstate the adjuster unit in the acrylic tube, using the location pins and ensure the adjuster
seal is de-energized.
2. Replace the flange fixing bolts underneath the tube flange and tighten.
3. Partially energize the seal and turn the height adjust handles clockwise to set the required bed
height.
4. Check the column is level by placing the spirit level on the adjuster flange.
