HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only
for indoor use. It can be quickly installed and set up, is furnished with a LED (plus
allows connecting an external LED), and can operate up to 5 years from a battery.
HomeSiren operates within the Ajax security system, by connecting via the
protected
Jeweller
meters if there are no obstacles.
The siren is set up via a
smartphones. The user is noti�ed of all events through push noti�cations, SMS
messages and calls (if activated).
Operates only with
modules is not provided.

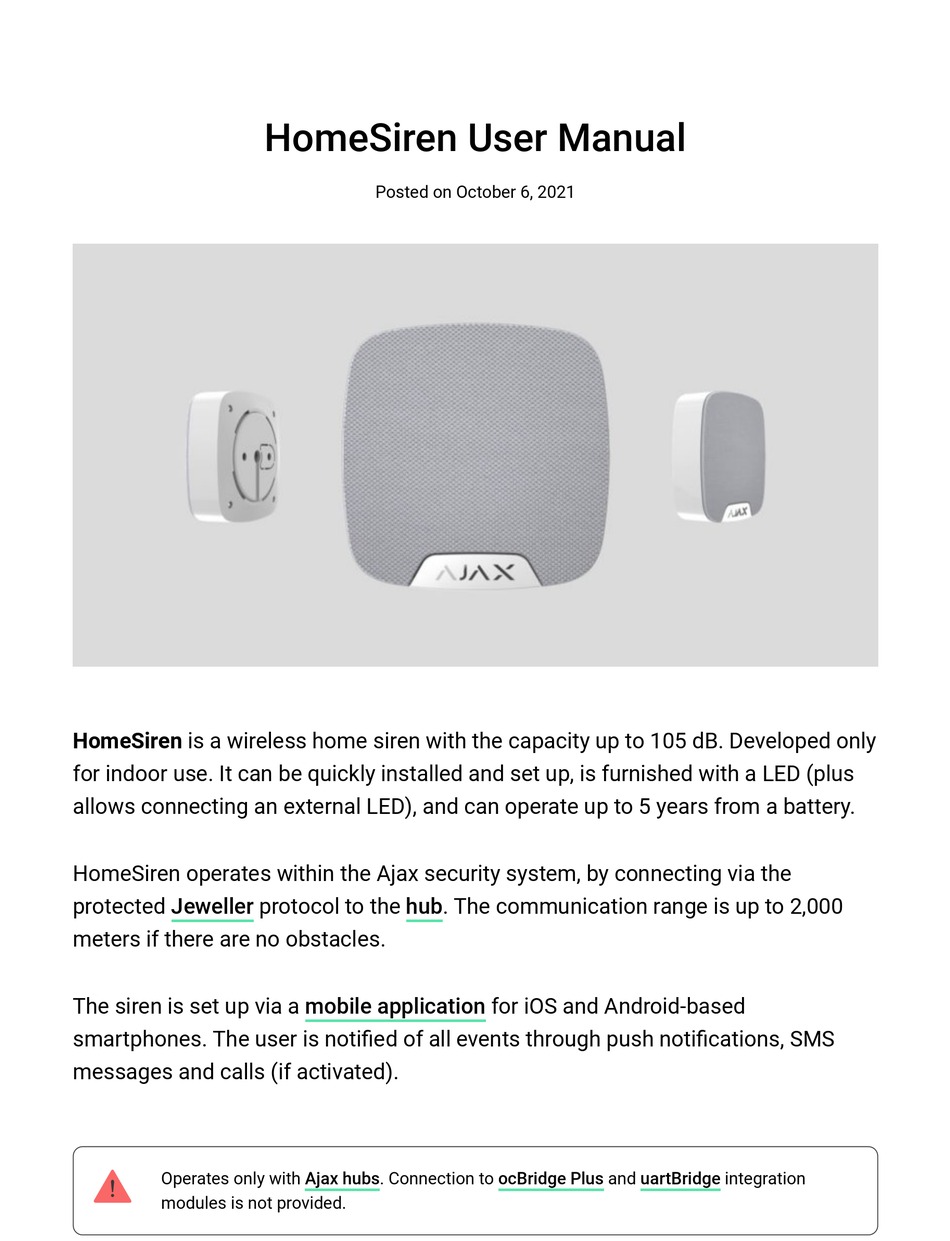

HomeSiren User Manual
Posted on October 6, 2021
protocol to the
hub
mobile application
Ajax hubs
. Connection to
. The communication range is up to 2,000
for iOS and Android-based
ocBridge Plus
and
uartBridge
integration
Advertisement
Related Manuals for AJAX Systems HomeSiren
Summary of Contents for AJAX Systems HomeSiren
- Page 1 HomeSiren User Manual Posted on October 6, 2021 HomeSiren is a wireless home siren with the capacity up to 105 dB. Developed only for indoor use. It can be quickly installed and set up, is furnished with a LED (plus allows connecting an external LED), and can operate up to 5 years from a battery.
-
Page 2: Functional Elements
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company. Buy home siren HomeSiren Functional elements 1. Light indicator 2. Siren buzzer covered with a fabric 3. SmartBracket attachment panel (perforated part is required for actuating the tamper in case of any attempt to tear off the siren from the surface) 4. - Page 3 Connecting the Siren to the hub The HomeSiren siren operates only with the Ajax security system. Up to 10 sirens may be connected to the Ajax hub Before starting connection: 1.
- Page 4 For the detection and interfacing to occur, the siren should be located within the coverage area of the wireless network of the hub (at a single protected object). If the device was already assigned to another hub, switch off HomeSiren and then perform the standard adding procedure.
- Page 5 States Siren states can be found in the Ajax app: 1. Go to the Devices tab. 2. Select HomeSiren from the list. Parameter Value Temperature of the device. Measured on the processor and changes gradually. Displayed in 1°C increment. Temperature Acceptable error between the value in the app and temperature at the installation site: 2–4°C...
- Page 6 Volume level in case of alarm • Muted — the siren does not sound when the alarm is raised • Quiet — 81 dB volume Alarm Volume • Loud — 93 dB volume • Very loud — 105 dB volume The volume level is measured 1 m away from the siren Duration of the alarm sound: from 3 to 180...
-
Page 7: Setting Up The Detector
Number of the device loop (zone) Setting Up the Detector To change the HomeSiren settings in the Ajax app: 1. Select the hub if you have several of them or if you are using the PRO app. 2. Go to the Devices tab. - Page 8 indication are related to alarms and events of this group • When attached to all groups, the siren and its Alarms in Group Mode indication are related to alarms and events of all groups in the system Regardless of the group selected, the siren will Night Mode respond to activation and alarms...
- Page 9 What is Volume Level Test Switching the siren to the Jeweller signal strength test mode. The test allows you to check the signal level between the hub and HomeSiren and determine the optimal installation location Jeweller Signal Strength Test What is Jeweller Signal Strength Test Switches the siren to the signal fade test mode (available in devices with �rmware version 3.50...
- Page 10 When this option is enabled, the siren warns of Arming/Disarming arming and disarming by lighting of the LED frame and by a short beep If enabled, the siren alerts you by backlighting the LED frame and a short beep when arming and disarming the system from the Night mode Night mode Activation/Deactivation What is Night mode...
- Page 11 • Quiet — 80 dB volume • Beep volume Loud — 93 dB volume • Very loud — 98 dB volume The volume level was measured 1 m away from the siren Setting up the processing of detector alarms Through the Ajax app, you can con�gure which detector alarms can activate the siren.
- Page 12 5. Enable the Alert with a siren if the hub or detector lid is open option. Setting the response to pressing the panic button in the Ajax The siren can respond to pressing the panic button in Ajax apps. Note that the panic button can be pressed even if the system is disarmed! For the siren to respond to pressing the panic button: 1.
- Page 13 The option functions as follows: 1. The system registers the alarm. 2. The siren plays an alarm (duration and volume depend on settings). 3. The siren LED and external LED (if connected) blinks twice (about once every 3 seconds) until the system is disarmed. Thanks to this feature, system users and security companies patrols can understand that the alarm has occurred.
- Page 14 Noti�cations are con�gured in two stages: setting up sirens and setting up opening detectors. Learn more about Chime HomeSiren with �rmware 5.55.1.0 and later supports this function. Siren settings 1. Go to the Devices menu.
- Page 15 7. Click Back to save the settings. 8. Repeat steps 2–7 for other sirens on which you want to enable the noti�cations. Detectors settings 1. Go to the Devices menu. 2. Select the detector. 3. Go to its settings by clicking the gear icon in the upper right corner.
-
Page 16: Performance Testing
settings Switching on the device LED lights up once LED will light up for 1 second, then blink three Switching off the device times LED lights up and goes out, then the siren Registration failed switches off Security system set in the armed mode Blinks once with a LED and emits a short sound (if the indication is activated) signal... - Page 17 Check the signal level at the installation location. The communication range is up to 2000 meters if there are no obstacles. Please consider it when choosing an installation place for HomeSiren. If the signal level is one division, we cannot guarantee stable operation of the security system.
- Page 18 The double-sided adhesive tape may be only used for temporary attachment of the siren. The tape will run dry in course of time, which may result in the falling and damage of the device. 2. Put the siren on the SmartBracket panel and turn it clockwise. When installing in the attachment panel, the tamper will switch and the siren will blink with a LED.
- Page 19 Outlet power supply: 3 V, 10 mA. Siren Maintenance and Battery Replacement Check the operational capability of the HomeSiren on a regular basis. Clean the siren body from dust, spider web and other contaminations as they appear. Use soft dry napkin suitable for equipment maintenance.
- Page 20 Radio signal modulation GFSK Radio signal range Up to 2,000 m (any obstacles absent) Battery supply 2 × CR123A, 3 V Battery life Up to 5 years Socket for connecting Yes (power supply 3 V, 10 mA) an external light indicator Body protection level IP50 Installation method...
-
Page 21: Warranty
5. Installation Kit 6. Quick Start Guide Warranty Warranty for the “AJAX SYSTEMS MANUFACTURING” LIMITED LIABILITY COMPANY products is valid for 2 years after the purchase and does not apply to the pre-installed battery. If the device does not work correctly, you should �rst contact the support service —...
