HomeSiren S Jeweller user manual

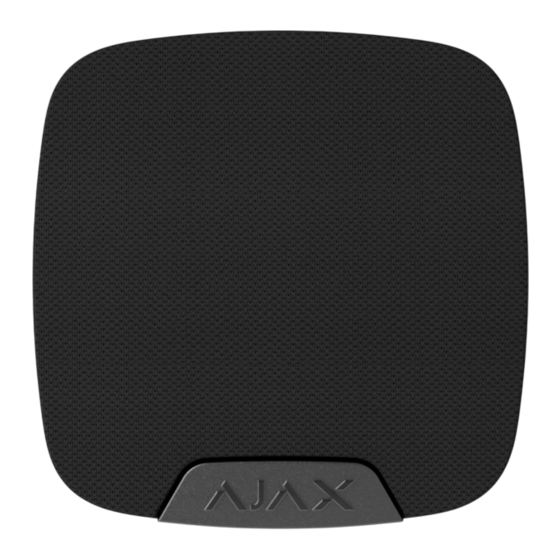

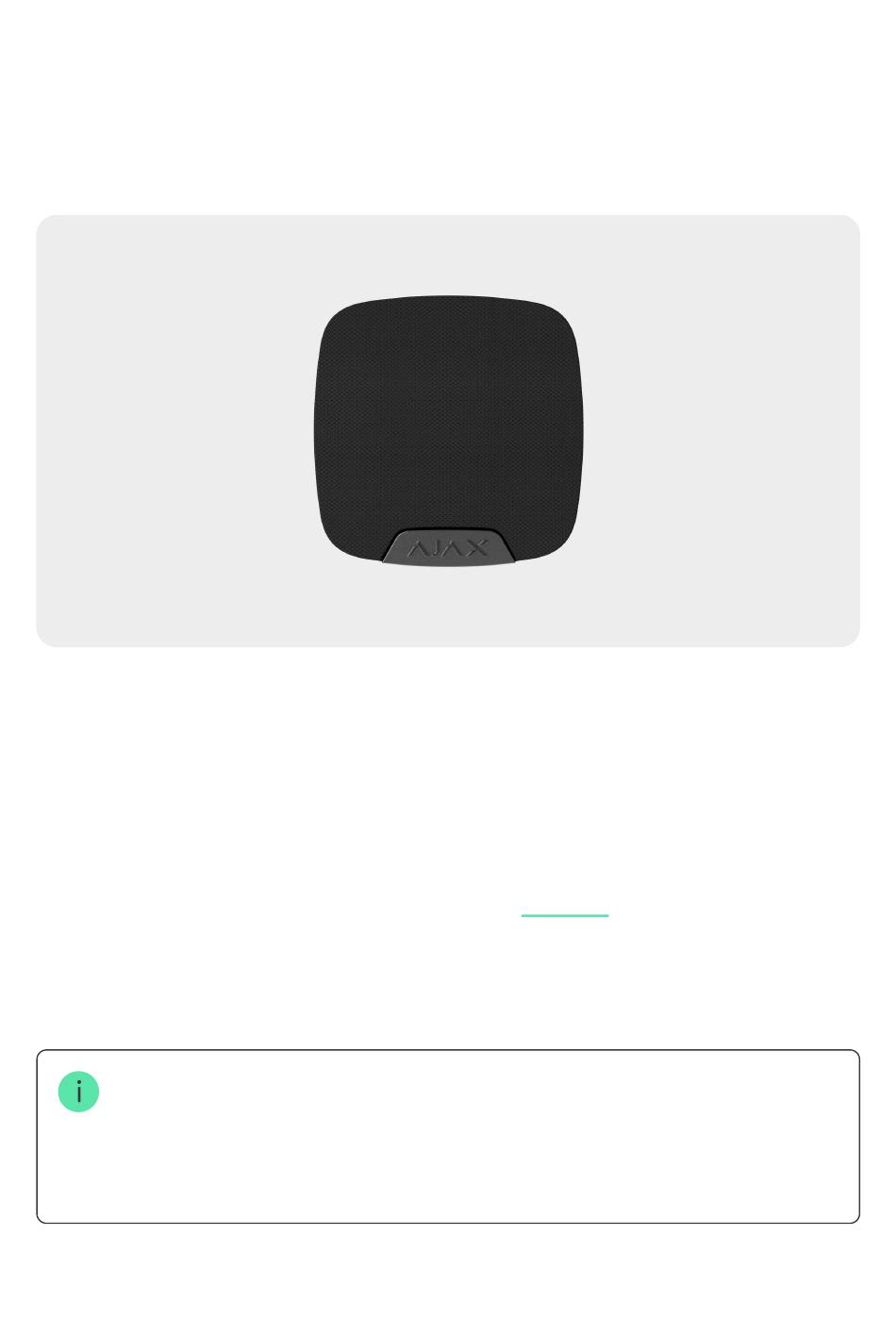

HomeSiren S is a wireless siren for indoor installation. The device notifies on
events and alarms with an LED indicator and sound volume up to 105 dB.
Supports connection of an additional wired LED. Can operate for up to 5 years
with a pre-installed battery.
HomeSiren S communicates with a hub via the
transmit alarms and events. The communication range in an open space is up to
2,000 meters.
This product line is developed for projects. Only accredited Ajax Systems partners can
sell install and administer Superior products.
Superior, Fibra, and Baseline product lines are mutually compatible. This opens up
numerous possibilities for building systems of any configuration.
Functional elements
Updated June 25, 2024
Jeweller
secure radio protocol to

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HomeSiren S Jeweller and is the answer not in the manual?

Questions and answers

Related Manuals for AJAX Systems HomeSiren S Jeweller

Summary of Contents for AJAX Systems HomeSiren S Jeweller

  • Page 1 The communication range in an open space is up to 2,000 meters. This product line is developed for projects. Only accredited Ajax Systems partners can sell install and administer Superior products. Superior, Fibra, and Baseline product lines are mutually compatible. This opens up numerous possibilities for building systems of any configuration.
  • Page 2 1. LED indicator. 2. Siren buzzer covered with a fabric. 3. SmartBracket attachment panel. Do not break it off. The perforated part is needed for a tamper triggering in case of any attempt to detach the siren from the surface. 4.

  • Page 3: Operating Principle

    Hub 2 (4G) Hub 2 Plus Hub Hybrid (2G) Hub Hybrid (4G) Operating Principle 00:00 00:12 The device is equipped with a loud buzzer – the sound of the siren can be heard from afar. If installed correctly, it would be hard for the intruder to dismount and deactivate the actuated siren.
  • Page 4 3. Chime. Sirens with a special sound inform about the triggering of the opening detectors when the system is disarmed. The feature is used, for example, in stores, to notify employees that someone has entered the building. 4. Notifies of triggering until the system is disarmed. The siren’s LED and external LED (if connected) flashes after the sound signal.

  • Page 5: Adding To The System

    The ID and the number of the device can be found in its states in the Ajax app Adding to the system HomeSiren S is incompatible with and third-party security control panels. To connect HomeSiren S to the hub, the siren must be located at the same secured facility as the system (within the range of the hub radio network).
  • Page 6 . Ensure the space is disarmed, and the hub is not starting an update by checking statuses in the Ajax app. This product line is developed for projects. Only accredited Ajax Systems partners can install, and administer Superior products. Connecting to the hub 1.
  • Page 7 4. Press Add. 5. Switch on the siren by holding the power button for 3 seconds. If the connection fails, turn the siren off and try again in 5 seconds. Note that if the maximum number of devices has already been added to the hub ( depending on the hub model ), you will be notified when you try to add a new one.
  • Page 8 When a malfunction is detected, the Ajax app displays a malfunction counter on the device icon. All malfunctions are shown in the siren states. Fields with malfunctions will be highlighted in red. A malfunction is displayed if: The siren temperature is outside acceptable limits. The siren enclosure is open (tamper is triggered).
  • Page 9 The icons display some siren states. To access them: 1. Sign in to the Ajax app 2. Select the hub. 3. Go to the Devices tab. Icon Meaning Jeweller signal strength. Displays the signal strength between the hub and the siren.
  • Page 10 Learn more Siren has tamper alarms permanently deactivated. Learn more Siren is deactivated until the first event of disarming the system. Learn more Siren has tamper alarms deactivated until the first event of disarming the system. Learn more The device was not transferred to the new hub. Learn more States The states include information about the device and its operating parameters.
  • Page 11 1. Go to the Devices tab. 2. Select HomeSiren S from the list. Parameter Value Clicking on opens the devices malfunctions list. Malfunction The field is displayed if a malfunction is detected. The acceptable error between the value in the app and the temperature at the installation site: 2°C.
  • Page 12 Radio signal range extender connection status. radio Displayed when the siren works via ReX range extender name signal range extender Battery level of the device. Displayed as a percentage. Battery Charge How battery charge is displayed in Ajax apps The status of the siren tamper that responds to detachment or opening of the device enclosure: Open —...
  • Page 13 Armed — the siren flashes only when the system is in Armed mode. Always — the siren flashes regardless of the security mode. Learn more Beeps Settings When enabled, the siren notifies about arming Arming/Disarming and disarming by flashing the LED and a short beep.
  • Page 14 Entirely — the siren is entirely excluded from the operation of the system. The device does not execute system commands and does not report alarms or other events. Learn more Shows the status of the siren one-time deactivation setting: No — the siren operates in the normal mode. Lid only —...
  • Page 15 To change the HomeSiren S settings in the Ajax app: 1. Go to the Devices tab. 2. Select HomeSiren S from the list. 3. Go to Settings by clicking on the gear icon 4. Set the required parameters. 5. Click Back to save the new settings. Setting Value Name of the siren.
  • Page 16 Selecting the group to which the siren is assigned. You can select one or all groups: If the siren is assigned to a certain group, it notifies about alarms and events of this group only. If the siren is assigned to all groups, it notifies about alarms and events of all Alarms in Group Mode groups in the system.
  • Page 17 Learn more Opens the siren beeps settings. A detailed description of the settings is Beeps Settings available below Switches the siren to the Jeweller signal strength test mode. Jeweller Signal Strength Test Learn more Switches the siren to the volume test mode. Volume Test Learn more Switches the siren to the signal attenuation test...

  • Page 18: Beep Settings

    Three options are available: No — the siren operates in the normal mode. Lid only — notifications on the siren tamper triggering are disabled until the first event of disarming the system. Entirely — the siren is entirely excluded from the operation of the system until the first event of disarming the system.
  • Page 19 Mutes the annunciation beeps once the user starts to enter a passcode on the keypad. This feature allows users to focus on the system disarming. Beep on delays When enabled, the siren beeps to signal about a delay when entering. Entry Delays Learn more When enabled, the siren beeps to signal about a...
  • Page 20 Last 5 seconds Last 10 seconds Last 15 seconds Available for HomeSiren S Jeweller with firmware versions from 5.60.4.0 to 6.0.0.0 and from 6.56.3.37 or higher, operating with hubs with OS Malevich 2.19 or higher. Fast beep on Exit delay expiration Notifies the user that the Delay When Leaving time is running out.
  • Page 21 The volume level is measured 1 m away from the siren. Setting the siren response to device alarms In Ajax apps, you can separately configure the siren’s reaction to the alarms of each detector in the system. The function is useful if you do not need to activate the siren in case of the alarm of a specific device.
  • Page 22 2. Go to the Devices tab. 3. Select the hub and go to its Settings 4. Select the Service menu. 5. Go to the section Sounds and Alerts. . Enable the If lid of hub or any detector is open toggle. 7.
  • Page 23 00:00 00:02 The siren can inform about triggering in the armed system by means of LED indication. The option functions as follows: 1. The system registers the alarm. 2. The siren activates an alarm signal. The duration and volume of the signal depend on the device settings 3.
  • Page 24 3. Select the devices for Specific alert on Alarm Cancellation and Specific alert on Alarm Abort options. 4. Click Back to apply the settings. Features are available for HomeSiren S Jeweller with firmware versions from 5.60.4.0 to 6.0.0.0 and from 6.56.3.37 or higher...
  • Page 25 Learn more about ANSI/SIA CP-01-2019 system requirements * HomeSiren S Jeweller is not certified according to ANSI/SIA CP-01-2019. How to set Chime If Chime on opening is enabled and the system is disarmed, the sirens notify you with a short beep if the opening detectors are triggered. The feature is used, for example, in stores, to notify employees that someone has entered the building.

  • Page 26: Functionality Testing

    then blink three times. LED lights up and goes out, Registration failed then the siren switches off. If Beep on Armed Mode Change and LED Indication are enabled. Flashes once with a LED and The system is armed emits a short beep. The volume of the sound signal depends on the Beep Volume settings.

  • Page 27: Device Placement

    3. Select HomeSiren S from the list. 4. Go to Settings 5. Select a test: Jeweller Signal Strength Test Volume Test Signal Attenuation Test . Run the test. Device placement The device is designed for indoor use only. When choosing where to place HomeSiren S, consider the parameters that affect its operation: Jeweller signal strength.

  • Page 28: Installation

    Devices tab indicates the signal strength: Three bars — excellent signal strength. Two bars — good signal strength. One bar — low signal strength, stable operation is not guaranteed. Crossed out icon — no signal. Check the Jeweller signal strength before final installation. With a signal strength of one or zero bars, we do not guarantee stable operation of the device.
  • Page 29 Before installing HomeSiren S, ensure that you have selected the optimal location that complies with the requirements of this manual. To mount a siren: 1. Remove the SmartBracket mounting panel from the siren by turning it counterclockwise. Unscrew the holding screw first. 2.

  • Page 30: External Led Connection

    guarantee stable operation of the device. Consider relocating the device as repositioning even by 20 cm can significantly improve the signal strength. If there is still poor or unstable signal after the relocation, use a radio signal range extender 5. Run the Volume Test .

  • Page 31: Maintenance

    Setup in compliance with EN requirements Setup in compliance with ANSI/SIA CP-01-2019 requirements Warranty Warranty for the Limited Liability Company “Ajax Systems Manufacturing” products is valid for 2 years after the purchase. If the device does not function correctly, please contact the Ajax Technical...
  • Page 32 Warranty obligations User agreement Contact Technical Support: e-mail Telegram Manufactured by “AS Manufacturing” LLC Subscribe to the newsletter about safe life. No spam Email Subscribe...
