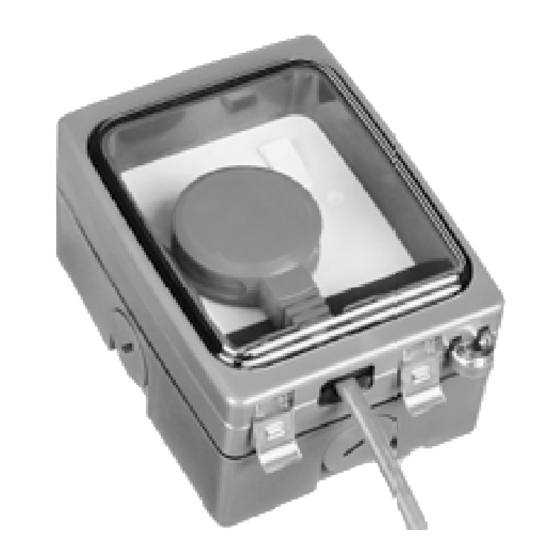

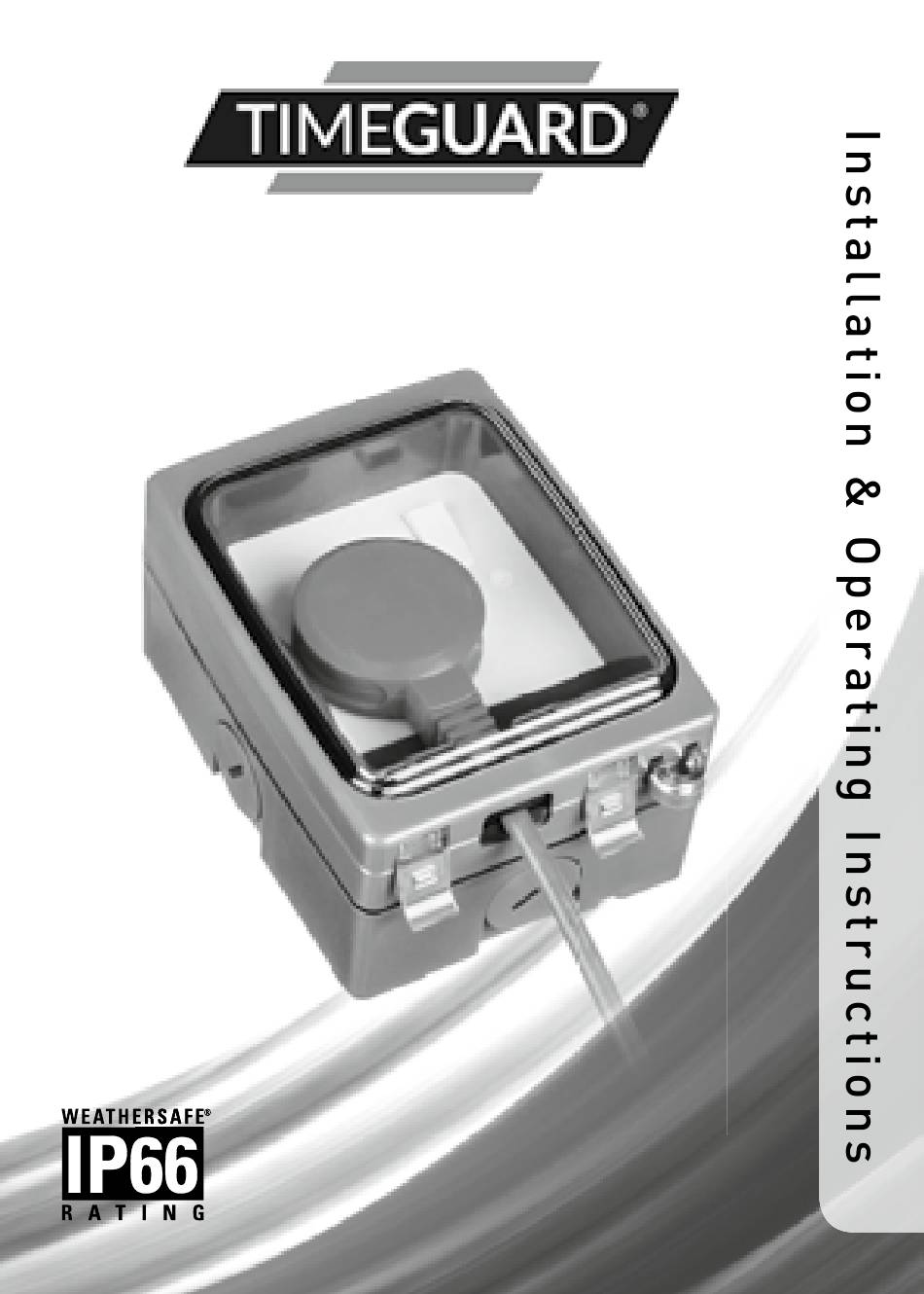

- Page 1 Weathersafe Vision...
- Page 2 IP66 Products covered by these instructions TGVL01 One gang two way switch 10AX TGVL02 Two gang two way switch 10AX TGVL03 One gang bell push TGVL05 One gang double pole switch 20A TGV101N One gang socket switched 13A TGV201N Two gang socket switched 13A TGV104N One gang RCD spur TGV204N...
-
Page 3: Installation Instructions
The Weathersafe Vision range complies with the following standards. • IP66 rating: BS EN 60529. • Socket outlets: BS 1363. • RCD units: BS 7288. • Fused connection units: BS 1363. • Switches: BS EN 60669. • All products in the range comply with the low voltage directive LV 2006/95/EC and where relevant the EMC directive 2004/108/EC. - Page 4 Fig. 1 – Rear Box (double) 4x fixing holes for no. 8 wood screws Drain feature, use only lower if required Front cover fixing holes If conduit is to be used then please follow the instructions below: • The drain feature must be drilled out using a 5mm drill if top or side entry conduit is used.
- Page 5 Operating Instructions Fig. 2 – Single and double boxes – side view of bottom Snaps Snaps Push here and lift up Push here and lift up • The lid may be opened by pulling the tab(s) on the front to release the snaps and then lifting the lid (see fig.2).
- Page 6 Cleaning • Care should be taken when cleaning this product. • Inside the lid should only be wiped with a clean dry cloth. • The outside can be cleaned with mild detergent. • Solvent based cleaners should not be used. •...
- Page 7 To use: After satisfactorily testing the RCD, any connected appliance may be switched on, and used in the confidence that the user is protected from electric shock by rapid disconnection of supply. Fig. 4 – Rear of Front Panel (TGV104N) Live and Neutral Connections for Supply Live and Neutral Connections for Load (Transposing Load and Supply Connections will cause...
- Page 8 Safety issues to remember • Electricity can be dangerous, use of an RCD should not be regarded as a substitute for basic electrical safety precautions. • Always test the RCD before use. If the test procedure is not completed satisfactorily or an appliance continues to trip the RCD seek professional advice and switch off the appliance.
- Page 9 Weathersafe Vision Products with switches (TGVL01, TGVL02, TGVL03 and TGVL05) To take switch apart first remove switch rocker (actuator). This may be done by inserting a flat blade screwdriver between the case and rocker as shown in fig. 7 and levering the rocker off at its pivot point.
- Page 10 Fig. 6 – TGVL01, TGVL02, TGVL03 Earth terminal positions. One of these two terminals marked earth can be used as a neutral terminal.
-
Page 11: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance... - Page 12 For assistance with the product please contact: HELPLINE 020 8450 0515 or email helpline @ timeguard.com For a product brochure please contact: Timeguard Limited. Victory Park, 400 Edgware Road, London NW2 6ND Sales Offi ce: 020 8452 1112 or email csc @ timeguard.com...
