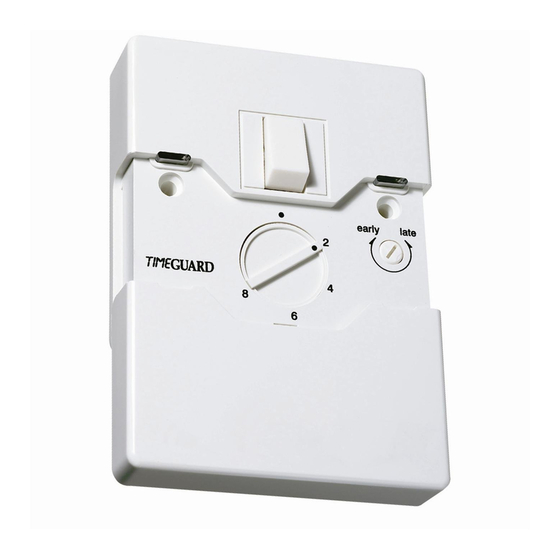

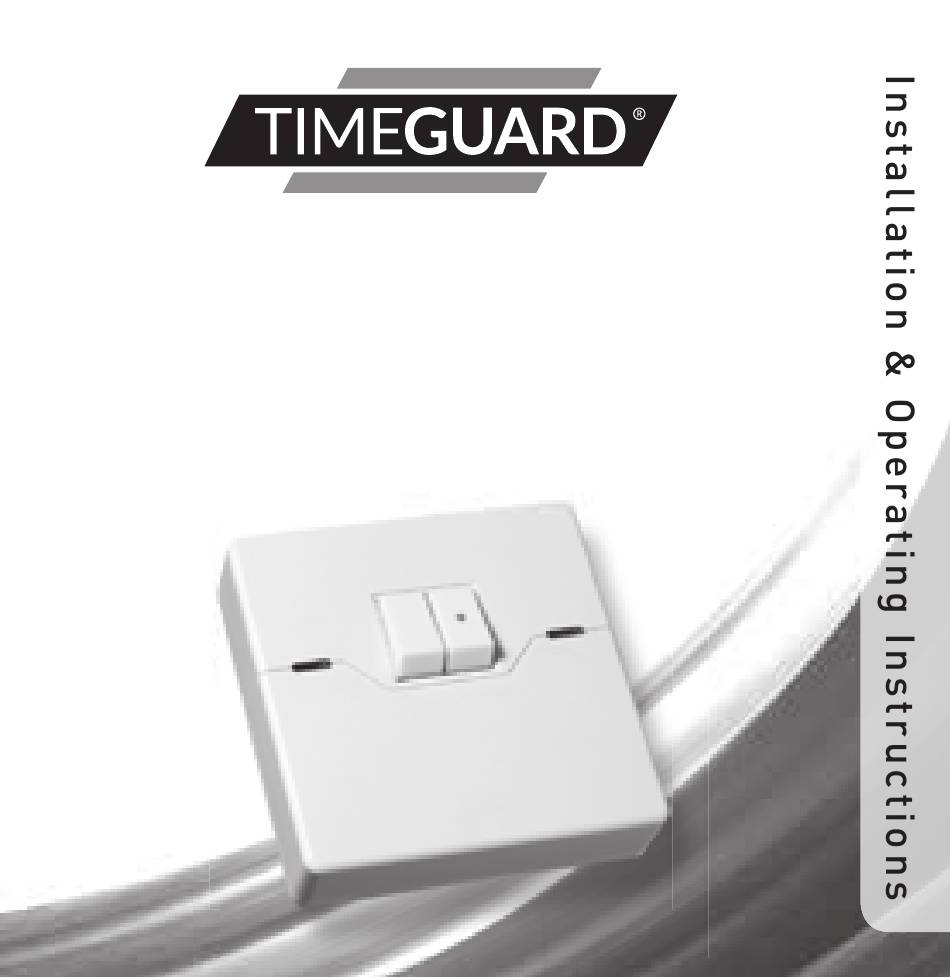

- Page 1 Programmable Security Light Switch Model: ZV210 (Single) Model: ZV215 (Double)
-
Page 2: General Information
1. General Information These instructions should be read carefully and retained for further reference and maintenance. 2. Safety • Before installation or maintenance, ensure the mains supply to the light switch is switched off and the circuit supply fuses are removed or the circuit breaker turned off. -
Page 3: Technical Specifications
Low Energy CFL: 20W LED Lighting: 20W The LED switching capabilities of this product can be increased to 200W by the addition of the Timeguard ZV900 Automatic switch load controller – sold separately • Minimum Depth of Wall Box: 25mm •... - Page 4 As such, some LED and CFL lamps may glow or flash whilst this product is in the “Off” status. This glow/flash can be eliminated by adding the Timeguard ZV900 Automatic switch load controller to the circuit. The ZV900 is sold separately.
- Page 5 Manual ON/OFF switch (Doubles as Right Hand Security Switch Security Switch on ZV210) (ZV215 only) LED window (lights when set in security Light sensing mode) window Combined early late security switch Light level and hours on adjuster adjuster Concealed Sliding cover...
- Page 6 Normal Switch ON/OFF and ON/OFF and Two Way (L1) Two Way (L1) Common Common (COM) (COM) Two Way Two Way only (L2) only (L2) ZV210 Single Security Light Switch ON/OFF and Two Way (L1) Common (COM) Two Way only (L2)
-
Page 7: Security Function
5. Security Function early late Figure 1 ZV210 Switch Open Figure 2 Switch Closed... - Page 8 Testing • Ensure that the light switch is in the ‘OFF’ position. • Slide down the front of the cover to expose the security controls (See Figure 1). • Turn the light level adjuster fully towards the early symbol, and then turn the hours on dial clockwise until the ‘LED window’...
- Page 9 Setting up • Ensure that the light switch is in the ‘OFF’ position. • Slide down the front of the cover to expose the security controls. • Turn the hours on dial to indicate how many hours you wish the light to remain on for, and check the ‘LED window’...
- Page 10 Adjustment • If you find that the light switches on when it is too dark, turn the light level adjuster towards early and if the light is in operation when it is too light turn the adjuster too late. Notes: •...
-
Page 11: Year Guarantee
020 8450 0515. Note: A proof of purchase is required in all cases. For all eligible replacements (where agreed by Timeguard) the customer is responsible for all shipping/postage charges outside of the UK. All shipping costs are to be paid in advance... - Page 12 If you experience problems, do not immediately return the unit to the store. Telephone the Timeguard Customer Helpline; HELPLINE 020 8450 0515 or email helpline @ timeguard.com Qualified Customer Support Co-ordinators will be on-line to assist in resolving your query.
