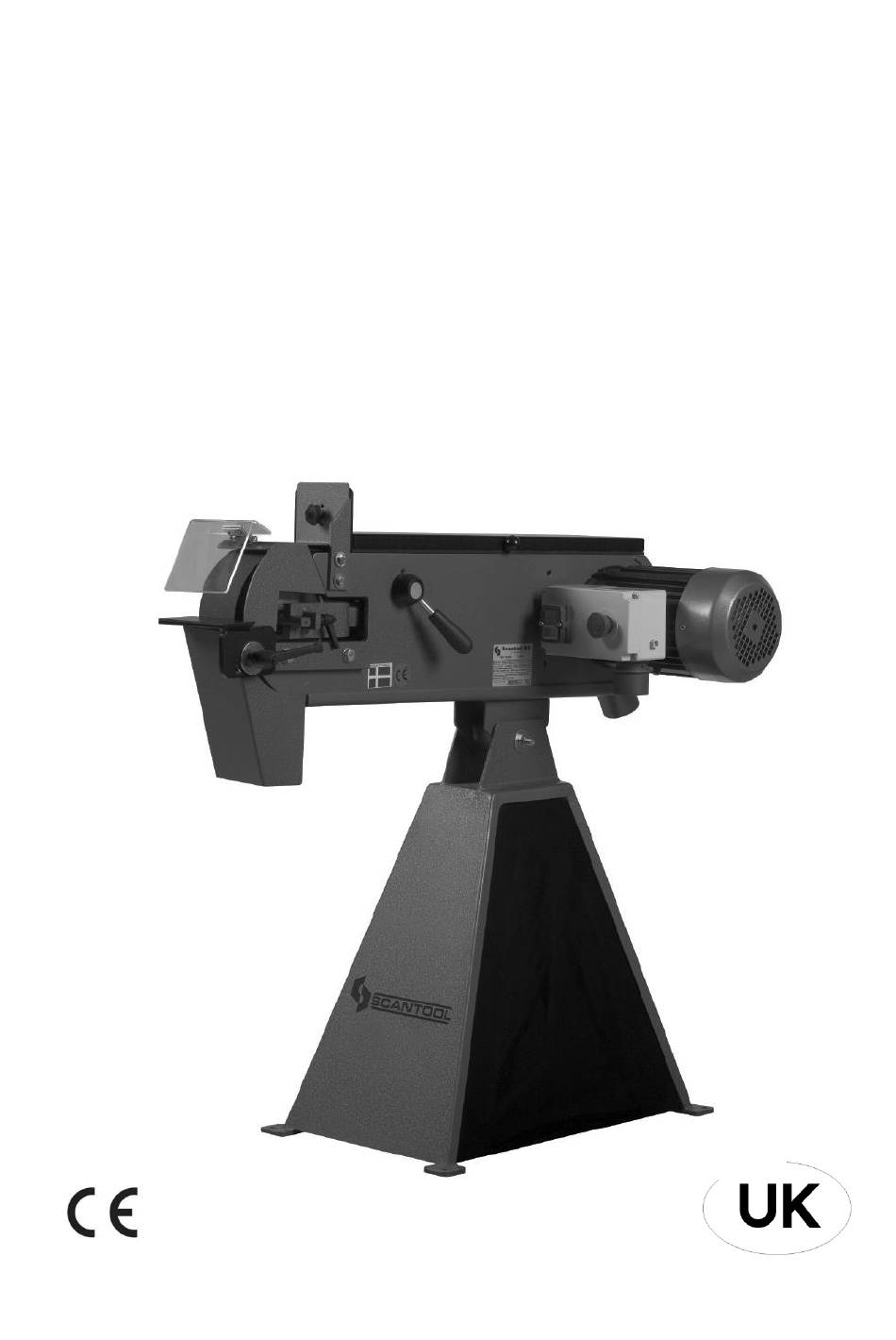

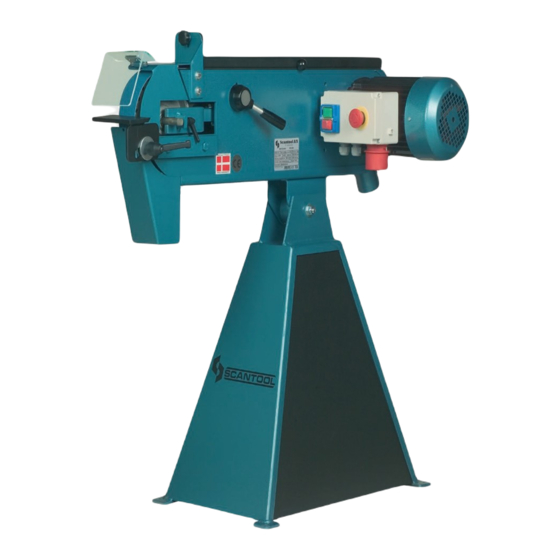

- Page 1 Manual SCANTOOL Belt Grinding Machines 50-75-100-150...
- Page 2 READ THIS MANUAL BEFORE USE...
- Page 3 We hereby declare that the concept and manufacturing of the machine mentioned below meets all safety and health prescriptions according mentioned below EU regulations. In case of technical modifications without permission this declaration is void. MANUFACTURER: SCANTOOL A/S Industrivej 3-9 9640 Brovst DESCRIPTION & IDENTIFICATION OF THE MACHINE:...
-
Page 4: Table Of Contents
Table of Contents 1. TRANSPORT & HANDLING 1.1 T RANSPORT 1.2 H ANDLING 1.3 P LACING 2. DIRECTIONS 2.1 O PERATION 2.2 S AFETY RULES FOR STATIONARY POWER TOOLS 2.3 M AINTENANCE 3. SPARE PARTS LIST 3.1 D RAWING OF RINDING ACHINE WITHOUT XHAUST SYSTEM... -
Page 5: Transport & Handling
1. Transport & Handling 1.1 Transport The SCANTOOL belt grinding machine is packed in protective wrapping and delivered on a pallet with the following measures: 120 x 80 x 120 cm 1.2 Handling The machine can easily be transported on the pallet on which it is delivered. -
Page 6: Directions
2. Directions 2.1 Operation After adjustment and connection the belt grinding machine is ready for use. The grinding can take place by the contact wheel (E) or on the surface grinding table by opening the cover (H). The lifetime of a new belt is prolonged if the grinding starts with a light pressure. - Page 7 9. Don’t force tool. It will do the job better and be 8. Make workshop kid proof with padlocks, safer at the rate for master switches, or which it was designed. by removing starter keys. 10. Use right tool. 11. Wear proper apparel. Wear no loose clothing, Don’t force tool or gloves, neckties, rings, attachment to do...
-
Page 8: Maintenance
2.3 Maintenance Empty the spark box with regular intervals and control if the suction canals need a cleaning. The dust bag has to be emptied after use. The contact wheel should be replaced when the edges have been worn round or the tyre has been damaged. The graphite pad on the surface grinding table is changed as required. -
Page 9: Spare Parts List
3. Spare Parts List 3.1 Drawing of Belt Grinding Machine without Exhaust system. Fig.: 3.1 Split drawing of belt grinder with no exhaust... - Page 10 3.2 Spare Parts List for Belt Grinding Machine without Exhaust System When ordering spare parts: Please state machine type and serial number together with item number and description of the part according to this list. Part Number Item No. Description 50-2000 75-2000 100-2000 150-2000 Belt release handle...
- Page 11 When ordering of spare parts please state machine type and serial number together with item number and the description of the part according to this list. Part Number Item No. Description 75-2250 75-2500 150-2500 Belt release handle 0102267 0102267 0102267 Belt guard 1055774 1055775...
-
Page 12: Belt Grindingm
3.3 Belt Grinding Machine with Exhaust System Fig.: 3.2 Split drawing of belt grinder with exhaust... - Page 13 3.4 Spare parts List for Belt Grinding Machine with Exhaust System When ordering of spare parts please state machine type and serial number together with item number and description of the part according to this list. Part Number Item No. Description 50X-2000 75X-2000...
- Page 14 Spark box with exhaust system 1055643 0102224 0102324 0102524 Star M6 0233807 0233807 0233807 0233807 Rest for surface grinding 1055679 1055680 1055681 1055682 When ordering of spare parts please state machine type and serial number together with item number and description of the part according to this list. Part Number Item No.
-
Page 15: Technical Data
130 kg *5,5 HP motor available. The noise level for SCANTOOL belt grinding machine has been measured to 80 dB (A) according to the measuring instruction in the note 561 from the Work Inspection Department on device of technical aids. -
Page 16: Circuit Diagrams
75-2000 830-970 75-2250 1050 830-970 830-970 75-2500 1180 100-2000 830-970 150-2000 830-970 830-970 150-2500 1180 4.3 Circuit diagrams Belt grinding machines can be connected to 3 x 400/440 V, 50/60 cycles and to 3 x 230 V 50/60 cycles. There are three kinds of circuit diagrams: 1. - Page 17 Fig. 4.3.2.: Diagram of belt grinder with exhaust motor. Fig.: 4.3.3 Diagram of belt grinder with brake and no exhaust motor.
- Page 18 Fig.: 4.3.4 Diagram of belt grinder with brake and exhaust motor. Fig.: 4.3.5 Diagram of belt grinder with two velocities and no exhaust motor.
- Page 19 Fig.: 4.3.6 Diagram of belt grinder with two velocities and no exhaust motor.
-
Page 20: Pressure Diagram
4.4 Pressure diagram The fan is especially developed for belt grinders. It provides a pressure of up to 1300 Pa and an air flow from 0 to 650 m³/hour. It is manufactured in 1,5 mm sheet steel and is welded. Available in 3x400V and 50/60Hz, 2800 revolutions per min. The ventilator is encapsulated in class IP54. -
Page 21: Warranty
5. Warranty If within 2 year of purchase this machine supplied by Scantool A/S becomes defective due to faulty materials or workmanship we guarantee to repair or replace the machine or defective part or parts free of charge provided that: The product is returned complete to one of our Service Branches or Official Service Agents.
