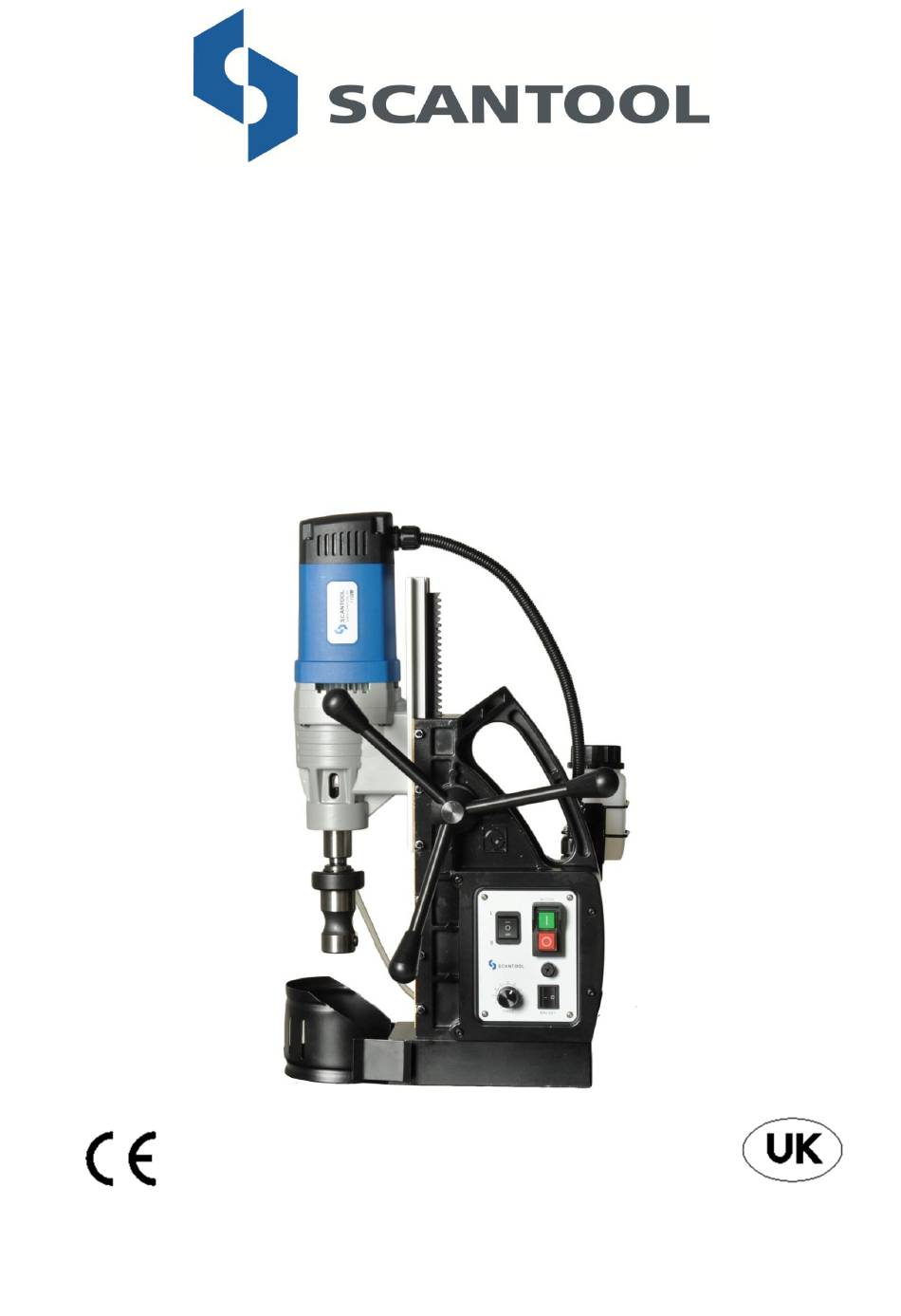

- Page 1 SAFETY INSTRUCTIONS AND OPERATOR’S MANUAL FOR DRILLING MACHINE Industrivej 3-9, 9460 Brovst, Denmark Tel. +45 98 23 60 88 - Fax +45 98 23 61 44 E-mail info@scantool-group.dk - Website www.scantool-group.com...
-
Page 2: Table Of Contents
MODEL MB-45 CONTENT SAFETY INSTRUCTION................3 1. General information................... 3 2. General safety advice................3 START UP AND OPERATION..............6 1. Cutters and optional equipment features........... 6 2. Machine start up..................9 3. Operating instructions................16 III. ADJUSTMENT, MAINTENANCE AND SERVICE........18 TECHNICAL DATA.................. -
Page 3: Safety Instruction
MODEL MB-45 I. SAFETY INSTRUCTION Drilling machine on electromagnetic base should be used only for the purpose of appropriation. Using machine incompatibly purpose might be threaten another people. 1. GENERAL INFORMATION Portable drilling machines with electromagnetic bases are fast becoming very universal power tools. - Page 4 MODEL MB-45 In all cases always use a safety chain/strap /see drawing 1/. The safety strap mustn't be loose! To avoid this situation the safety strap should be wrapped around the element it is hooked to. Do not use the machine in explosion hazard zones.
- Page 5 MODEL MB-45 14) Use tools recommended in Operator’s Manual only. 15) After use, always clean drilling machine from metal chips and coolant. 16) Always unplug machine from power supply during any work on the machine. 17) In the case that the machine falls on a hard surface, from a height, is wet or is...
-
Page 6: Start Up And Operation
MODEL MB-45 II. START UP AND OPERATION 1. Cutters and optional equipment features This drilling machine’s spindle has a socket with Morse taper which make possible to use twists drill (if it necessary with using drill sleeves) or milling cutters by using AMT Arbor for fixing them in socket spindle taper [Drawing 2]. - Page 7 MODEL MB-45 Installing and uninstalling the arbor The arbor installation and uninstallation should be carried out when the machine is turned off and disconnected from the power grid! Installing the arbor: a) Clean the inside of the spindle using a cotton cloth,...
- Page 8 MODEL MB-45 1.2 Installing and uninstalling the milling cutter Milling cutter installation and uninstallation should be carried out when the machine is turned off and disconnected from the power grid! Installing the milling cutter: 1. Raise the drive and the slide (2) up using the lever (3);...
-
Page 9: Machine Start Up
MODEL MB-45 2. Machine start up The machine is supplied in a hard plastic suit with complete standard equipment. MODEL MB-45 comes with standard equipment set which consists of: Hard plastic suitcase Drilling machine Arbor MT-2 19.05mm Weldon shaft w/internal cooling ... - Page 10 MODEL MB-45 2.3 Cutting - Select the right speed for the tool you intend to use (see the speeds chart in this manual – paragraph IV no.1). Cooling and lubricant fluid commercially available in concentrated are recommended using for cooling twist drill and annular cutter.
- Page 11 MODEL MB-45 2.4 Types of a ground material As shown on the graphs [Drawing 4] magnetic clamping force of the electromagnetic base to the ferromagnetic ground depends on its magnetic properties. Steel with increased carbon content and some other alloying ingredients has lower magnetic permeability, what causes a decrease in the clamping force.
- Page 12 MODEL MB-45 Operator’s manual for Drilling Machine - 12 - MODEL MB-45...
- Page 13 MODEL MB-45 Operator’s manual for Drilling Machine - 13 - MODEL MB-45...
- Page 14 MODEL MB-45 2.7 Installing and uninstalling the cooling system Installing the cooling system: a) Place the machine in the vertical position, b) Slide the drive and the slider (1) up using lever (2), c) Coolant bracket (7) with cooling unit (6) on screws (8) located to the side of the slider, d) Connect the cooling conduit ending (3) with the coolant coupling (4) found in the cooling ring (5).
- Page 15 MODEL MB-45 2.8 Canceling clearance The drive and the slider can be slid up and down smoothly using the lever (1) To cancel the clearance, tighten the screws (2-3) until noticeable resistance is felt. When the inner screw in this position and blocked with a hexagonal key, tighten counter nut.
-
Page 16: Operating Instructions
MODEL MB-45 Operating instructions The machine is supplied in a hard plastic suitcase. Steel elements of the drilling machine are protected for transit and storing with grease film. Before first start up of the machine all grease should be removed. Before each use all spoke handles should be screwed into pinion. -
Page 17: Adjustment, Maintenance And Service
MODEL MB-45 To move machine into next drilling spot, stop the motor as described above and push the mains switch MAGNET to the position “O”. READ THE WHOLE INSTRUCTIONS MANUAL BEFORE ATTEMPTING TO START UP III. ADJUSTMENT, MAINTENANCE AND SERVICE ... - Page 18 MODEL MB-45 Caution: In the case that the machine falls on a hard surface, from a height, is wet or is subjected to other unfortunate events that could affect its technical state - work should be terminated immediately and the machine should be sent to service for inspection as soon as possible.
-
Page 19: Technical Data
MODEL MB-45 IV. TECHNICAL DATA Power supply 220V - 50-60 Hz Motor power 1400 W Max. twist drill diameter 23mm Max. annular drilling diameter 45mm Max. milling depth 55mm Max. tapping diameter M12mm Standard adhesive force of electromagnet 13000N (MAX) - Page 20 MODEL MB-45 Replacement of motor brushes: For the MODEL MB-45 drill, the state of the carbon brushes should be monitored every 100 working hours. Replacement of motor brushes should take place when the machine is turned off and the power cable is disconnected from the power grid! 1.
- Page 21 MODEL MB-45 1. Relationship between machine speed and cutter diameter – parameters Relationship between machine speed and cutter diameter The cutter diameter Rotary speed [rpm] [inch] [mm] 0,47÷1,4 12÷35 1,41÷1,97 36÷50 Relationship between machine speed and twist drill diameter The twist drill diameter...
-
Page 22: Electrical Diagram
MODEL MB-45 ELECTRICAL DIAGRAM Operator’s manual for Drilling Machine - 22 - MODEL MB-45... -
Page 23: Drawings And Spare Parts Lists
MODEL MB-45 VI. DRAWINGS AND SPARE PARTS LIST Operator’s manual for Drilling Machine - 23 - MODEL MB-45... - Page 24 MODEL MB-45 Parts Name Q'TY Lifting Board Hex Socket Screws M6*18 Rack hose coupler back panel screw stainless steel bolt M3*6 magnetic disk hexagon screw M3*6 cuprum plate Hex Socket Screws M5*20 cuprum method pin 3*8 metal plate break wind ring...
- Page 25 MODEL MB-45 Operator’s manual for Drilling Machine - 25 - MODEL MB-45...
- Page 26 MODEL MB-45 Parts Name Q'TY spindle screw gear box inner circlip Gasket bearing Hex Socket Screws bearing rotor gear shaft Rotor teeth plate bearing bearing large flat outer circlip Center cover O-ring bearing rotor bearing Wind circle screw Stator spring...
-
Page 27: Ec Declaration Of Conformity
MODEL MB-45 VI. EC DECLARATION OF CONFORMITY Declaration of compatibility SCANTOOL A/S. Industrivej 3-9, 9460 Brovst, Denmark Declare with full responsibility that product: MODEL MB-45 DRILLING MACHINE Which the declaration applies to is in accordance with the following standard(s) placed below:...
