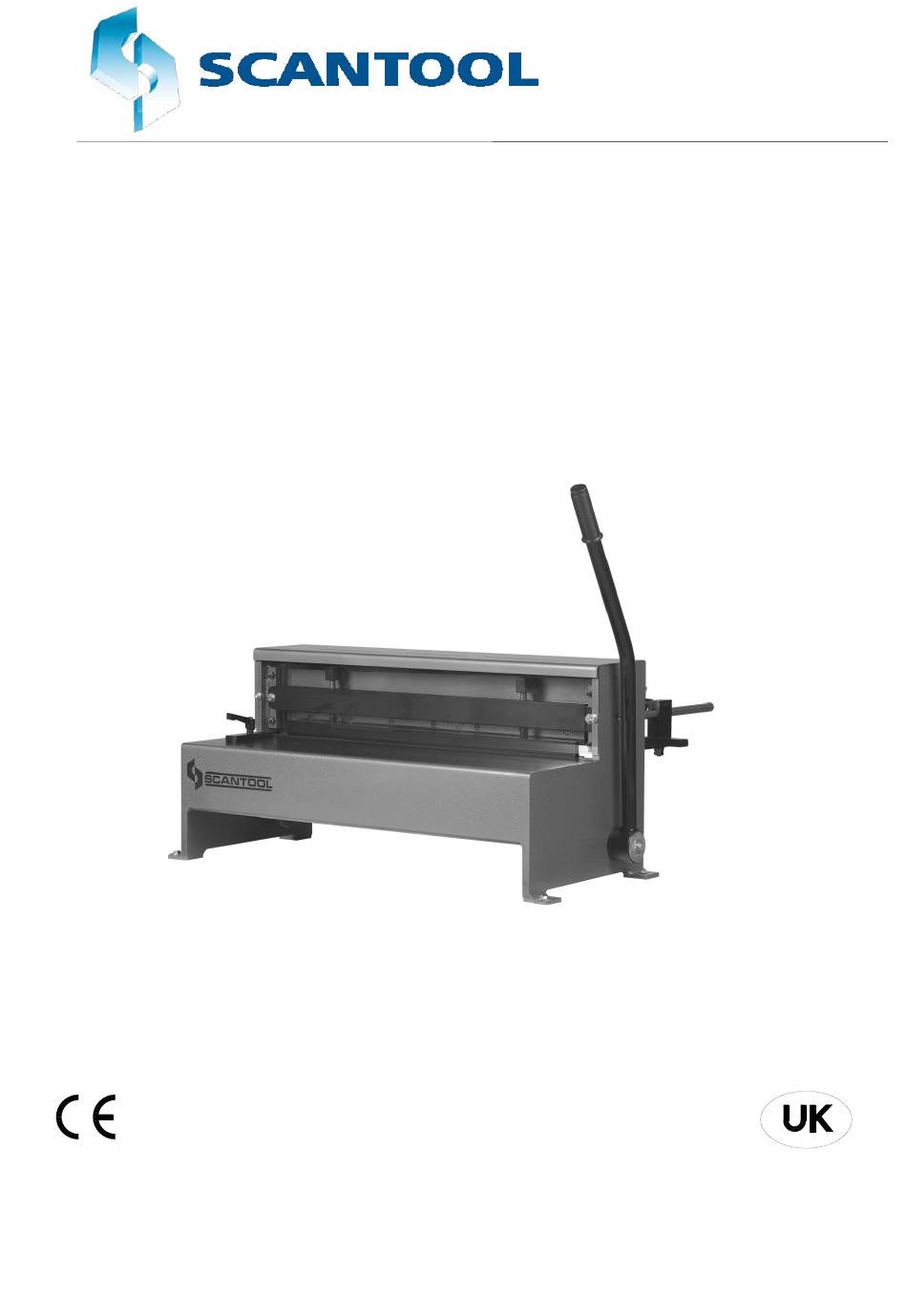

- Page 1 Industrivej 3-9 DK-9460 Brovst Tlf.: +45 98 23 60 88 Fax: +45 98 23 61 44 Manual Scantool TSM 650 Plate shears...
- Page 2 +45 98 23 60 88 Fax: +45 98 23 61 44 hereby declares that SCANTOOL Plate Shears TSM 650 are manufactured in accordance with the provisions of the European Parliament and Council Directive 2006/42 / EC of 17 May 2006...
-
Page 3: Table Of Contents
Table of contents 1. TRANSPORT & HANDLING 1.1 T RANSPORT 1.2 H ANDLING 1.3 P LACING 2. OPERATING 2.1 O PERATING 2.2 S AFETY 2.3 M AINTENANCE 3. SPARE PARTS 3.1 S PLIT DRAWING 3.2 S PARE PARTS LIST 4. TECHNICAL DATA 4.1 D IMENSIONS 4.2 T... -
Page 4: Transport & Handling
1.3 Placing Placing of the SCANTOOL TSM 650 must take place on a firm and level surface such as a work table or the concrete. The shears must be secured to the floor by using the four fittings which were also used for tightening the shears to the pallet. -
Page 5: Operating
2. Operating 2.1 Operating The back stop (E) (see fig. 2.1) is adjusted on the back of the shears by loosening the handles (F) so that the back stop (E) can be moved to the desired cutting length. Now the plate to be processed (G) must be fitted against the angle hold (H) which can be adjusted to the desired cutting angle. -
Page 6: Safety
2.2 Safety When working with the Scantool TSM 650 plate shears existing safety rules must be kept in order to avoid personal injury or material damage. A. User Do not wear any loose clothing, gloves, rings, bracelets, or other jewellery to get caught in moving parts. - Page 7 When placing and securing the Scantool TSM 650 make sure that the crack between shears and floor is less than ~2 mm to prevent cut off material to fall under the shears. DO NOT cut plates that exceed the given max dimensions (see...
-
Page 8: Maintenance
2.3 Maintenance After a period of use it may be necessary Lubricate handle bar with acid-free oil and adjust the upper knife. The length of this period depends on how many cutting operations the shears have performed and also the thickness of the plate. It is also necessary to grease the 2 grease nipples. - Page 9 Knife crack fig.: 2.3 Upper knife (A), lower knife (B). It is also possible to turn around the knives by dismounting them and turn them 180°, so they will cut with the opposite edge. This can be done with both upper and lower knife as they are alike.
-
Page 10: Spare Parts
3. Spare parts 3.1 Split drawing fig.: 3.1... -
Page 11: Spare Parts List
0106091 Machine screw M6x20 0123498 Auto disc 6mm 0737631 Top plate 0106227 Pointed screw M8x12 0105136 Upper knife gauge for TSM 650 0106221 Knife for TSM 650 0987650 Screw M6x20 UH 0106026 Angle hold for TSM 650 1055426 Nut M8... -
Page 12: Technical Data
4. Technical data 4.1 Dimensions 730 mm 795 mm 375 mm 4.2 Technical specifications TSM 650 Working width 650 mm Plate dimension 1,25 mm Cutting angle 1° Plate stop 500 mm Side gauge 200 mm Table width 200 mm Weight... -
Page 13: Warranty
4.3 Warranty 2 year warranty If this machine becomes defective within two year from date of purchase due to wrong materials or manufacturing, we guarantee repair or replacement of the parts if: The product is returned complete to the dealer or the manufacturer. The product has not been abused or mistreated or used in a wrong way or has been used for wrong operations.
