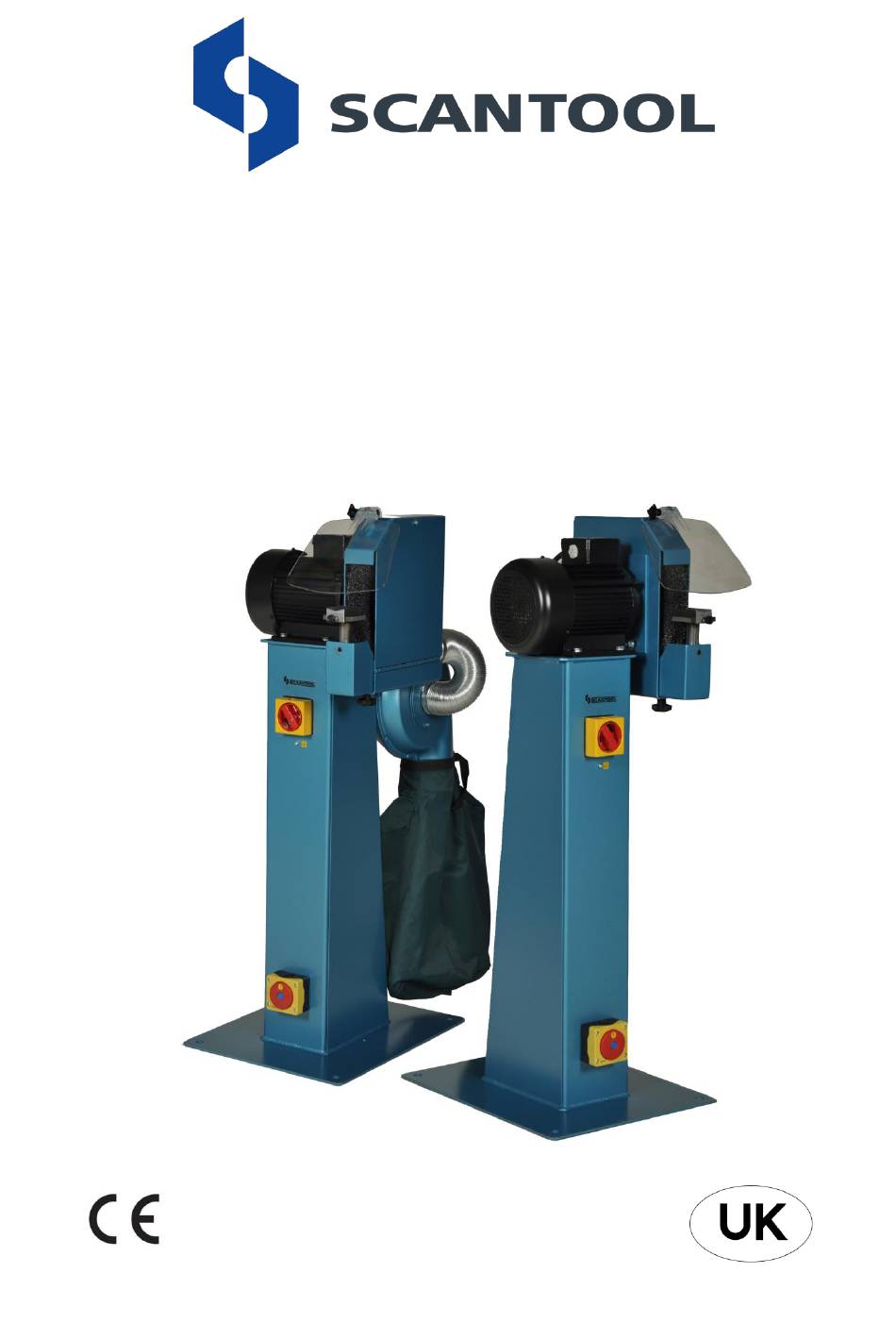

  • Page 1 Manual for SC 250 AGM SC 250 AGS Industrial Machinery for Deburring with or without Exhaust System...
  • Page 3 READ THIS MANUAL BEFORE USE...
  • Page 4 Tel.: +45 98 23 60 88 Fax.: +45 98 23 61 44 We hereby declare that SCANTOOL AGM-AGS 250 industrial grinding machines are manufactured in accordance with the provisions of the European Parliament and Council Directive 2006/42 / EC of 17 May 2006 And also in accordance with: •...

  • Page 5: Table Of Contents

    Table of Contents 1 TRANSPORTATION AND HANDLING ................... 4 1.1 T ........................4 RANSPORTATION 1.2 H ..........................4 ANDLING 1.3 S ............................4 ETUP 1.4 C ..........................4 ONNECTION 1.5 I ......................4 NSPECTION BEFORE 2 USER'S GUIDE ..........................5 2.1 O ..........................

  • Page 6: Transportation And Handling

    1 Transportation and Handling Transportation The machine is delivered mounted on a pallet and wrapped in protective packaging. 1.2 Handling The machine can easily be transported in the packaging in which it is delivered. If the machine rests on a base, make sure that the base is securely bolted to the transport pallet.

  • Page 7: User's Guide

    2 User's Guide 2.1 Operation After it is connected and set up as above, the machine is ready for use. When using the deburring machine, the operator and everyone in the vicinity of the machine should wear safety goggles as the machine could throw workpieces and threads from the steel brush. Guide the workpiece steadily towards the steel brush without hard, jerk-like thrusts or strokes.
  • Page 8 Remove adaptor 5. Keep the keys and screws. workbench clean. A Make it a habit of mess can lead to checking that these are accidents. removed before the machine is switched 6. Avoid hazardous 7. Keep children working environments. away. All visitors Never use ought to keep a good machine tools in damp or...
  • Page 9 14. Be 15. Maintain the tool familiar carefully. The best and with your safest results are range. achieved by keeping the Maintain a tool sharpened and clean. good Follow the instructions for footing and lubrication and balance at replacement of parts. all times.

  • Page 10: Maintenance

    2.3 Maintenance Keep the machine dry and make sure that the steel brush does not get wet of vapours or rain. We recommend that the steel brush be replaced when its wear exceeds 25%. A skew brush leads to vibrations that over time ruin the machine bearings. Damaged grinder, eye shield and other shielding should be replaced to prevent personal injuries.

  • Page 11: Spare Parts

    3 Spare Parts 3.1 Deburring Machine with Base 250 AGM/AGS Figure 3.1.1 Spare parts drawing SC 250 AGM...
  • Page 12 Set screw 6kt hole 45 H M8x12 0105026 Spring washer 10 mm 0132306 Spring washer 8 mm 0132594 Washer Ø40xØ8x2 6540984 Washer 8mm 5437850 Washer 10mm 0101491 Emergency stop 0233899 DISA M1630 BR 6,3 T2U 0188815 Figure 3.1.2 Spare parts list for SC 250 AGM...

  • Page 13: Parts For Ags 250 Exhaust System

    3.2 Parts for AGS 250 Exhaust System This section comprises a list of parts for the VFCB 121 exhaust unit (item no. 1022350) that is an integral part of AGS. Figure 3.2.1 Spare parts drawing SC 121 AGM...

  • Page 14: Technical Data

    Pos. no. Designation Identification Washer 8mm 5437850 Motor MO71 VFCB 121 1043064 Spring 5x5x14 0100609 Flange 0300310 Base for VFCB holder 2006726 Machine screw M4x16 w/ pan 2006480 head Fan housing, int. 0781258 Hex bolt M5x16 0120626 Spring washer 5mm 0737666 Washer 5mm 0233030...

  • Page 15: Circuit Diagrams

    4.2 Circuit Diagrams The motor of a Scantool AGM 250/AGS 250 industrial machine can be connected for both 3 x 400/440 V, 50/60 Hz and 3 x 230 V, 50 / 60 Hz cycles. See the circuit diagrams below. The circuit diagram for a DISA switch is available at the bottom.
  • Page 16 Figure 4.2.3 Circuit diagram for DISA switch w/ emergency stop...

  • Page 17: Warranty

    5. Wearing parts do not fall within the scope of the warranty. SCANTOOL A/S offers you five years guarantee on the electrical motor if the motor becomes defective or even burns-out within the first 5 years from date of invoice.
