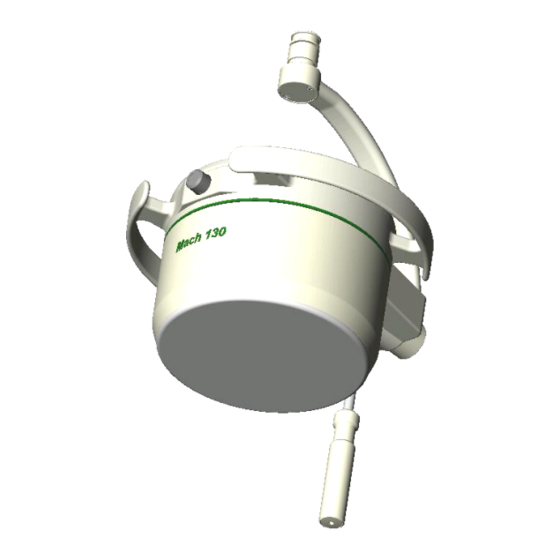

Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering Directions for use MACH 130F/130 MACH 130F 22,8V UL UNIFLEX R96 120V UL Mach 130F;130 / Uniflex R96 120V UL stand-lamp - one-handed height adjustment Mach 130F;130 stand-lamp – new type stand Mach 130F;130F 22,8V UL;130 / Uniflex R96 120V UL wall lamp...
The dielectric filter disk between reflector and protective disk prevents a damaging heating of the illuminated area. The lamps Mach 130 may not be used without the conversion filter. The lamp body may only be dismantled from swivel arm the (in reverse order to its assem- bly) after the arm has been secured since the arm is under spring tension.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 2. Operating the lamp Mach 130/Uniflex R96 120V UL Features of of Mach 130 / Uniflex lamps: • Mach 130F with focusable light field size and integrated dielectric filter disk The reflector is adapted to the dielectric filter disk.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 2.2 Positioning Use the handle 40/45 or the handle rail GL to posi- tion the lamp. There are two handle-types available: • Standard handle 40 The standard handle is fixed to the handle bar 58,59 58/59 and can be removed.
Ceiling, Wall, Stand model Lamps and Engineering 3. Cleaning 3.1 Sterilizable handle The lamps Mach 130/Mach 130F 22,8V UL/Uniflex R96 120V UL can be equipped as an option with a sterilizable handle 45. The sterilizable handle 45 is removable and steriliz- able.
Page 7
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering When cleaning / disinfecting, the following procedures must be followed: Process Time (sec.) Zone 1 Pre-rinse, external, cold, 10 – 15°C Washing, acidic, external 35°C Draining time Re-rinse, external approx. 80°C Draining time Re-rinse, external approx.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 3.2 Lamp head, protective disk The lamp has a high-quality surface, which can be cleaned with conventional cleaning agents. The protective disk 15 is made of an high-quality plastic. Pay attention to the following during clean-...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4. Maintenance The lamp has been designed and built so that regular maintenance intervals are not necessary. In order to keep the system easy running throughout its life span we recommend that the hinges be greased once a year with an acid-free grease.
Stand for Mach 120 / 120F, Mach 115 and Makrolux (∅ 13,8mm) An adjustment of the spring force is not possible. Stand for Mach 130 / 130F and Soloflex – design with short arm (∅ 22,8mm) • Push the extension tube AR into the stand tube SR to the stop (I).
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4.3 Adjustments at the lamp head ♦ Adjusting the movability of the handle for focusing (Mach 130F/130F 22,8V UL/ Uniflex R96 120V UL) In case you notice that the handle moves to easily or to heavily, it may be necessary to adjust its movabil- ity.
Lamps and Engineering 4.4 Changing of spare parts 4.4.1 Changing the halogen bulbs Dr. Mach uses special halogen bulbs as illuminants. Only original Dr. Mach replacement bulbs may be used. The use of other bulbs can lead to a considerable reduction of the light power and increase in the thermal load.
MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4.4.2 Changing the fuses (Mach 130/130F 230V/120V and Uniflex R96 UL 120V) The fuses in the lamp housing (models with built-in transformer only) prevent the transformer burning through in the event of a short circuit. The fuses are situated beneath the housing cap.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4.4.3 Changing the ON/OFF switch (potentiometer)- Mach 130F/130, date of construction before oct. 2002 Exchange only by skilled electrician!! 21,68 You can turn the lamps Mach 130F/130 on and off using the push button switch 21/68.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4.4.4 Changing the ON/OFF switch (potentiometer)- Mach 130F/130, date of construction after oct. 2002 Exchange only by Figure 1 skilled electrician!! axis You can turn the lamps Mach 130F/130 on and off using the push button switch 21/68.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4.4.5 Changing the filter disk / conversion filter The filter disk between reflector and protective disk (Mach 130F and Uniflex R96 UL only) prevents a damaging heating of the illuminated area.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering • Press the filter disk 14 / the conversion filter 72 carefully against two springs 16a (I). Attention: Touch the filter disk only with a non-fluffy cloth. • Press the springs 16b to the edge (II) and lift the filter disk (III).
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 4.4.7 Conversion to sterilizable handle Extent of supply: − sterilizable handle sleeve − couple 58,59 − 1 screw M4x35 DIN 912:A2 with with safety lake • Turn off the lamp.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 5. Data 5.1 Technical data Design with 230 Volt ~ Wechselstrom Alternating current Pr Primärseitig 230V / 0,29A Primary side Sek Sekundärseitig 22,8V / 2,19A Secondary side Leistungsaufnahme 50VA...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 5.2 Wiring Mach 130F /130 design with 230V Built in electronic transformer Transformer Halogen bulb 230V Switch Mach 130F /130 and Uniflex R96 UL design with 120V Built in toroid transformer...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering Mach 130F / 130F UL / 130 design with 22,8V External transformer 22,8V Switch Halogen bulb 5.3 Environmental conditions Operation Min. Max. Temperature +10°C +40°C Relative atmospheric humidity Air pressure...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 6.1 Specification of bulb 22,8V 50W Voltage, power G 6,35 Socket HALOGEN Mode of operation 6.2 Specification of fuse Design with 230 Volt 5x20 Visible fuse 5x20 Delay action 0,63A...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 8. Spare parts 8.1 Mach 130F design with 230 Volt built in electronic transformer 17,18 04,35 52,53 26,27 32,33,34 21,22 59100001 Edition 12 07.02.2005 / Bak Page 23/28...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 8.2 Mach 130 design with 230 Volt built in electronic transformer 17,18 04,35 52,53 26,27 32,33,34 21,22 59100001 Edition 12 07.02.2005 / Bak Page 24/28...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 8.3 Mach 130F/130 design with 120 Volt -built in toroid transformer 26,28 20,67 Remark: For the rest of spare parts see lamp Mach 130F/130 –design with 230 Volt 8.4 Uniflex R96 UL 120 Volt -built in toroid transformer 26,65 Remark: For the rest of spare parts see lamp Mach 130F/130 –design with 230 Volt...
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 8.5 Mach 130F/130 design with 22,8 Volt -external transformer Remark: For spare parts see lamp 130F/130 (design with 230V), excepting the electronic transformer, the fuses and the fuse holders.
Dr. Mach MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering 8.9 Spare parts list Item Qty. Name EDVNO Remarks Base frame 10030201 10012005 no serigraph, ECO 10012008 no serigraph, R96 Housing lower part 10012009 with serigraph, R96 10012011 with serigraph, ECO...
Page 28
MACH 130F/130 Ceiling, Wall, Stand model Lamps and Engineering Spare parts list Item Qty. Name EDVNO Remarks Glass reflector (Mach 130) 67380101 Head cap screw M2,5x8-A2, DIN912 65052077 Washer A3,2 DIN125-A2 65512017 Head cap screw M2,5x6-A2, DIN912 65052077 Plate 21012203...
