step 2
Follow these
instructions to
install your parts
and accessories.
Things you need to know
• Always read the full instructions prior to installation.
• Consider possible obstructions to your parts & accessories,
like hinges inside the cabinet or adjacent cabinet doors and
handles, prior to installation.
• Make sure you leave plumbing and electrical work
to qualified trades people. Never try this yourself.
• Make sure you always use safety gear like a mask, ear muffs
and glasses when using tools.

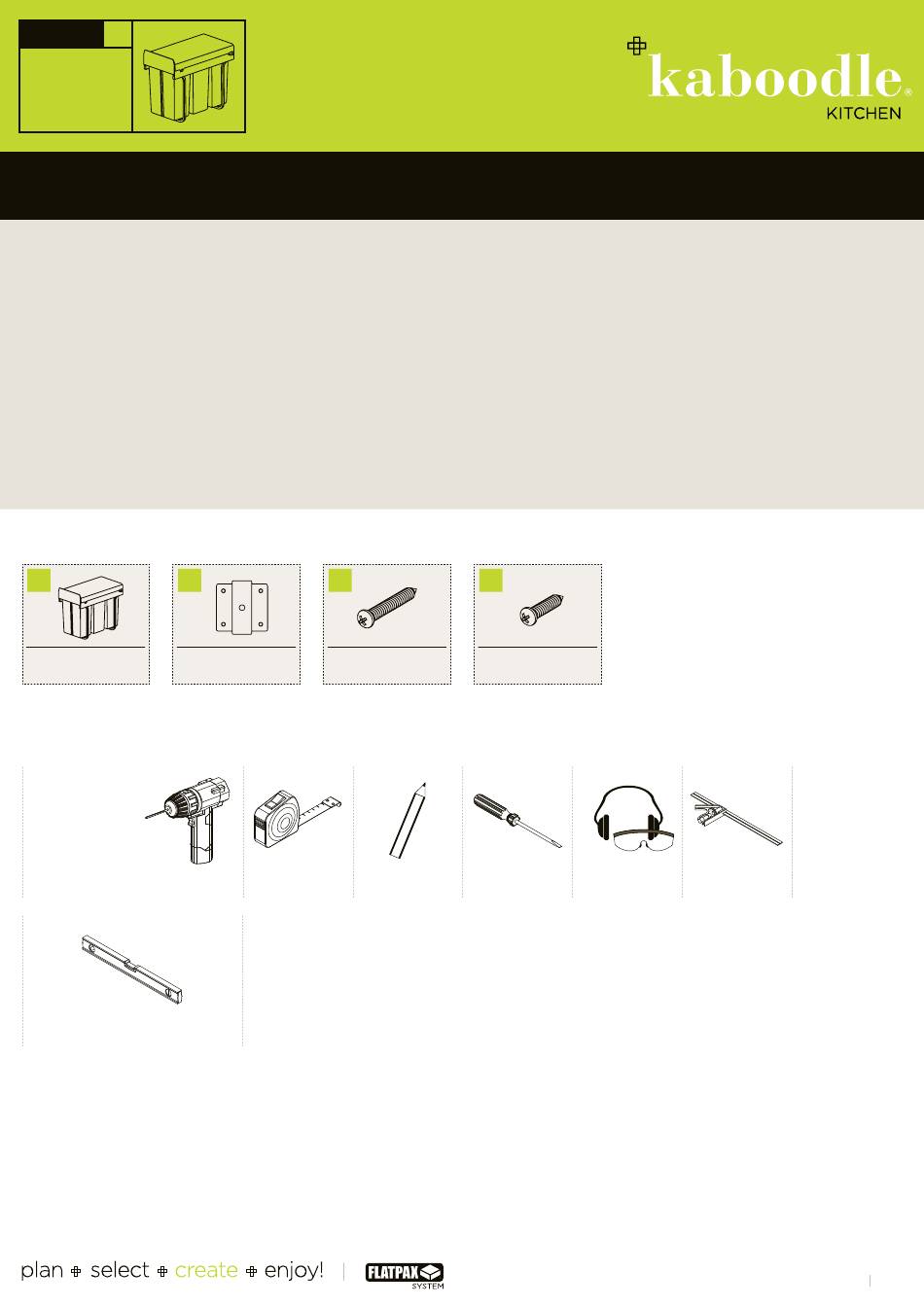

Hardware included
A
B
bin
frame x 1
Tools you will need
To put your kaboodle kitchen waste bins together you will need the following tools.
Cordless drill with:
• Number 2 screw tip
• 2mm drill bit
Spirit level
(optional)
C
25mm
brackets x 4
wood screws x 6
Tape
measure
Pencil

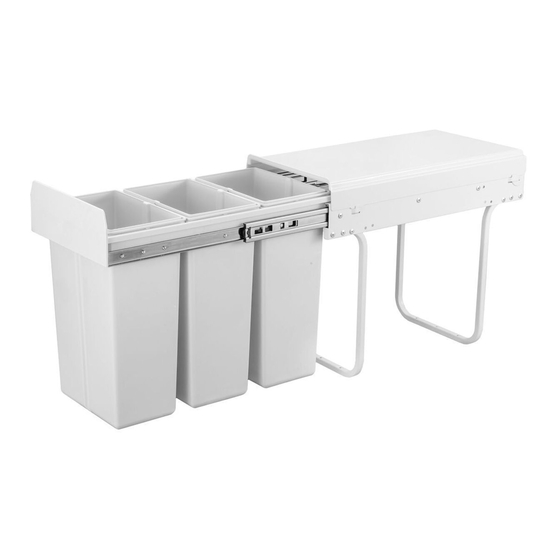

3x10L base mount pullout bin
• Tip: After marking out the pre-drill holes as per the
instructions, take the part that is to be installed and align
the appropriate holes with the markings to ensure they
match up prior to pre-drilling the holes.
• If you have any questions, contact us on:
Australia: 1800 666 078 Monday to Friday between
8:00am and 6:00pm AEST, New Zealand: 0800 522 663
Monday to Friday between 8:00am and 5:00pm NZST
or email: info@kaboodlegroup.com.au.
D
16mm
wood screws x 16
Screw
Safety
driver
gear
installation guide
Adjustable
square
Ver. 3
W-50552
p. 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kaboodle w-50552
Summary of Contents for Kaboodle w-50552
- Page 1 4 frame x 1 wood screws x 6 wood screws x 16 Tools you will need To put your kaboodle kitchen waste bins together you will need the following tools. Cordless drill with: • Number 2 screw tip • 2mm drill bit Tape Screw...
- Page 2 122mm front of base cabinet On the base of the cabinet mark out a parallel line in the middle Pre-drill front holes using a 2mm drill bit to a depth of roughly of the cabinet. Then mark out 61mm from the centre line both 2.5mm where the lines cross. Align front frame with predrilled sides. Lastly, mark out a line 97mm from the front edge front holes and mark out position of rear fixing holes. of the cabinet as pictured above. Pre-drill rear holes. attaching frame and brackets securing frame and brackets centre hole centre hole Align the bin frame (A) and the brackets (B) with the pre-drilled holes as pictured above and fix through the centre hole to the Further secure the bin frame and the brackets to the cabinet cabinet using 6 x 25mm wood screws (C). using 16 x 16mm wood screws (D) as pictured above. W-50552 Ver. 3 p. 2...
- Page 3 3x10L base mount pullout bin inserting bins inserting bin lid Place the bins into the frame Slide the two back catches of the bin lid to complete installation. into the supports at the back of the frame. The two small front catches should now fit Note: Max weight capacity is 30kg. into the front supports. Caring for your kaboodle parts and accessories step 1 Looking after your cabinets is really easy and with the right care and maintenance they will last you for many years. Just follow these simple steps and if you need any Your Kaboodle more information you can contact us: Australia: 1800 666 078 Monday to Friday cabinet is now between 8:00am and 6:00pm AEST. New Zealand: 0800 522 663 Monday to Friday complete. between 8:00am and 5:00pm NZST or email: info@kaboodlegroup.com.au Hinges, runners and other parts and accessories should be kept dry at all times.
