step 2
Follow these
instructions to
install your parts
and accessories.
Things you need to know
• Always read the full instructions prior to installation.
• Consider possible obstructions to your parts & accessories,
like hinges inside the cabinet or adjacent cabinet doors and
handles, prior to installation.
• Make sure you leave plumbing and electrical work
to qualified trades people. Never try this yourself.
• Make sure you always use safety gear like a mask, ear muffs
and glasses when using tools.

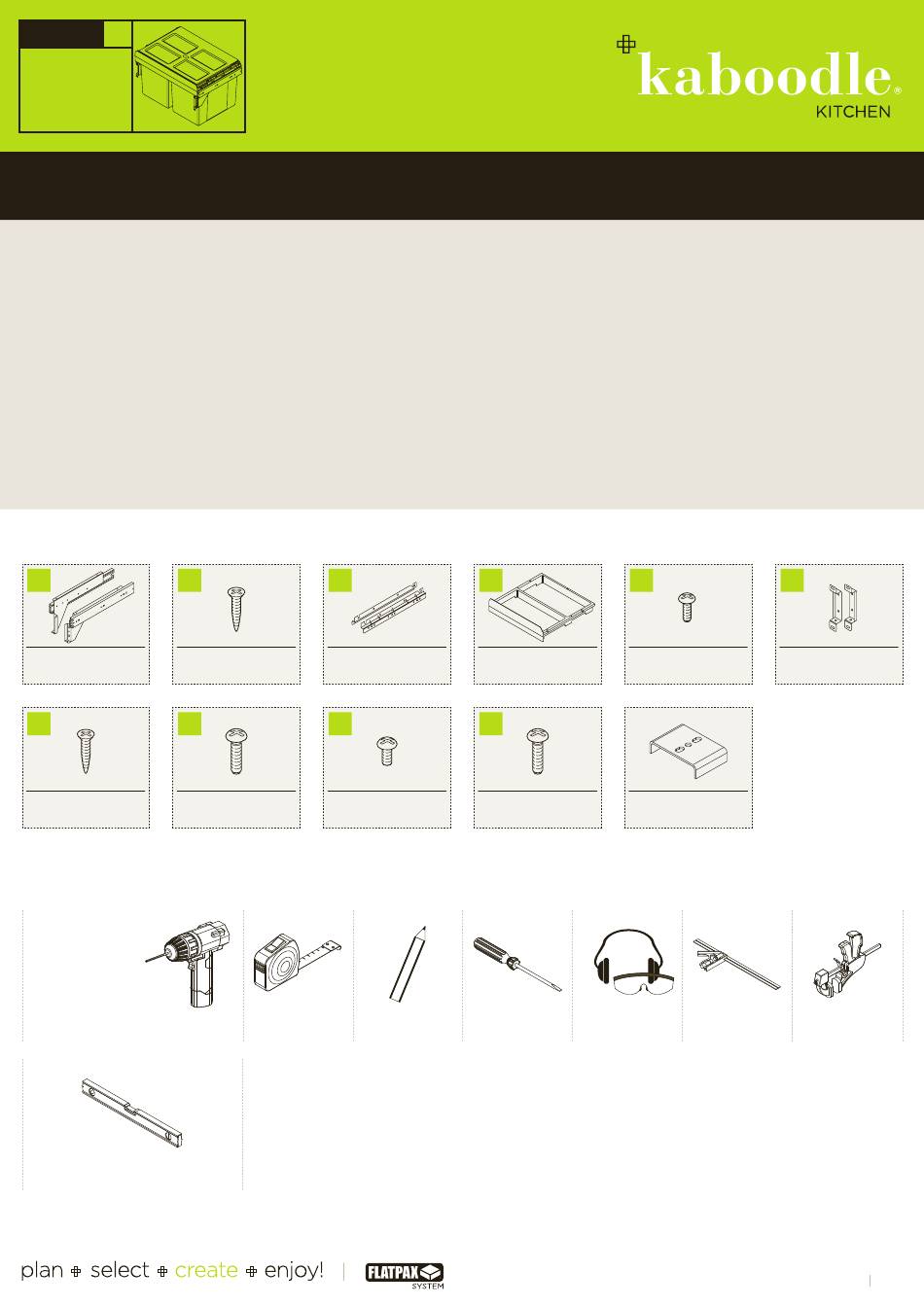

Hardware included
A
B
runners x 1 pair
wood screws x 12
G
H
14mm
wood screws x 4
Tools you will need
To put your kaboodle kitchen waste bins together you will need the following tools.
Cordless drill with:
• Number 2 screw tip
• 2mm drill bit
Spirit level
(optional)
C
16mm
lid
brackets x 2
I
M6 16mm
M5 8mm
screws x 2
screws x 2
Tape
measure
Pencil
2x27L side mount pullout bin
• Tip: After marking out the pre-drill holes as per the
instructions, take the part that is to be installed and align
the appropriate holes with the markings to ensure they
match up prior to pre-drilling the holes.
• If you have any questions, contact us on:
Australia: 1800 666 078 Monday to Friday between
8:00am and 6:00pm AEST, New Zealand: 0800 522 663
Monday to Friday between 8:00am and 5:00pm NZST
or email: info@kaboodlegroup.com.au.
D
bin
frame x 1
J
M5 16mm
screws x 4
Screw
Safety
driver
gear
installation guide
E
F
m4 8mm
screws x 4
brackets x 2
*May be required
when using cabinets
*bracket x 4
different to Kaboodle
Adjustable
Clamps
square
(optional)
door
W-50532
Ver. 2
p. 1
