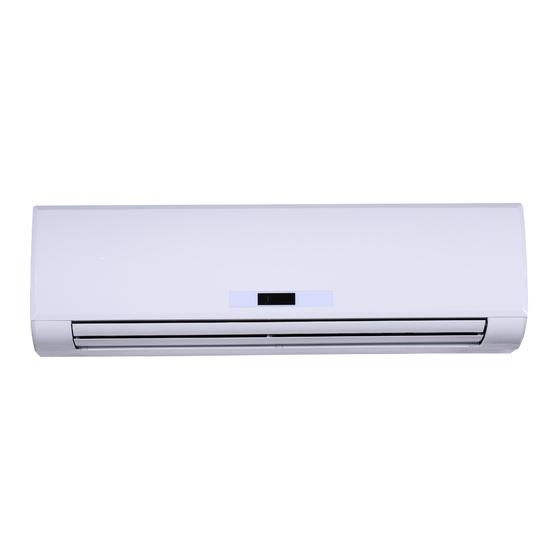

High wall indoor unit for variable refrigerant flow (vrf) systems

Advertisement

Installation and Maintenance Instructions
CONTENTS
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . 1
GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Step 1 - Unpack and Inspect Units . . . . . . . . . . . . 5
Step 2 - Position the Unit . . . . . . . . . . . . . . . . . . . . 5
Step 3 - Mount the Unit . . . . . . . . . . . . . . . . . . . . . . 5
Step 4 - Connect Piping . . . . . . . . . . . . . . . . . . . . . . 6
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Pre-Start Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
System Operation Check . . . . . . . . . . . . . . . . . . . . 13
MAINTENANCE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
INDOOR UNIT ADDRESSING. . . . . . . . . . . . . . . . . 13
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 16
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 17

SAFETY CONSIDERATIONS

Improper
installation,
adjustment,
maintenance, or use can cause explosion, fire, electrical shock,
or other conditions that may cause death, personal injury or
property damage. The qualified installer or agency must use
factory-authorized kits or accessories when modifying this
product.
Follow all safety codes. Wear safety glasses, protective
clothing, and work gloves. Use quenching cloth for brazing
operations. Have fire extinguisher available. Read these
instructions thoroughly and follow all warnings or cautions
included in literature and attached to the unit. Consult local
building codes and the current editions of the National
Electrical Code (NEC) ANSI/NFPA (American National
Standards Institute/National Fire Protection Association) 70. In
Canada, refer to the current editions of the Canadian Electrical
Code CSA (Canadian Standards Association) C22.1.
Understand the signal words -
.
identifies the most serious hazards,
CAUTION
DANGER
which will result in severe personal injury or death.
signifies hazards that could result in personal injury
WARNING
or death.
is used to identify unsafe practices, which
CAUTION
would result in minor personal injury or product and property
damage.
Recognize safety information. This is the safety-alert
symbol ( ). When this symbol is displayed on the unit and in
instructions or manuals, be alert to the potential for personal
injury.
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No.20-40VMW005-030-01
Page
alteration,
service,
,
, and
DANGER
WARNING
Printed in U.S.A.
Form 40VMW-6SI
High Wall Indoor Unit for
Variable Refrigerant Flow (VRF) Systems
Electrical shock can cause personal injury and death. Shut
off all power to this equipment during installation. There
may be more than one disconnect switch. Tag all
disconnect locations to alert others not to restore power
until work is completed.
When installing the equipment in a small space, provide
adequate measures to avoid refrigerant concentration
exceeding safety limits due to refrigerant leak. In case of
refrigerant leak during installation, ventilate the space
immediately. Failure to follow this procedure may lead to
personal injury.
DO NOT USE TORCH to remove any component. System
contains oil and refrigerant under pressure.
To remove a component, wear protective gloves and
goggles and proceed as follows:
a. Shut off electrical power to unit.
b. Recover refrigerant to relieve all pressure from
system using both high-pressure and low-pressure
ports.
c. Traces of vapor should be displaced with nitrogen
and the work area should be well ventilated.
Refrigerant in contact with an open flame produces
toxic gases.
d. Cut component connection tubing with tubing cutter
and remove component from unit. Use a pan to catch
any oil that may come out of the lines and as a gage
for how much oil to add to the system.
e. Carefully unsweat remaining tubing stubs when
necessary. Oil can ignite when exposed to torch
flame.
Failure to follow these procedures may result in personal
injury or death.
Pg 1
40VMW005-030
WARNING
WARNING
WARNING
2-20
Replaces: 40VMW-5SI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40VMW005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Carrier 40VMW005

  • Page 1: Table Of Contents

    Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Catalog No.20-40VMW005-030-01 Printed in U.S.A. Form 40VMW-6SI Pg 1...
  • Page 2: General

    GENERAL CAUTION The 40VMW high wall mount unit provides an efficient way to heat or cool a space and an attractive appearance. The DO NOT re-use compressor oil or any oil that has been equipment is initially protected under manufacturer’s standard exposed to the atmosphere.
  • Page 3 VM W 005 --- Voltage (V-Ph-Hz) 3 — 208/230-1-60 Equipment Type 40 — Indoor Unit Blank Product Type VM — VRF Capacity (Btuh) 005 — 5,000 Model Type 007 — 7,000 W — High Wall 009 — 9,000 012 — 12,000 015 —...
  • Page 4 DIMENSION 40VMW UNIT SIZE 005-012 015-018 NOTE: All dimensions shown in inches. Fig. 2 —40VMW005-018 Dimensions DIMENSION 40VMW UNIT SIZE 024, 030 Fig. 3 —40VMW024, 030 Dimensions...
  • Page 5: Installation

    INSTALLATION IDENTIFYING AND PREPARING UNITS — Be sure power requirements match available power source. Refer to unit Step 1 — Unpack and Inspect Units — Units are nameplate and wiring diagram. In addition: packaged for shipment to avoid damage during normal transit •...
  • Page 6: Step 4 - Connect Piping

    1. Detach the mounting plate from the unit. 2. Introduce temporary cushioning material to maintain the space needed to connect the piping and to avoid damage 2. Place mounting plate on wall where unit will be installed to the unit and wall. See Fig. 6. and mark the mounting holes.
  • Page 7: Step 5 - Complete Electrical Connections

    • Use a torque wrench for flare nuts. Refer to Table 3 for Table 4 — 40VMW Electrical Data flare nut torque recommendations. POWER SUPPLY Table 3 — Flare Nut Torque Recommendations UNIT MOPD 40VMW005 0.29 OUTSIDE DIAMETER (in.) RECOMMENDED TORQUE (ft-lb) 40VMW007 0.45 40VMW009 0.45...
  • Page 8 — Outlet Pipe Temp. Sensor XP1-4/XS1-6 — Connectors — Terminal Fig. 10 — 40VMW005-030 Typical Wiring Diagram POWER AND CONTROL WIRING — 2. Remove the control box cover plate and look for the power and control wire holders to route the wires to the 1.
  • Page 9: Step 6 - Position And Connect Controller

    Fig. 18. HA HB Fig. 18 —Connecting the Communication Wires If it is not possible to buy communication wires from Carrier, connect the indoor unit side of the communication wires using the connector provided with the accessories as shown in Figs.
  • Page 10 Connector on indoor unit Connector in accessory kit Communication cable in field Fig. 19 — Connecting the Communication Cable to Indoor Unit to Outdoor Unit Using the Supplied Connector IMPORTANT: Wiring for communication shall be two CAUTION inches or more apart from power source wiring to avoid elec- tric noise.
  • Page 11 Note: 24v DC Power Touch screen wired controller outdoor unit Centralized controller HA HB Indoor unit 1# Indoor unit 2# To No.1 indoor To No.2 indoor Main MDC To outdoor To No.3 indoor Indoor unit 3# To No.4 indoor To Sub.MDC Indoor unit 4# wired controller Note: Power from IDU...
  • Page 12 Note: 24v DC Power Touch screen wired controller Outdoor unit Centralized controller HA HB Indoor unit 1# Indoor unit 2# Indoor unit 3# Indoor unit 4# wired controller Note: Power from IDU HA HB Indoor unit 5# Indoor unit 6# Network Resistor Maximum wiring length...
  • Page 13: Acb (Auxiliary Control Board) Interface

    ACB (Auxiliary Control Board) Interface — a. No abnormal vibration or noise is noticed. ACB interface is a dry contact board that can output up to four b. Condenser fan is in operation. signals controlling devices. Refer to Fig. 22 for connecting c.
  • Page 14: Non-Programmable Controller (40Vm900002)

    Click TEMP.UP or TEMP.DOWN to change 00 to the desired address as shown in Fig. 25. Press OK to confirm and exit the setting interface. AUTO TEMP COOL 1 – MODE SETTING 2 – FAN SPEED SETTING CLOCK HEAT HOUR FAN SPEED 4 –...
  • Page 15 3. Press TEMP.UP or TEMP.DOWN to choose the address you want to set as shown in Fig. 27. Press MENU/OK to send this address to the IDU. Fig. 27 —Programmable Controller Setting IDU Address 4. Press BACK twice or wait 30 seconds to automatically exit the parameter settings menu.
  • Page 16: Troubleshooting

    TROUBLESHOOTING Figure 28 shows the display panels for 40VMW005-018 and 40VMW024-30 units. See Table 5 for a summary of display indicators. Table 6 lists problems, possible causes, and possible solutions. 40VMW005-018 40VMW024-030 LEGEND DEF. — Defrost Fig. 28 —40VMW Display Panel Table 5 —...
  • Page 17: Replacement Parts

    Table 6 — Troubleshooting DIGITAL DISPLAY DESCRIPTION POSSIBLE CAUSES POSSIBLE SOLUTIONS System is in cooling or fan mode only and All units should be in cooling mode for system to stay heating signal is received from a unit in in cooling mode. the system.
  • Page 18: Appendix A - Dip Switch Settings

    — Mode Priority Indoor Unit (HP Only) (IDU address must be 63) Fig. A — SW1 SETTINGS © Carrier Corporation 2020 Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations. Catalog No.20-40VMW005-030-01 Printed in U.S.A.
