Summary of Contents for Carrier i-Vu CCN Router

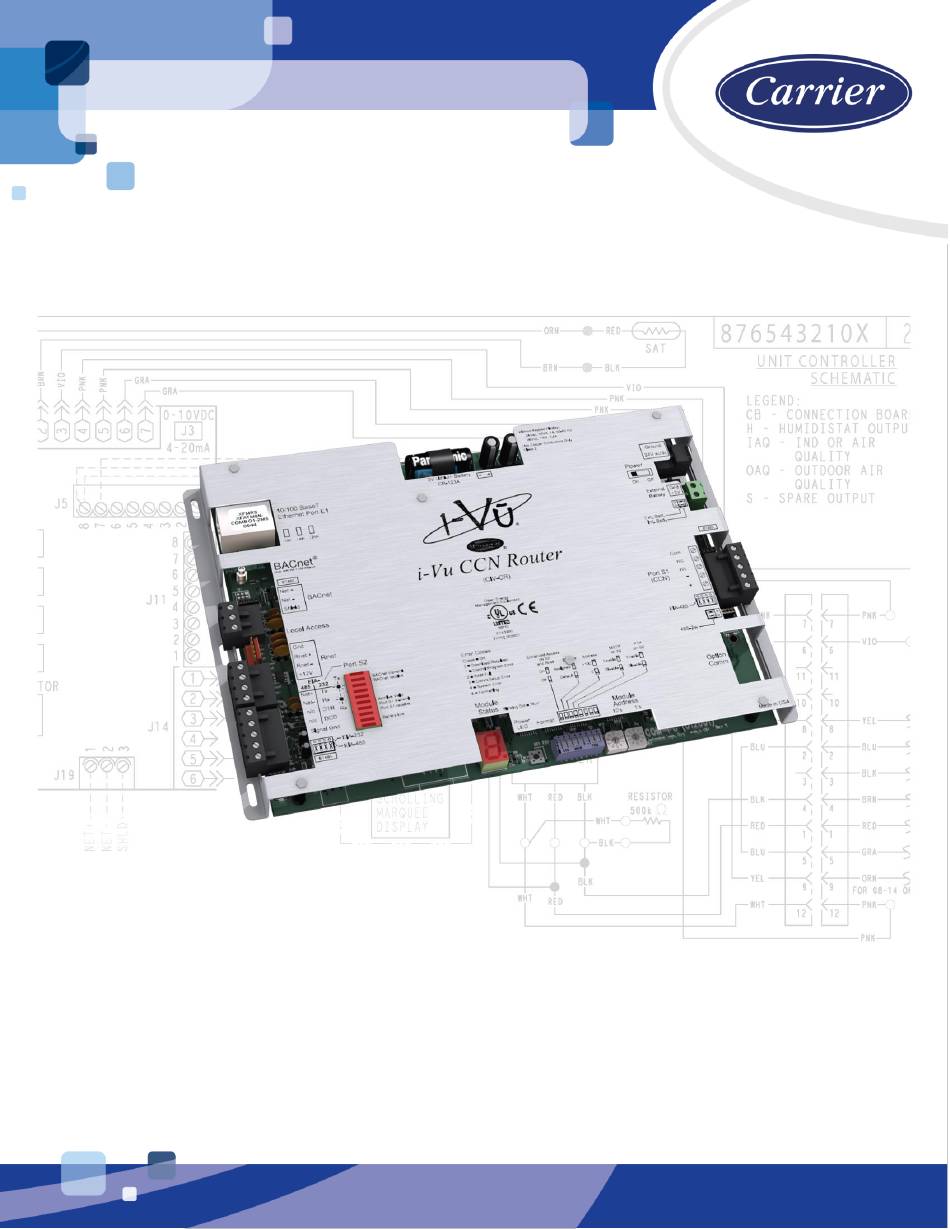

  • Page 1 ® ® CARRIER CORPORATION ©2021 · Catalog No. 11-808-393-01 · 1/22/2021...
  • Page 2 Important changes are listed in Document revision history at the end of this document. CARRIER CORPORATION ©2021. All rights reserved throughout the world. i-Vu is a registered trademark of Carrier Corporation. All other trademarks are the property of their respective owners.

  • Page 3: Table Of Contents

    Contents Introduction ................................1 What is the i-Vu® CCN Router? .......................... 1 Specifications ................................ 2 Safety considerations ............................3 Mounting and wiring ............................. 4 To mount the i-Vu® CCN Router ......................... 4 To wire for power ..............................4 To wire CCN devices on Port S1.......................... 5 Configuring IP for the i-Vu®...

  • Page 5: Introduction

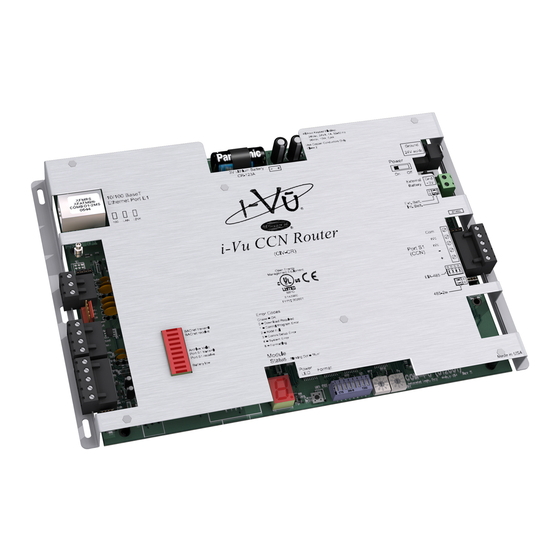

    The i-Vu® CCN Router is an integral part of the i-Vu® system. It connects an Ethernet-based Local Area Network (LAN) to the Carrier Comfort Network (CCN). The i-Vu® CCN Router can be used in two different configurations. It serves as a Gateway, where it gives the i-Vu® server residing on the Ethernet LAN access to the entire CCN, or it can function as a Bridge, where it creates secondary CCN communication buses in order to add additional CCN elements to the system.

  • Page 6: Specifications

    -20 to 140°F (-29 to 60°C), 10–90% relative humidity, non-condensing range Storage temperature range -24 to 140°F (-30 to 60°C), 0 to 90% relative humidity, non-condensing Physical Rugged aluminum cover, removable screw-type terminal blocks i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...

  • Page 7: Safety Considerations

    Safety considerations WARNING Disconnect electrical power to the i-Vu® CCN Router before wiring it. Failure to follow this warning could cause electrical shock, personal injury, or damage to the controller. i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...

  • Page 8: Mounting And Wiring

    Status LED will display 8 for about 5 seconds and then reverts to 0, until controllers have been found and downloaded. There is a chase pattern when the router is running with no errors. i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...

  • Page 9: To Wire Ccn Devices On Port S1

    Net- (Pin 2) Net+ (Pin 1) NOTE The CCN Shield should be tied/taped back or daisy chained if the i-Vu® CCN Router is not at one end of the bus. i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...

  • Page 10: Configuring Ip For The I-Vu® Ccn Router

    NOTE After uploading the controller the CCN address should be changed to something other than 0,1. This avoids addressing conflicts when uploading Carrier equipment into the i-Vu application. When using NSTV the CCN address can be changed by highlighting the i-Vu® CCN Router and then clicking on the Display/set properties icon.

  • Page 11: Troubleshooting

    Formatting the i-Vu® CCN Router CAUTION This erases all archived information and user-configuration settings. You will have to reconfigure all custom settings. It is recommended to restore the factory defaults only under the guidance of Carrier Control Systems Support. To erase volatile memory data and restore factory default configuration settings: Turn off the i-Vu®...

  • Page 12: Led's

    Obtain a Module Status Report (Modstat) and look for error messages. If you cannot determine the error from the Modstat, send a screenshot of the Modstat to Carrier Control Systems Support. NOTE To obtain a Module Status Report in the i-Vu® interface, click the Main Menu button, then select Manual Command and type in modstat.

  • Page 13: To Replace The I-Vu® Ccn Router's Battery

    Insert the new battery into the controller, matching the polarity of the battery you removed. Push the black clip back onto the battery until you hear both sides click in place. Download the i-Vu® CCN Router. i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...

  • Page 14: Compliance

    BACnet Compliance Compliance of listed products to requirements of ASHRAE Standard 135 is the responsibility of BACnet International. BTL ® is a registered trademark of BACnet International. i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...

  • Page 15: Document Revision History

    General formatting changes - no content changes. 8/6/14 Configuring the IP for the i-Vu® CCN Corrected the Network Service Tool procedure by adding CCN C-TS-RD-E Router ENET Configuration. * For internal use only i-Vu® CCN Router CARRIER CORPORATION ©2021 Installation Guide All rights reserved...
  • Page 17 CARRIER CORPORATION ©2021 · Catalog No. 11-808-393-01 · 1/22/2021...
