- Page 1 Power Bank Installation Guide Verifone Part Number DOC087-527-EN-A, Revision A...
- Page 2 Verifone, Inc. The information contained in this document is subject to change without notice. Although Verifone has attempted to ensure the accuracy of the contents of this document, this document may include errors or omissions. The examples and sample programs are for illustration only and may not be suited for your purpose.
-
Page 3: Table Of Contents
Sleep Mode ........... . 14 Holster for Verifone e285 Power Bank ....... . 14 Important Safety Instructions . - Page 4 ONTENTS THIS PAGE IS INTENTIONALLY LEFT BLANK 285 P OWER NSTALLATION UIDE...
-
Page 5: Audience
REFACE This guide is your primary source of information for setting up the e285 Power Bank. Audience This guide is useful for anyone installing e285 Power Bank. Organization This guide is organized as follows: Chapter Device Overview. Provides an overview of the e285 Power Bank. -
Page 6: Conventions And Acronyms
Europay MasterCard and VISA Liquid Crystal Display Near Field Communication Merchandise Return Authorization MSAM Micromodule-Size Security Access Module Payment Card Industry PIN Entry Device Personal Identification Number Subscriber Identity Module Universal Serial Bus Verifone Part Number 285 P OWER NSTALLATION UIDE... -
Page 7: Features And Benefits

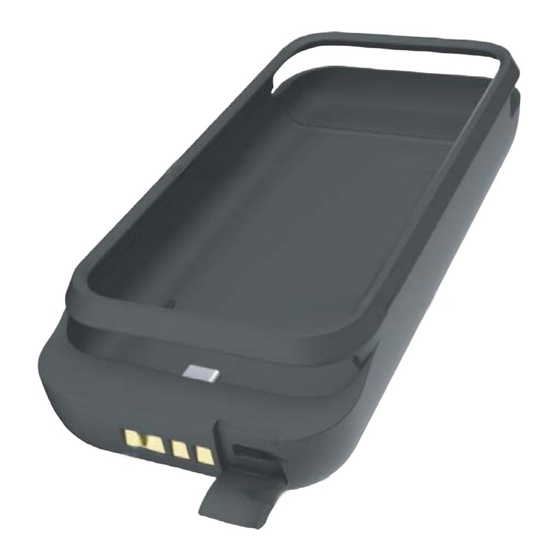

This e285 Power Bank provides an external battery to prolong the operating time of the terminal. e285 Power Bank is to increase battery capacity by 150% of its current value of e285 device. Verifone offers a "Holster" (ACC087-036-01-A) to allow the e285 Power Bank to be carried on a belt or on a lanyard. - Page 8 EVICE VERVIEW Features and Benefits • Testing and Compliance • Design enables access for card swipe • USB-C Port on the bottom allows the ability to charge via cable 285 P OWER NSTALLATION UIDE...
-
Page 9: Power Bank Location
• Do not use the terminal near water or in moist conditions. • Disconnect the power bank from the e285 before cleaning. Do not apply liquid near the contacts inside or on the bottom of the power bank. Inside the... -
Page 10: Unpacking The Shipping Carton
Save the shipping carton and packing material for future repacking or moving of the device CAUTION Do not use a damaged unit. If a component appears to be damaged, please notify the shipping company and your Verifone service provider immediately. 285 P OWER NSTALLATION... -
Page 11: Power Bank Features
• 4 White LED Indications • Battery Level Indicator Button • 1 Battery level indicator button to control turn on/off charging Verifone e285 from the Power Bank. Instructions for Following are the steps to use the power bank. NOTE Please fully charge the Power Bank before using. - Page 12 Top Cover Open of e285 Power Bank The Power Bank's LED indicator will light up to indicate the charging process has begun. e285 Power Bank LED state without any wall charger attached: • 1st LED represents 25% State of Charge •...
-
Page 13: Charge & Sync
76% to 99%. Once the 4th LED is solid, then the power bank is 100% charged. If the e285 Power Bank does not charge within 12 hours, then the power bank will enter protection mode and stop receiving power from the wall charger. -
Page 14: Charging Duration & Operating Temperatures
Indicator Button. • If e285 is removed for more than 30 minutes from the Power Bank. Holster for Verifone offers a "Holster" to allow the power pack to be carried on a belt or on a Verifone e285 lanyard. Power Bank... - Page 15 285 P OWER ETUP Important Safety Instructions • Do not put fingers or hands into the product. • Do not expose the power bank to rain or snow. • Do not use the power bank more than the mentioned output rating. Overload outputs above rating may result in a risk of fire or injury to persons.
- Page 16 285 P OWER ETUP Important Safety Instructions THIS PAGE IS INTENTIONALLY LEFT BLANK 285 P OWER NSTALLATION UIDE...
-
Page 17: Unit Power Requirement
HAPTER Specifications This chapter discusses power requirements, dimensions and other specifications of the e285 Power Bank. Unit Power Battery Output Capacity & Configuration Requirement • 3.8V/ Cell; 2700 mAh Li-ion (polymer) battery, 10.26Wh, 1S1P Input Capability • Cabled Input @ USB-C Receptacle Connector •... -
Page 18: Temperature
PECIFICATIONS Temperature • Output Voltage @ USB-C Plug Connector: 5V, 0.25V (5%) • Output Current @ USB-C Plug Connector: 1.0A required • Output Power @ USB-C Plug Connector: 5W Temperature • Storage Temperature • Discharge: –20°C to +60°C • Operating RH 5% to 95% non-condensing •... - Page 19 HAPTER Maintenance and Cleaning The e285 Power Bank device has no user-maintainable parts. It can, however, be cleaned. Your Power Bank is a product of superior design and craftsmanship and should be treated with care. The following suggestions will help you protect your warranty coverage.
-
Page 20: Surface Cleaning
AINTENANCE AND LEANING Surface Cleaning Surface To clean the device, use a clean cloth slightly damped with water and a drop or Cleaning two of mild soap. For stubborn stains, use alcohol or an alcohol-based cleaner. • Cleaning - Recommended cleaning agents are listed below. •... - Page 21 NOTE For international customers, please contact your local Verifone representative for assistance with your service, return, or replacement. Get the following information from the printed labels at the back of each e285 Power Bank to be returned: • Product ID, including the model and part number. For example, “e285 Power Bank”...
-
Page 22: Documentation
Shipping documentation, such as air bill numbers used to trace the shipment. • Model(s) returned (model numbers are located on the Verifone label at the back of the e285 Power Bank). Documentation Verifone produces the following documentation for the e285 Power Bank. When ordering, please take note of the part number. -
Page 23: Device Does Not Start
• Ensure that the e285 is properly installed into the power bank and fully seated on the connector. The Power Bank top case will not go ON if the e285 is not seated correctly. • Ensure that the power bank is charged fully by checking the LEDs on the rear of the Power Bank. -
Page 24: Battery Does Not Charge
ROUBLESHOOTING UIDELINES Battery Does Not Charge Battery Does Not The e285 Power Bank battery must initially receive a full charge to ensure proper Charge operation. • Allow the e285 Power Bank device to remain connected to the power pack or NOTE Qi charger for eight hours to ensure the battery receives a full charge. - Page 25 Verifone, Inc. 1-800-Verifone www.verifone.com e285 Power Bank Installation Guide Verifone Part Number DOC087-527-EN-A, Revision A...
