Neousys Technology POC-40 Series Quick Installation Manual

Quick Installation Guide
Warning
• Only qualified service personnel should install and service this
product to avoid injury.
• Observe all ESD procedures during installation to avoid damaging
the equipment.
1 Preparing tools
Unpack the equipment and make sure the following tools are
available and delivered contents are correct before you begin the
installation procedure.
1-1. User-provided tools
• Anti-static wrist wrap
1-2. Packing List
Item
Description
01
POC-40 series system
Drivers & utilities disc
02
3-pin pluggable terminal block
03
DIN-rail mount clip
04
05 Screw package
Gb Ethernet Port
4
The system offers two Gigabit Ethernet ports using Intel® I210
GbE controller. When plugged in and connected via the
Ethernet cable, the LED on the RJ45 connector indicate
connection status.

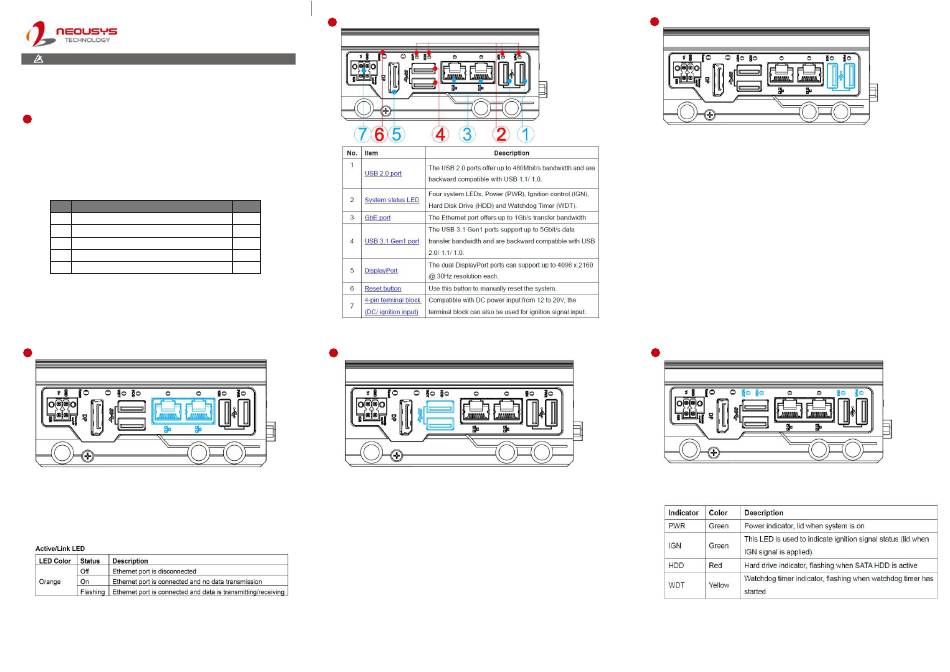

2 POC-40 Series Front Panel
POC-40 Series
Quantity
1
1
1
1
1
5
USB3.1 Gen1
The system offers two USB 3.0 (SuperSpeed USB) ports on its front
panel. They are implemented by native xHCI (eXtensible Host
Controller Interface) controller and are backward compatible with USB
2.0, USB 1.1 and USB 1.0 devices. Legacy USB support is also
provided so you can use USB keyboard/mouse in DOS environment.
xHCI driver is supported natively in Windows 10, therefore you do not
need to install xHCI driver in prior to utilize USB function.
3 USB2.0 Port
The USB2.0 ports are implemented via native xHCI (eXtensible
Host Controller Interface) and are backward compatible with USB
1.1 and USB 1.0 devices. Legacy USB support is also provided so
you can use USB keyboard/ mouse in DOS environment.
xHCI driver is supported natively in Windows 10, therefore you do
not need to install xHCI driver to utilize USB functions.
6 System Status LED
There are four LED indicators on the front panel: PWR, HDD, WDT and
IGN. The descriptions of these four LEDs are listed in the following table.
