Bentel Security BW-ODT Manual

BW-ODT
English PowerG outdoor mirror PIR motion detector with anti-masking
Italiano
Rilevatore di movimento PIR a specchio con antimascheramento, per
esterno, via radio, PowerG
Polski Lustrzany czujnik ruchu PIR z funkcją antymaskingu, do zastosowań
zewnętrznych
ENGLISH
1. INTRODUCTION
Note: Operations described in these instructions applies to BW control panels. For further information related to operations with a different control
panel, refer to the control panel's instructions.
The BW-ODT is a 2-way, wireless outdoor digital mirror PIR detector which includes the following features:
• Patented 8 independent quad PIR detectors (Octa-QUAD
processing for each of the 8 PIR detectors, as well as central motion processing that distinguishes between moving intruders and trees and bushes
in motion.
• Advanced Obsidian Black Mirror
• Optimum performance even in poor weather conditions such as snow, rain, dust, wind and direct sunlight
• Tamper protection prevents opening and removal from wall
• PowerG two-way Frequency Hopping Spread Spectrum FHSS-TDMA technology - provides robustness and reliability that is closer than ever to
wired systems
• Built-in link quality indicators enable installer to check signal quality without physically approaching the control panel, thus making installation faster
and easier.
• Robust housing with recessed window.
• Smart anti masking distinguishes between masking spray and rain.
• Alarm LED is visible in sunlight.
• Automatic termination of walk-test after 15 minutes.
• Microprocessor-controlled temperature compensation.
• Immunity to pets weighing up to 18 Kg (40lb), not pet alley – see Table 1
• Built-in swivel bracket
2. INSTALLATION
2.1 Installation
A. Bracket installation (see Figure 2 on page 11). Fix the bracket firmly on a stable wall or pillar. The orientation of the fixed bracket must be as
parallel as possible to the surveyed ground surface.
B. Adjust the detector's horizontal and vertical angles (see Figure 3 on page 12), according to the surveyed ground surface. The vertical angle
indicator position for various installation height and coverage distance combinations is detailed in Table 1 (the information refers to a relatively
flat surveyed area. Verify the correct installation by walk-test).
C. Fasten the detector to the bracket (see Figure 2 step 4).
Installation Notes: Do not obscure the detector field of view with large objects.
Table 1 - Vertical Adjustment Reference
Mounting Height
3.0m / 10 ft
2.5m / 8 ft
2.0m / 7 ft
1.5m / 5 ft
Note: The grayed-in cells in Table 1 are the installation alternatives recommended for further reducing false alarms from pets.
2.2 Battery Insertion
It is recommended to perform the first batteries insertion on a flat surface (see Figure 4 on page 13). After battery insertion, the LED will flash for
60 seconds and then the detector will enter a 15 minutes' local diagnostic mode.
2.3 Enrollment
Refer to the BW control panel's Installer Guide and follow the procedure under the "02:ZONES/DEVICES" option of the Installer Menu. A general
description of the procedure is provided in the following flow chart.
D-304957 BW-ODT Installation Instructions
TM optics (patent pending).
Coverage Distance
2m / 6.7ft 4m / 13ft 6m / 20ft
- 1 2
1 1 2
1 2 3
2 3 4
TM ) operating in true Quad configuration (patented) with true motion recognition (TMR)
8m / 26ft 10m / 33 ft
2 3
3 4
4 5
5 5
Bentel Security

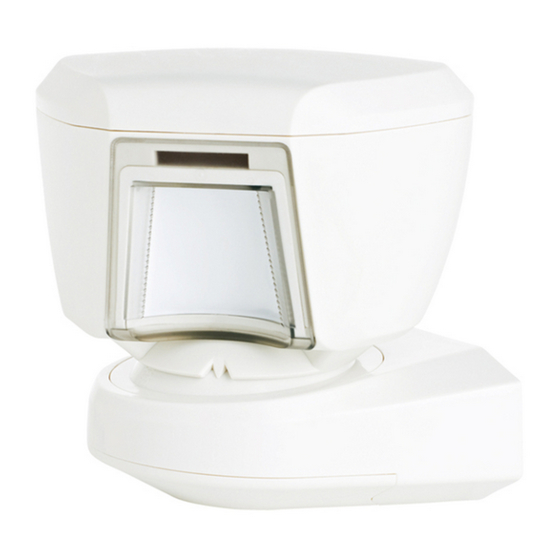

Figure 1. BW-ODT General View
Figura 1. Vista generale BW-ODT
Rysunek 1. BW-ODT Widok ogólny
12m / 39 ft
3
4
5
-
1
