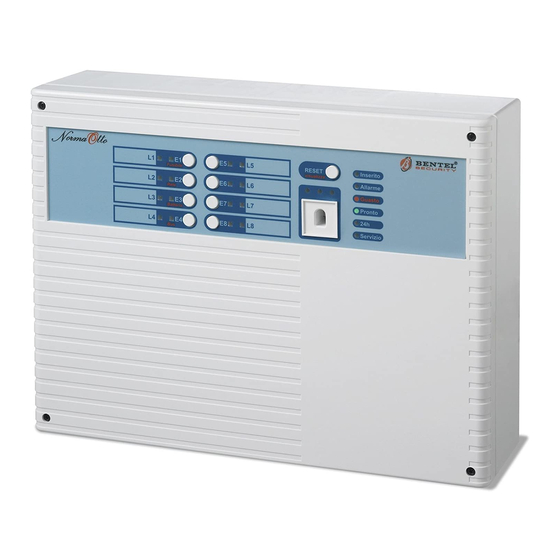

8 zones or 4 zones alarm control panel
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NormaOtto Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bentel Security NormaOtto Series

Summary of Contents for Bentel Security NormaOtto Series

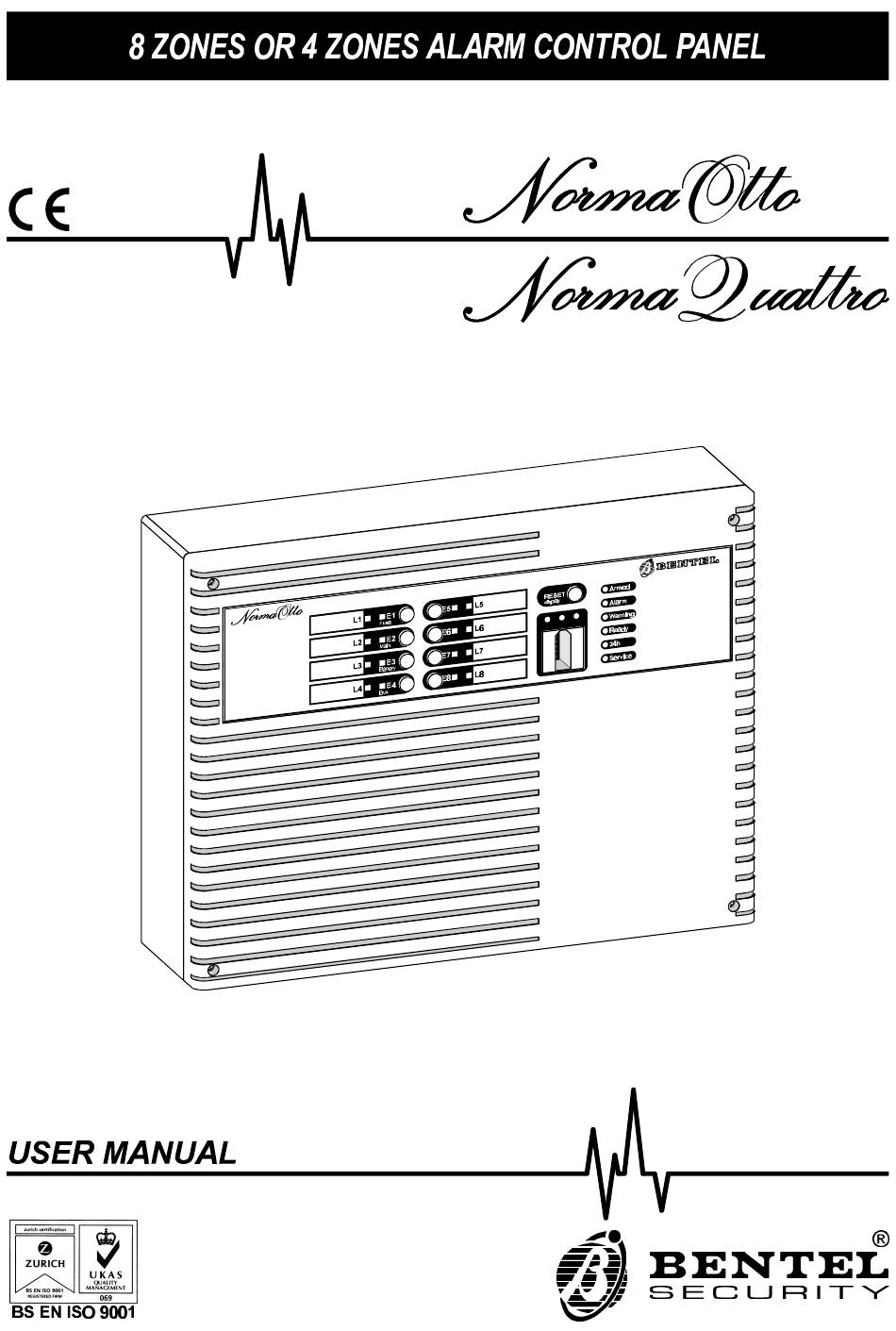

  • Page 2 Contents in this manual may be subject to change without notice and does not represent any obligation behalf of BENTEL srl. via Florida - Z.I. Valtesino 63013 - GROTTAMMARE (AP) ITALY USER MANUAL: Alarm control panel NormaQuattro and NormaOtto ISTNORMA8USO/UK 0.2 281100 V4.2 BUU...

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION The NormaQuattro and NormaOtto control panels . . . 5 Glossary of the technical terms ... . . 5 GENERAL DESCRIPTION The control panel ..... 7 The electronic key .
  • Page 4 Figure 1 Control panel system components. Alarm control panel NORMA4 and NORMA8...

  • Page 5: Introduction

    INTRODUCTION The NormaQuattro and NormaOtto control panels The NormaQuattro and NormaOtto control panels are available in 4 versions: NormaQuattro/N 4 zone control panel with mechanical key incorporated. NormaOtto/N 8 zone control panel with mechanical key incorporated. NormaQuattro/K 4 zone control panel with electronic key incorporated. NormaOtto/K 8 zone control panel with electronic key incorporated.
  • Page 6 ALARM - A danger signal which requires an immediate and adequate in- tervention on the part of the personnel. ELECTRONIC KEY - A key with a numerical code (4 billion combinations) enabling the controlling of the antitheft system. KEY READER - A device for reading the electronic key. CONTROL KEYPAD - A Keypad through which it is possible to operate all the functions of the control panel.

  • Page 7: General Description

    GENERAL DESCRIPTION The control panel Lights On the front panel there are a certain number of lights that indicate the condition of the alarm zones and the general condition of the system. In particular there are 2 lights for each alarm zone marked L1 .. L8 and E1 .. E8, which respectively indicate the condition of the entry zone and the con- dition of the exclusion.

  • Page 8: The Electronic Key

    24h: when lit up indicates the opening of the anti-sabotage zone; when flashing it indicates the memorization of the alarm on the anti-sabo- tage zone. Service: indicates the service mode of the control panel; if flashing it indi- cates the programming condition from the Keypad. Furthermore, in the electronic key versions there are 3 lights connected to the key reader.

  • Page 9: The Control Keypad

    The Control Keypad The Control Keypad allows the carrying out of all the operations on the control panel in the normal operative mode, moreover, it allows you to pro- gramme all the control panel functions during the installation phase. Lights On the Keypad there are: 2 leds for each zone marked L1 ..
  • Page 10 The PANIC code is utilized for the disarming under constriction: when you disarm the system using this code you activate the telephonic warning de- vice (if it is connected). The two codes of GROUP A and GROUP B permit the system, whether it is disarmed or armed, to exclude the relative partitioning groups.

  • Page 11: Operations

    OPERATIONS Description The major part of the basic operations can be carried out by the front panel of the control panel, by means of the key reader for the digital key and also by the Control Keypad. In the following paragraphs you will find detailed descriptions of all the basic operations, how they are carried out by means of the front panel, the Keypad and, if permitted, by the key reader.

  • Page 12: Total Arming Of The System

    Total arming of the system This operation means you can fully arm the system without excluding the partitioning groups. The total arming operation automatically reincludes possible excluded groups, whilst if a zone has been individually excluded it will not be rein- cluded.

  • Page 13: Partial Arming Of The System

    Partial arming of the system This operation allows the arming of the alarm system and at the same time excludes the zones belonging to a determined partitioning group. It is use- ful, for example, if you want to arm the system allowing however entry into a circumscribed zone of the protected area.

  • Page 14: Quick Arm Of The System

    Quick arm of the system It is possible to arm the system quickly from the Keypad by typing in a sin- gle Keypad key, obviously the operation is not valid for the disarming which will always need the code or the key. Operating from the Keypad superkey The quick arming of the system is carried out by keeping the key no.

  • Page 15: Forced Disarming

    Forced disarming This operation can be carried out only from the Keypad. The system is dis- armed as normal but at the same time the telephonic warning alarm is acti- vated (if it is connected). Operating from the Keypad The forced disarming is obtained by typing in the PANIC code followed by ENTER.

  • Page 16: Resetting Of The Alarm Memories

    Resetting of the alarm memories If an alarm has been set off in one or more zones there will be a memory of the said alarm indicated by the flashing of the relative leds of the zone. To cancel this signal the resetting of the alarm memories (reset) operation must be carried out.

  • Page 17: Extensive Visualization

    Extensive visualization The extensive visualization is a particular condition in which the leds of the zones and of the exclusions situated both on the panel as well as on the possible Control Keypads assume a different meaning to the normal one and they visualize respectively the alarm memories prior to the last reset operation and the faulty conditions.

  • Page 18: Individual Exclusion Of The Zones

    Operating from the Keypad superkey The extensive visualization is obtained by keeping key 5 pressed down for about 3 seconds; the acceptance of the command will be indicated by the appropriate acoustic signal. To complete the extensive visualization phase it is necessary to press any one of the keys.

  • Page 19: Activation Of An Immediate Alarm

    Activation of an immediate alarm The control panel has 3 alarms which can be activated immediately from the Control Keypad and which correspond to three methods of activating the alarm itself: - activation of siren and communicator; - activation of siren only; - activation of communicator only.
  • Page 20 Operating from the Keypad Typing one of the two group codes (GROUP A, GROUP B)followed by EN- TER will exclude the relative group. The reinclusion can take place in one of the following ways: re-entering the group code used for excluding; automatically after the prefixed patrol time, if the PATROL ON option has been activated (Patrol active);...

  • Page 21: User Codes Programming

    User codes programming Although the complete system programming is reserved to the installer the user can enter the programming procedure only for the part that pertains to the re-programming of the codes reserved to him Access to Programming Access to the programming phase is allowed by keying in the code USER- MAIN followed by the function key PRG.
  • Page 22 Insertion of a new code New code + Phase c) It is now possible to key in a new code. As each figure is keyed in, one of the leds indicating the figures still to inserted to have a valid code, will go off. Once the 5 digits of the code are keyed in, it is necessary to confirm by pressing ENTER.

  • Page 23: Notes

    Notes ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ ___________________________________________________________ FOR ASSISTANCE PLEASE CONTACT: Installation Company: Telephone: Address: Contact person: OPERATIONS...

  • Page 24: Operations Summary

    Operations summary OPERATION KEYPAD System total arming USER MAIN + USER + PANIC + System partial arming USER MAIN + USER MAIN + Quick arm of the system Super key System disarming USER MAIN + USER + Forced disarming PANIC + Alarm memory reset USER MAIN + Stop an alarm in progress...
