Summary of Contents for Void Sub Vantage

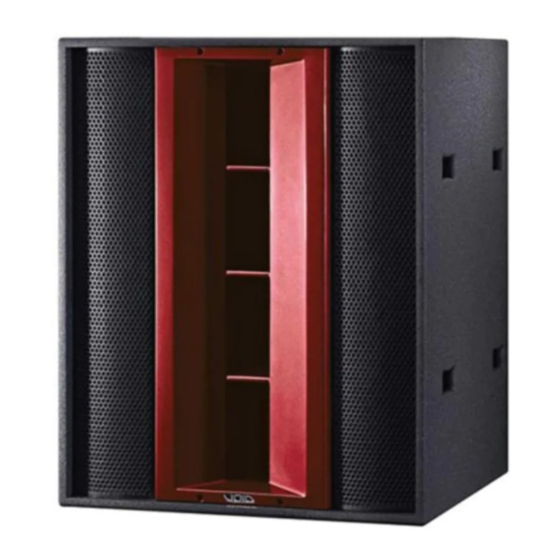

- Page 1 Sub Vantage Stylishly brutal bass U S E R G U I D E V 2 . 0...
- Page 2 For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.
-
Page 3: Table Of Contents
Key features Sub Vantage specifications Sub Vantage dimensions Cable and wiring Electrical safety Cable considerations for fixed installations Sub Vantage wiring diagram Bias Q5 speakON™ Grille removal and replacement Service Appendix UG10554-2.0 - Sub Vantage User Guide V2.0 Page 3... -
Page 4: Safety And Regulations
Void Acoustics Research Ltd for such as when the power-supply cord or plug is damaged, liquid reprocessing. -
Page 5: Unpacking And Checking
• If you need to place the Sub Vantage loudspeaker on a flat surface ensure you use a lint free product to protect the finish •... -
Page 6: About
In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability. -
Page 7: Sub Vantage Specifications
665 mm (26.2”) Weight 91.2 kg (201 lbs) Measured in half space AES2 - 1984 compliant Calculated 3.5 Sub Vantage dimensions 730 (26.7”) 665 (26.2”) 730 (26.7”) 730 (28.7”) Figure 3.1: Dimensions UG10554-2.0 - Sub Vantage User Guide V2.0 Page 7... -
Page 8: Cable And Wiring
We suggest using the following maximum copper cable lengths to keep level losses below 0.6 dB. 4 Ω load 2 Ω load Metric mm Imperial AWG 2.50 mm 13 AWG 18 m 4.00 mm 11 AWG 30 m 15 m UG10554-2.0 - Sub Vantage User Guide V2.0 Page 8... -
Page 9: Sub Vantage Wiring Diagram
LF link LF link 4.4 Bias Q5 speakON wiring Figure 4.2: Bias Q5 Bias Q5 Out 1 Output 4 x 15” LF 2 (2 Ω load to amplifier) Max parallel units UG10554-2.0 - Sub Vantage User Guide V2.0 Page 9... -
Page 10: Grille Removal And Replacement
Figure 5.2: Grill removal Step 3: To replace the grille simply reverse the process and remove the cable ties. Figure 5.3: Grille replacement UG10554-2.0 - Sub Vantage User Guide V2.0 Page 10... -
Page 11: Service
Before returning your faulty product for repair, please remember to get an R.A.N. (Return Authorisation Number) from the Void dealer who supplied the system to you. Your dealer will handle the necessary paperwork and repair. Failure to go through this return authorisation procedure could delay the repair of your product. -
Page 12: Appendix
(H) 908 mm x (W) 730 mm x (D) 665 mm (35.7” x 28.7” x 26.2”). Weight shall be 91.2 kg (201 lbs). The loudspeaker system shall be a Void Acoustics Sub Vantage. UG10554-2.0 - Sub Vantage User Guide V2.0... - Page 13 H E A D O F F I C E Void Acoustics Research Ltd, Unit 15, Dawkins Road Industrial Estate, Poole, Dorset, BH15 4JY United Kingdom Call: +44(0) 1202 666006 Email: info@voidacoustics.com voidacoustics.com Void Acoustics Research Limited is a company registered in England and Wales registration number 07533536...
