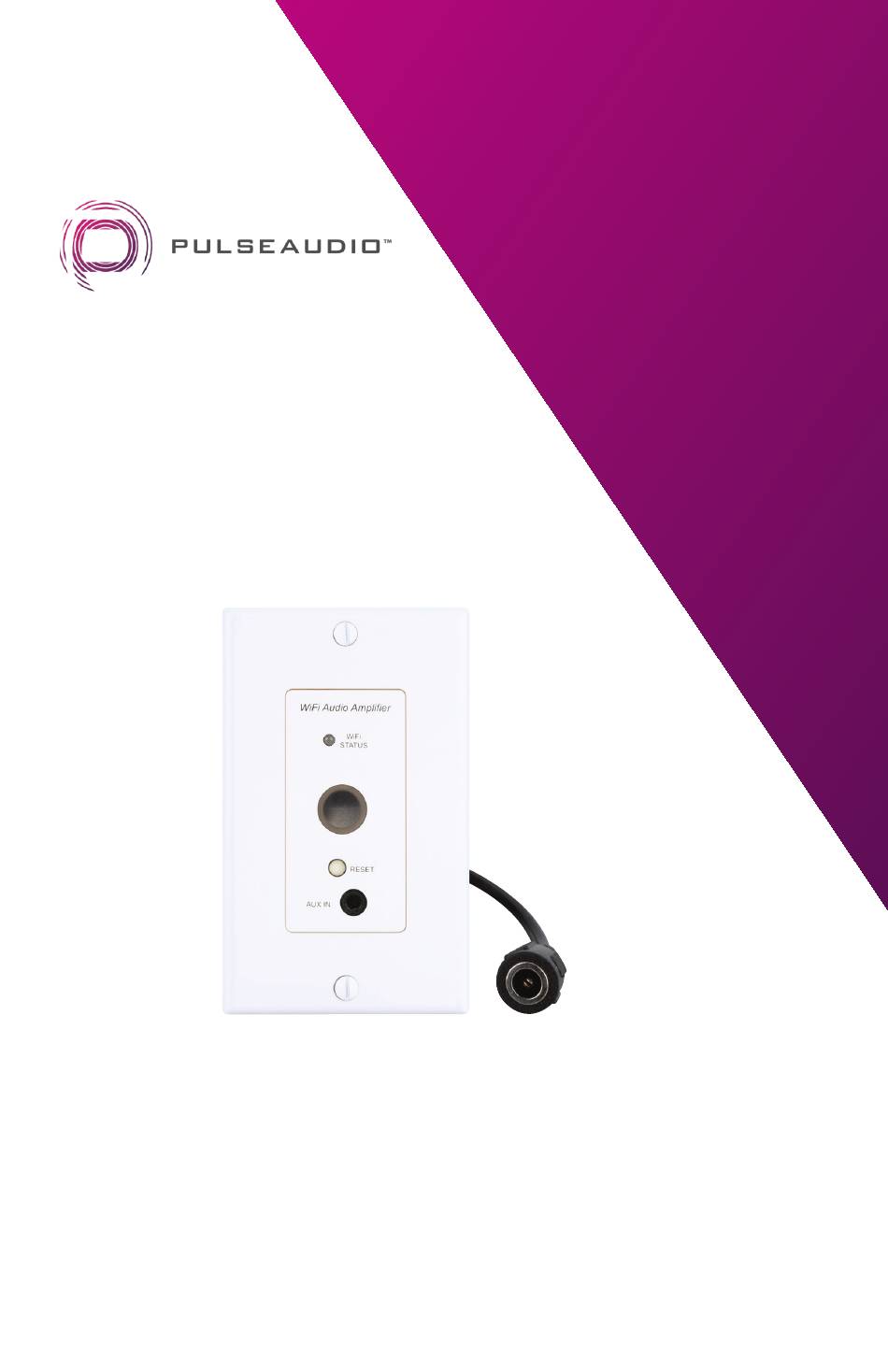

- Page 1 30W, 2 Channel In-Wall Wi-Fi Streaming AMPLIFIER PART NUMBER PA230SWA BUILT-IN 2X30W AMPLIFIER vanco1.com | 800.626.6445...
-
Page 2: Dear Customer
4. Do not place unit near flames. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vanco International, LLC is under license. Other trademarks and trade names are those of their respective... - Page 3 FEATURES The PulseAudio PA230SWA is an in-wall streaming audio receiver with a built in 2x30W amplifier in a single gang wall plate form factor, that creates a simple distributed audio system to stream music over a wireless internet connection. Install in one zone or multiple zones, a great solution to stream...
-
Page 4: Specifications
SPECIFICATIONS Wireless Network ..........IEEE802.11 b/g/n 2.4G Power Input ............DC 24V Output Power .............2x30W; 8ohm Audio Source Input ..........3.5mm Phone Jack Frequency Response ........20Hz to 20kHz EQ (Bass/Treble) ..........±10db Music Format ............MP3/WMA/AAC/AAC+/ALAC/FLAC/ APE/WAV OS ................iOS, Android Application ............PASTREAM Music Platforms ..........Spotify, Qplay, TuneIn, iHeartRadio, Tidal, and Napster;... -
Page 5: Panel Descriptions
PANEL DESCRIPTIONS Wi-Fi STATUS LED a. Blue light flashes slowly: System initialization b. Blue light flashes quickly: WiFi connecting / Allow WiFi connection setting c. Green light: WiFi connected Built in IR Receiver – use the included IR remote to control power, volume, bass, treble, etc. - Page 6 REMOTE Unsupported Mute Power ON/OFF Selection AUX Unsupported interface Volume up Next song Previous song Volume down Unsupported Unsupported Selection WiFi interface BASS+: Bass increase BASS -: Bass reduction TREBLE +: Treble increase TREBLE-: Treble reduction Track settings Flat: Restore original d.bass: BASS increase by 6dB...
-
Page 7: Connect And Operate
CONNECT AND OPERATE Aux Wire Speakers PA230SWA The PA230SWA is a device that receives internet streaming music or other wireless music from a Wi-Fi enabled device. Multiple units can be used to create a distributed audio system. Connect speakers to the output of the PA230SWA using the provided 4-pin phoenix terminal connector OPTIONAL: Connect a source (input) for wired audio connection. - Page 8 CONNECT TO WIFI AND CONFIGURE THE DEVICE Follow the steps below to play content from a mobile device or streaming app to the PA230SWA over a 2.4G wireless network. NOTE: Streaming apps may require internet connectivity. 1. Open the PASTREAM app, click on Add Device 2.
- Page 9 5. Click Next 6. Go to the WiFi settings of your device and connect to the PA230SWA directly and return to the app 7. App will search for other networks 8. Select the network you wish to connect and use the PA230SWA with, type in the password if needed and click Continue 9.
- Page 10 CUSTOMIZING DEVICE SETTINGS Through device settings you can get technical information on or change the name of the device. To Rename a Device: 1. Click “Gear” icon 2. Click “Rename” 3. Click “Custom…” 4. Enter new name of the device and Click “Confirm” 5.
-
Page 12: Limited Warranty
Should this product, in Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. -
Page 13: Safety And Notice
SAFETY AND NOTICE The PA230SWA has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, the PA230SWA should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 14 TECHNICAL SUPPORT In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to techsupport@ vanco1.com. When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call.
- Page 16 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at pulseaudio1.com...
