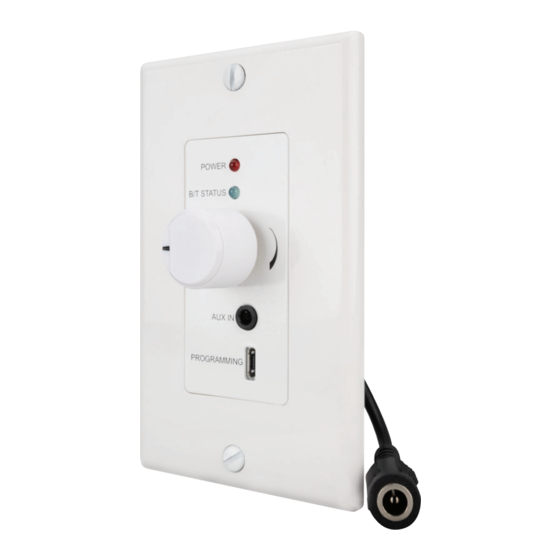

- Page 1 30W, 2 CHANNEL, IN-WALL ADDRESSABLE BLUETOOTH AMPLIFIER PART NUMBER PA230BWA In-wall addressable Bluetooth audio receiver with a built in 2x30W amplifier vanco1.com | 800.626.6445...
- Page 2 4. Do not place unit near flames. The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vanco International, LLC is under license. Other trademarks and trade names are those of their respective...
- Page 3 FEATURES The PulseAudio PA230BWA is an in-wall addressable Bluetooth audio receiver with a built in 2x30W amplifier in a single gang wall plate form factor, that creates a simple distributed audio system to stream music over Bluetooth. Equipped with a Class D, 60 watt in-wall power amplifier that supports 4 Ohm and 8 ohm speakers.
- Page 4 CONNECT AND OPERATE Front View Side View To Speakers Power Audio Source NOTE: Ensure all speaker(s) and power wires are run in accordance to local laws and regulations. Before inserting the amplifier into the electrical box and wall, either note or remove the Bluetooth password found on the sticker on the back of the unit.
- Page 5 CONFIGURATION DEVICE NAME AND PASSWORD Connect a Micro USB Cable from the PA230BWA to a computer’s USB port Launch the PA230BWA Configuration Software tool found on the product page at www.vanco1.com (under the downloads tab) Select the corresponding Com Port from the drop-down menu Enter the new device name and click Write Enter a pin code/password that will be used to pair the PA230BWA to a Bluetooth device, and click Write...
- Page 6 SPECIFICATIONS Audio Inputs ............Bluetooth v5.0 with apt-X; Stereo 3.5mm Range..............30M max, open space Amplifier Type ............Class D Power Ouput ............30W per channel (@RL= 4 ohm) THD+N ..............1% (@RL 4ohm, f=1kHz) Min. Load Resistance ........4 ohm Power Source .............24DVC Audio Priority .............Bluetooth > Aux In Weight ..............0.8 lbs Dimensions ............1.6”...
- Page 7 Should this product, in Vanco’s opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those...
- Page 8 ® Vanco International 506 Kingsland Drive Batavia, Illinois 60510 call: 800.626.6445 | fax: 630.879.9189 visit: www.vanco1.com A brand from Learn more at pulseaudio1.com...
