  • Page 1 06400 Operating instructions Read these instructions carefully before using the thermometer CAUTION: read the warnings Rev. 9/6400-2021-09...

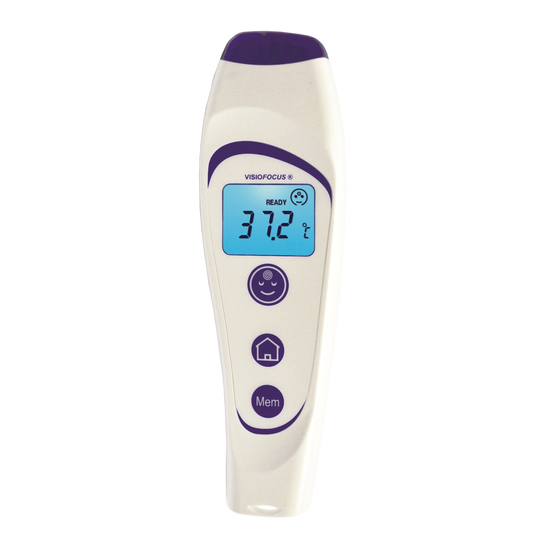

  • Page 2 Fig. 1 1. Aiming light 2. Waveguide 3. Sensor (at the bottom of the waveguide) 4. Aiming light 5. LCD display 6. FACE button for forehead temperature readings 7. HOME button for other readings 8. MEMORY button 9. Protective cap 10.
  • Page 3 ® ld’s first non-contact thermometer) -. VisioFocus is truly easy to use. It is capable of measuring a child or adult’s tempera- ture without ever coming into contact with the skin: just bring it close to the forehead, at the distance that the thermometer itself will tell you. VisioFocus does not need to be placed in any parts of your child’s body.
  • Page 4 If water seeps into the thermometer, contact your Dealer immediately for Technical Service. 15. Do not use VisioFocus on a subject making a call with a mobile or cordless telephone or in the presence of strong electromagnetic fields.
  • Page 5: How It Works

    6. When taking your own temperature, use a mirror, or the black screen of a smartphone, or, if you have a child over six years of age, you can teach him how to use VisioFocus. 7. Since it never comes into contact with the body, VisioFocus does not require any disposable protection covers.
  • Page 6 • While keeping the VisioFocus perpendicular to the center of the forehead, move it in or back away from the forehead until the temperature reading is set squarely between the two arches (fig. 3): Fig.
  • Page 7 4.3 Readings of skin surface temperature VisioFocus can also scan the skin surface temperature: this can be useful to monitor the temperature of inflammations, ulcers, wounds (for example on diabetic patients and under control of your physician).
  • Page 8: Room Temperature

    4.4 Other readings (non-medical use) VisioFocus can also be used to read the tem- Fig. 8 perature of objects, food and liquids in the 1,0- 80,0°C (33.8-176.0°F) temperature range. For example, you can take the temperature of: 1 a baby’s feed bottle (fig. 8), 2.
  • Page 9 • with display off when in stand-by mode (“Energy Saving”, off ) or always on (“Peak Performance” - on If necessary, these settings can be modified as follows: 1. while the thermometer is off or in stand-by mode, press the “Mem” button and hold it down;...
  • Page 10: Replacing The Batteries

    ternal wall) or wardrobe with uniform temperature and at a point approximately 80/150 cm (30 to 60 inches) from the floor. Press the “home” button (fig. 10); Fig. 9 Fig. 10 MQCS MQCS • once the right distance is reached (temperature value between the arches, fig. 6), re- lease the button: the lights flash slowly and the display shows the room temperature.
  • Page 11 10. CLEANING CLEANING THE WAVEGUIDE: the thermometer waveguide (fig. 1) is very delicate. Therefore, when the thermometer is not being used, we recommend that you always keep the cap on. However, if you need to remove dust or dirt from the waveguide or sensor at its base, use a cotton swab that has been slightly dampened with alcohol.
  • Page 12 SOLUTION: - wait until the AQCS countdown has run its course without touching the thermometer, or - perform an MQCS (par. #8). DESCRIPTION: while in stand-by mode, the room temperature displayed is accompanied by the symbol MQCS or AQCS. MEANING: the thermometer has undergone quick automatic or manual calibration.
  • Page 13: Troubleshooting

    Messages about the detected temperature DESCRIPTION: the projection/display shows «Hi.2» and the value alternately when you press the “face” button. MEANING: ATTENTION! The temperature is 40,0°C/104.0°F or more. DESCRIPTION: the projection/display reads “Hi.2”. PROBLEM: - reading with “face” button: the temperature detected exceeds the limit for operation with this button (>43,0°C / >109.4ºF).
  • Page 14: Technical Characteristics

    your Dealer right away for technical service. 5.The thermometer temperature reading is too low: - make certain that the conditions outlined in the warnings (par. #2) have been met; - check that the waveguide (fig. 1) is not soiled or damaged; if it is, clean it as indi- cated in par.
  • Page 15 +70°C (158°F). - Internally powered equipment; mode of operation: continuous. - The VisioFocus LEDs emit low light radiation in compliance with EN 62471. - Measuring system tested in hospitals, private clinics and medical offices. Clinical accuracy, characteristics and procedures are available from the manufacturer on re-...
  • Page 16 Tecnimed srl, P.le Cocchi, 12 - 21040 Vedano Olona (VA) - Italy is the manufacturer of the VisioFocus 06400 non-contact clinical infrared thermometer. TECNIMED guarantees that VisioFocus 06400 meets all the provisions applicable in the Regulation (UE) 2017/745. VisioFocus 06400 is a class IIa medical device manufactured following appro-...
  • Page 17: Warranty

    Crossed-out wheeled bin (WEEE and batteries) Instructions for disposal: this product contains electrical and electronic components and batteries that may contain materials which, if disposed with general waste, could be damaging to the en- vironment. Residents of the European Union must follow specific dis- posal or recycling instructions for this product.
  • Page 18 Product name: VisioFocus® Model: 06400 Classe IIa medical device Patents: US 7,001,066 - US 7,651,266B2 - US 8,128,280 - US 8,821,010 - EP 1.283.983 - EP 1.886.106 - EP 2577242(B1) - KR 10-1898897 - CN 103026192B. Other international patents pending.
