VisioFocus mini 06700 Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

06700
EN
Operating instructions
Read these instructions carefully before using
the thermometer
CAUTION: read the warnings
Rev. 9/6700-2021-09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the mini 06700 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VisioFocus mini 06700

Summary of Contents for VisioFocus mini 06700

  • Page 1 06700 Operating instructions Read these instructions carefully before using the thermometer CAUTION: read the warnings Rev. 9/6700-2021-09...

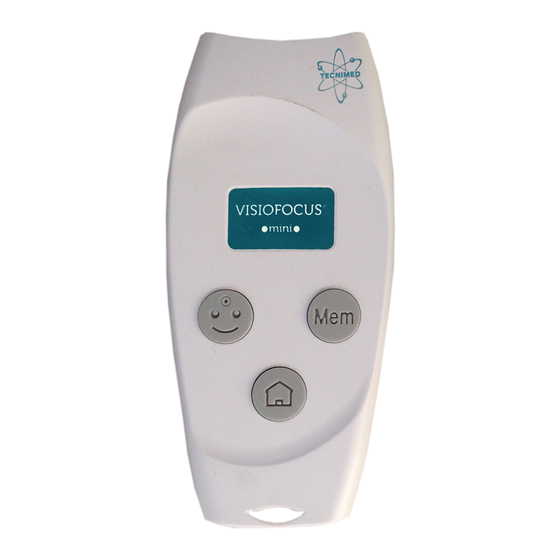

  • Page 2 Fig. 1 1. Aiming light 2. Waveguide 3. Sensor (at the bottom of the waveguide) 4. Aiming light 5. “FACE” button LED 6. “FACE” button for forehead temperature readings 7. “HOME” button LED 8. “HOME” button for other readings 9. MEMORY button 10.
  • Page 3 - and of VisioFocus ® VisioFocus MINI is truly easy to use. It is capable of measuring a child or adult’s tem- perature without ever coming into contact with the skin: just bring it close to the fore- head, at the distance that the thermometer itself will tell you.
  • Page 4 If water seeps into the thermometer, contact your Dealer immediately for Technical Service. 15. Do not use VisioFocus MINI on a subject making a call with a mobile or cordless telephone or in the presence of strong electromagnetic fields.

  • Page 5: How It Works

    6. When taking your own temperature, use a mirror, or the black screen of a smartphone, or, if you have a child over six years of age, you can teach him how to use VisioFocus MINI. 7. Since it never comes into contact with the body, VisioFocus MINI does not require any disposable protection covers.
  • Page 6 4.1 Taking the body temperature: FOREHEAD • At the first use, insert 2 AAA batteries as explained at #9. • Approach VisioFocus MINI to the forehead. • Press the “face” button and hold it down. The two aiming lights and the light of the “face”...
  • Page 7 NOTE: skin surface temperature is NOT body temperature. To measure body tempe- rature, proceed as described in par. 4.1. 4.4 Other readings (non-medical use) VisioFocus MINI can also be used to read the temperature of objects, food and liquids in the 1,0-80,0°C (33.8-176.0°F) temperature range. Fig. 7 For example, you can take the temperature of: 1 a baby’s feed bottle (fig.

  • Page 8: Room Temperature

    wait 30 min. before taking another reading. Proceed as you would for a forehead reading but press the “home” button; the projection will appear on the surface and the light of the “home” button will turn on. After the measurement, the projection of the temperature value will remain visible for about 12 seconds.
  • Page 9 and after about 8 seconds it changes showing the settings in sequence: 2. When the new desired setting appears, release the button. Only one setting can be modified at a time. Note: - if the thermometer was produced with the sole internal temperature setting, the ORAL, RECTAL, AXILLA and CORE settings would not be available for changing.

  • Page 10: Replacing The Batteries

    performed without the countdown if, for example, you are moving between rooms with different temperatures. This system enables the thermometer to take sufficiently accurate readings. The MQCS is possible only if the room temperature is in the 10,0-45,0°C (50.0- 113.0°F) temperature range. 9.
  • Page 11 11. MEANING OF MESSAGES Messages about batteries DESCRIPTION: the message “bAt” is shown in alterna- tion with the temperature value. PROBLEM: the batteries are running low but it is still possible to take several readings. SOLUTION: obtain new batteries for changing them when the signal “E.1”...
  • Page 12 DESCRIPTION: the projection shows «Lo.5» and the value alternately. PROBLEM: - reading with “face” button: the room temperature is between 10,0 and 15,9°C (50.0/60.6ºF). - reading with “home” button: the room temperature is between 5 and 9,9°C (41/48.2ºF). SOLUTION: the temperature reading can be taken but accuracy is not guaranteed.

  • Page 13: Troubleshooting

    12. TROUBLESHOOTING 1. The projection does not turn on: batteries are completely dead or incorrectly inserted; replace or reinsert them (par. #9). 2. The temperature is not projected between the two dots: the unit is not at the cor- rect distance; move the thermometer forward or back until the projected temperature falls precisely between the two dots (fig.
  • Page 14 +40°C (60.8 and 104°F). Store at a temperature not lower than -25°C (-13°F) or higher than +70°C (158°F). - Internally powered equipment; mode of operation: continuous. - The VisioFocus MINI LEDs emit low light radiation in compliance with EN 62471.
  • Page 15 TECNIMED guarantees that VisioFocus MINI 06700 meets all the provisions applicable in the Regulation (UE) 2017/745. VisioFocus MINI 06700 is a class IIa medical device manufactured following appro- priate production processes in accordance with an EN ISO 9001:2015 and EN ISO...

  • Page 16: Warranty

    Keep dry Crossed-out wheeled bin (WEEE and batteries) Instructions for disposal: this product contains electrical and electronic components and batteries that may contain materials which, if disposed with general waste, could be damaging to the en- vironment. Residents of the European Union must follow specific dis- posal or recycling instructions for this product.
  • Page 17 Product name: VisioFocus® MINI Model: 06700 Classe IIa medical device Patents: US 7,001,066 - US 7,651,266B2 - US 8,128,280 - US 8,821,010 - EP 1.283.983 - EP 1.886.106 - EP 2577242(B1) - KR 10-1898897 - CN 103026192B. Other international patents pending.
