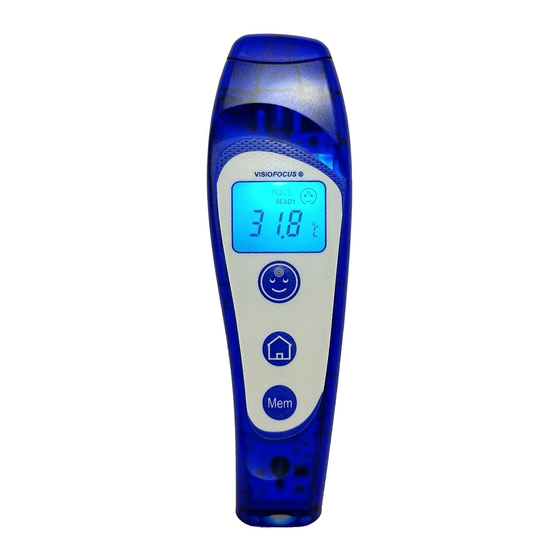

PRO
06480
Manuale d'Uso
IT
Leggere attentamente le
presenti istruzioni prima di
usare il termometro
User Manual
EN
Read these instructions
carefully before using
the thermometer
Mode d'Emploi
FR
Lire attentivement
les instructions avant
d'utiliser le thermomètre
Seguire le istruzioni per l'uso /
Follow instructions for use /
Suivre les instructions
d'utilisation
Riferirsi al manuale d'uso /
Refer to the user manual /
Reportez-vous au mode
d'emploi
!
ATTENZIONE: leggere le
avvertenze / ATTENTION: read
the warnings / ATTENTION: il y
a des précautions d'emploi
Advertisement
Table of Contents
Related Manuals for VisioFocus PRO
Summary of Contents for VisioFocus PRO
- Page 1 06480 Manuale d’Uso Leggere attentamente le presenti istruzioni prima di usare il termometro User Manual Read these instructions carefully before using the thermometer Mode d’Emploi Lire attentivement les instructions avant d’utiliser le thermomètre Seguire le istruzioni per l’uso / Follow instructions for use / Suivre les instructions d’utilisation Riferirsi al manuale d’uso /...
- Page 2 Fig. CALIBRATE VISIOFOCUS: at start or at room change or if appears press together and release appears. Within 10 sec open the cap, press and focus the projection on an internal wall far from windows and heat or cold sources; release and wait for the projection to flash slowly.
- Page 3 (i.e. the presence of earwax during a tympanic measurement or the displacement of the thermometer during the armpit or oral measurement). With VisioFocus PRO the user can be sure of having the total control on all measurements made in the hospital ward.
- Page 4 2.1 Precautions To avoid reading anomalies, use VisioFocus PRO according to this user manual. Use VisioFocus PRO in a draft-free room, at a steady temperature between 16 and 40°C (60.8 and 104°F). If the thermometer was stored in another room (or even in a drawer, etc.), before using it, run the manual calibration procedure (MQCS –...
- Page 5 If water seeps into the thermometer, contact your Dealer immediately for technical service. Do not use VisioFocus PRO on a subject making a call with a mobile or cordless telephone or in the presence of strong electromagnetic fields.
-
Page 6: How It Works
3. HOW IT WORKS VisioFocus PRO detects the infrared radiation naturally emitted by the body and, in particular, from the human forehead. The forehead is the ideal site for taking a temperature reading because it is crossed by the temporal artery which receives blood flowing from the aorta and carotid artery. - Page 7 The display starts to show the temperature, together with the symbol • While keeping the VisioFocus PRO perpendicular to the center of the forehead, move it in or back away from the forehead until the temperature reading is set squarely between the two arches (fig.
- Page 8 if the thermometer is too far away, or too close, the temperature will not fall between the two arches (fig. 4 and 5). Fig. Fig. near • When you see the temperature at the midpoint between the two arches (fig. 6), the thermometer is at the right distance: release the button and keep the projection flashes and read the temperature value.
- Page 9 (fig. 8). Fig. 4.4 Other readings In “DOCT” mode, using the “HOME” button, VisioFocus PRO can also be used 1) read the temperature of objects and liquids in the 1-80°C (33.8-176°F) temperature range. For example: canteen meal, liquids, blood bag, incubator, professional tools, room temperature, etc.;...
-
Page 10: Room Temperature
5. ROOM TEMPERATURE When the thermometer is in stand-by, the room temperature and the symbol flash and remain displayed automatically for 45 minutes (DOCT mode) or 30 minutes (NURS mode) after the last reading is taken. To display the room temperature on the backlit display, while the thermometer is in stand-by mode, press the “Mem”... - Page 11 The current settings are highlighted by the green backlight. • When the new desired setting appears, release the button. The purple backlight will turn green. Only one setting can be modified at a time. NOTES: - The measurement of the body temperature must be taken always at the centre of the forehead (par.
- Page 12 • within 10 seconds focus the thermometer on an internal wall (not the inside of an external wall) or wardrobe with uniform temperature and at a point approximately 80/150 cm (30 to 60 inches) from the floor. Press the "HOME” button (fig.
- Page 13 9. MEANING of DISPLAY MESSAGES DESCRIPTION: during normal operation, the symbol appears on the display. PROBLEM: the batteries are running low but it is still possible to take several readings. SOLUTION: obtain new batteries for changing them when the signal E.1 (below) appears.
-
Page 14: Troubleshooting
DESCRIPTION: the projection/display reads "Lo.5”. PROBLEM: the room temperature is too low (below 10°C/50°F if you've pressed the “FACE” button or below 5°C/41°F if you've pressed the “HOME” button). SOLUTION: move to another, warmer room and, if you are taking the body temperature, wait for the stabilization of the device and of the subject. -
Page 15: Replacing The Batteries
in the warnings have been met (par. #2). The thermometer appears blocked, for instance, some lights remain on for longer than 2 minutes: reset the thermometer by removing and reinserting the batteries. 11. REPLACING the BATTERIES • Set your thumb in the oval hollow on the Fig. -
Page 16: Technical Characteristics
IEC 60601-1-2 standards. Internally powered equipment for continuous operation. The VisioFocus PRO LEDs emit low light radiation in compliance with IEC 62471. Tecnimed srl, P.le Cocchi, 12 - 21040 Vedano Olona (VA) - Italy undertakes full responsibility for this product's compliance with the reference standards. - Page 17 Fig. Fig. Troppo lontano / Too far / 90° Trop loin Fig. Troppo Fig. vicino / Too near / Trop près Fig. Distanza corretta / Correct distance / Bonne distance Distanza corretta e termometro perpendicolare al centro della fronte / Correct distance and thermometer perpendicular to the forehead / Fig.
