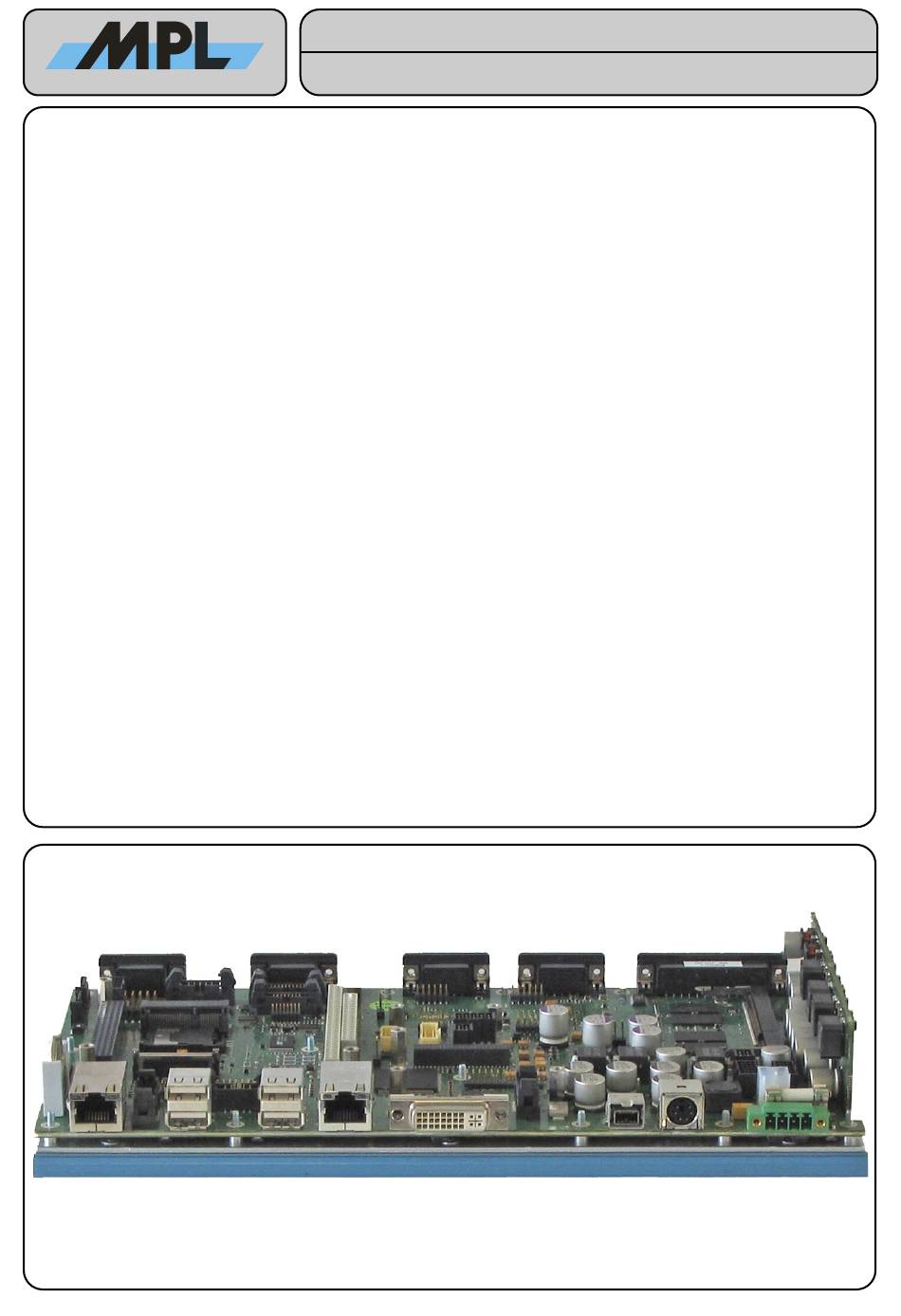

MPL PIP19 Technical Reference Manual

High-Tech • Made in Switzerland
PACKED INDUSTRIAL PC WITH CORE (2) DUO PROCESSOR
The PIP is a low power, highly integrated rugged industrial PC with a specially designed aluminum housing. This
allows the PIP to operate in a standard or also in a harsh environment without fan or ventilation holes. The
design integrates standard connectors for easy connection. It can be used for any PC application where a
complete solution is needed. The PIP is 100% PC/AT compatible, and can easily be mounted on a 35 mm DIN
rail.
The PIP housing offers space for a 2.5 inch hard disk and a CD-ROM drive. With the integrated PC/104(-PLUS)
interface and the PCI-Express Mini Card Slot there are flexible expansion possibilities available. Fully bootable
FLASH disks are supported for projects where hard disks cannot be used. Particular precautions have been
taken that the EMC for the entire system is within the CE and FCC limits.
All these features make the PIP the ideal solution for the industry wherever a flexible, rugged and durable
complete Industrial PC is needed.
Features:
PIP19: Celeron M 423 1.06 GHz with 1 MByte
●
Level2 Cache
PIP20: Core Duo L2400 1.66 GHz with 2 MByte
●
Level2 Cache
PIP22: Core 2 Duo L7400 1.5 GHz with 4 MByte
●
Level2 Cache
PIP23: Core 2 Duo T7400 2.16 GHz with 4 MByte
●
Level2 Cache
Intel Mobile Technology components
●
Dual Channel DDR2-667 memory
●
Up to 3 GB memory with 1 GB soldered down
●
Suspend to Disk (S4) support
●
3D graphics with up to 224 MByte shared memory
●
2 Ethernet ports with up to 10M/100M/1G Bit/s
●
Up to 2 FireWire 1394b ports (800 MBit/s)
●
Up to 6 USB 2.0 ports (480 MBit/s)
●
©2012 by MPL AG
PIP19 / PIP20 / PIP22 / PIP23
Technical Reference Manual
2 SATA-I ports (150 MByte/s)
●
1 Ultra DMA-100 IDE port
●
1 MByte Firmware Hub
●
Four PC/104-PLUS slots
●
Super-IO watchdog timer with hardware reset
●
capability
Parallel port (SPP, EPP, ECP) with external floppy
●
disk capability
2 serial ports with RS232 interface
●
2 serial ports with RS232 or RS485 interface
●
(optional)
UPS (optional)
●
Galvanically isolated power input (optional)
●
AC'97 Codec (optional)
●
CAN interface (optional)
●
RoHS compliant
●
