MPL PIP8 User Manual

Packed industrial pc with intel pentium iii processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

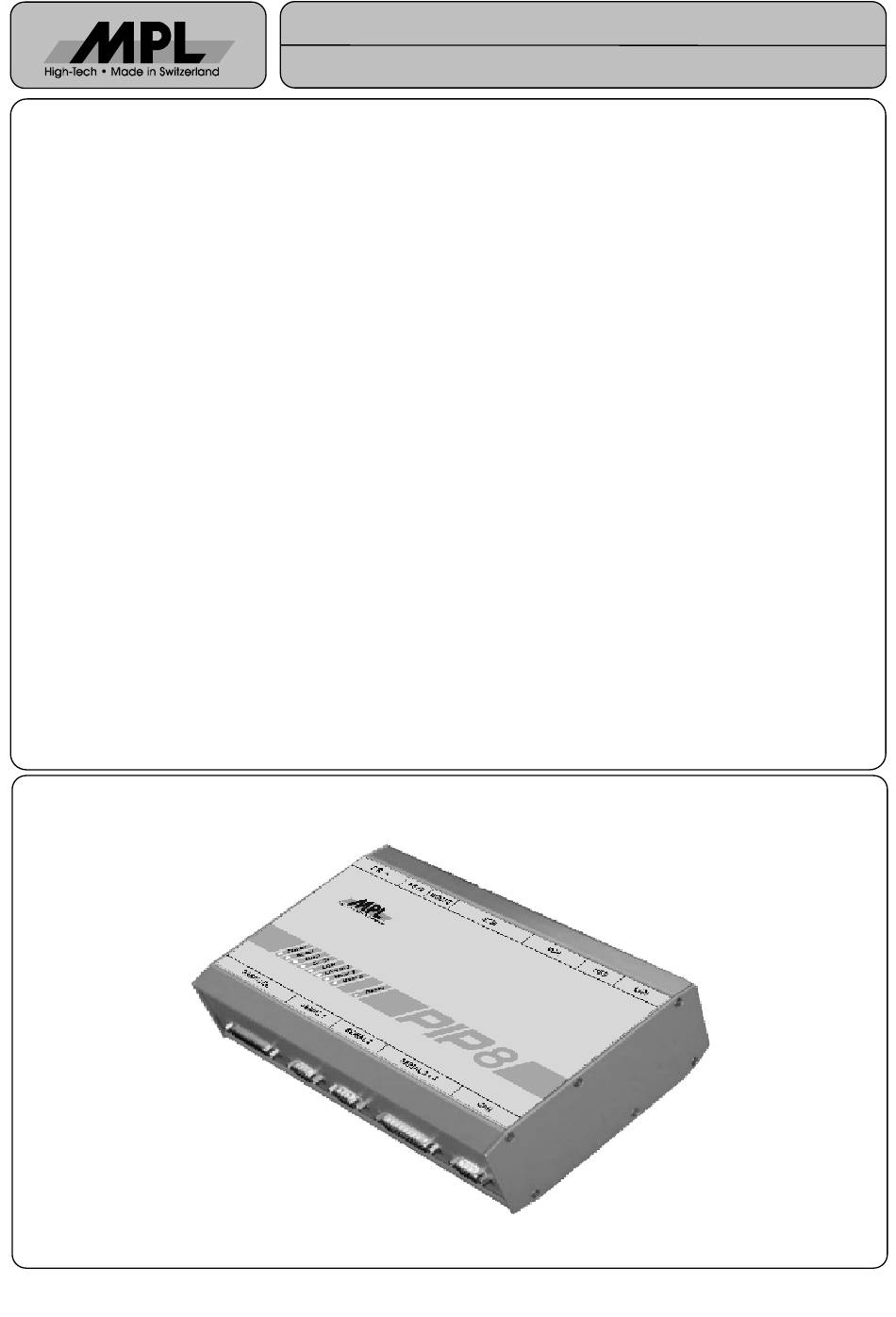

PACKED INDUSTRIAL PC WITH INTEL PENTIUM III PROCESSOR
The PIP8 is a highly integrated robust industrial PC with a specially designed high quality aluminum
housing. This allows the system to operate without fan or ventilation holes. The design integrates standard
connectors for easy connection. It can be used for any PC application where a complete solution is needed.
The PIP8 can be used in a standard or in a rugged operating environment, is 100% PC/AT compatible and
can easily be mounted on a 35mm DIN rail.
The PIP8 housing offers space for a 2.5 inch hard disk and a slim-line floppy disk drive. With the integrated
PC/104 interface flexible expansion possibilities are available. Fully bootable FLASH disks are supported for
projects where hard disks or floppy disks cannot be used. Particular precautions have been taken that the
EMC for the entire system be within the CE and FCC limits.
All these features make the PIP8 the ideal solution for the industry wherever a flexible, rugged, and durable
complete Industrial PC is needed.
Features
•
Low power Pentium
•
Processor speed 700 MHz
•
Up to 256 Mbytes SDRAM
•
Integrated SXGA graphics controller
•
CRT and panel support
•
Integrated 10/100 Mbit/s Ethernet controller
•
Integrated SCSI-2 Host Controller
•
PC/104 and PC/104+ interface
•
BIOS source code owned by MPL
© 2005 by MPL AG
®
III processor
PIP8
USER MANUAL
•
M-Systems DiskOnChip
•
Multipurpose socket
•
Isolated CAN bus interface
•
2 USB ports
•
Integrated 2.5 inch HDD and FDD
•
Four RS232 ports
•
2 isolated half duplex RS485 ports (optional)
•
1 isolated full duplex RS422 port (optional)
•
Integrated temperature sensor
•
Wide supply voltage range
1
®
2000 Support
MEH-10089-001 Rev. D

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIP8 and is the answer not in the manual?

Questions and answers

Related Manuals for MPL PIP8

Summary of Contents for MPL PIP8

  • Page 1 35mm DIN rail. The PIP8 housing offers space for a 2.5 inch hard disk and a slim-line floppy disk drive. With the integrated PC/104 interface flexible expansion possibilities are available. Fully bootable FLASH disks are supported for projects where hard disks or floppy disks cannot be used.

  • Page 2: Table Of Contents

    REMOTE MMI MODULE CONNECTOR ................31 3.5.4. ZOOMED VIDEO PORT CONNECTOR (OPTIONAL) ............32 3.5.5. INTERNAL POWER CONNECTOR..................33 3.5.6. SPEAKER CONNECTOR ..................... 33 3.5.7. LED CONNECTOR ....................... 33 3.5.8. PC/104 INTERFACE PIN NUMBERS..................34 © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 3 UART3 RESOURCE REGISTER ..................51 4.7.2. UART3 CONTROL REGISTER ..................... 52 4.7.3. UART4 RESOURCE REGISTER ..................53 4.7.4. UART4 CONTROL REGISTER ..................... 54 4.7.5. CAN RESOURCE REGISTER....................55 4.7.6. CAN CONTROL REGISTER ....................56 © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 4 LINKS TO THE LATEST DRIVERS ..................63 5.2.2. OTHER LINKS ........................63 SUPPORT INFORMATION......................... 64 6.1. MPL AG............................64 6.2. PRODUCTION SERIAL AND REVISION NUMBER ............... 64 6.3. RELATED DOCUMENTS ......................64 6.4. DOCUMENT REVISION HISTORY....................65 © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 5 Table 46 PIP ID Register..........................61 Table 47 PLD Part ID Register ........................61 Table 48 PLD Code Revision Register ....................... 61 Table 49 ESD Protection..........................62 Table 50 Document Revision History......................65 © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 6 Figure 16 Mounting 32 Pin and 28 Pin devices ................... 39 Figure 17 FLASH Type Pinout........................40 Figure 18 EPROM Type Pinout ........................40 Figure 19 SRAM Type Pinout ........................40 Figure 20 Block Diagram ..........................43 Figure 21 Label ............................64 © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 7: Introduction

    1.2. SAFETY PRECAUTIONS AND HANDLING For personal safety and safe operation of the PIP8, follow all safety procedures described here and in other sections of the manual. • Remove power from the system before installing (or removing) the PIP8 to prevent the possibility of personal injury (electrical shock) and/or damage to the product.

  • Page 8: General Information And Specifications

    PIP8 USER MANUAL 2. GENERAL INFORMATION AND SPECIFICATIONS This chapter provides an overview of the PIP8 and its features. It outlines the electrical and physical specifications of the product, its power requirements, and a list of related publications. 2.1. SPECIFICATIONS...
  • Page 9 Refresh-rates up to 85 Hz • DPMS and DDC support • Standard D-sub 15HD VGA connector • MPL REMMI (remote MMI) module port, following interface modules are available: • 18 Bit parallel data • PanelLink • FPD-Link (Flat Panel Link) •...
  • Page 10 Device drivers for all major operating systems available • ESD protected Keyboard / mouse • Available on 6 pin mini DIN connectors (PS/2) • ESD protected Speaker • Available on an internal 10 pin header © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 11 Connection for an external remote power button switch (ATX functionality) Hardware watchdog timer • Programmable timeout of 1 to 255 seconds or 1 to 255 minutes Temperature sensor • Monitors the CPU temperature © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 12 +8 V to +28 VDC Power consumption typical 17W ENVIRONMENT Temperature range 0°C to +60°C (+32°F to +140°F) without internal HDD or FDD. Extended temperature range available Relative humidity 10% to 90% noncondensing © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 13: Revision Changes

    2.2. REVISION CHANGES For the PIP8 revision C or above, some additional features has been implemented. Therefor it is recommended to use this manual for the PIP8 revision C or later revisions. This section shows the differences between this and earlier revisions.

  • Page 14: Dimensions

    PIP8 USER MANUAL 2.3. DIMENSIONS 2.3.1. TOP VIEW Figure 1 Top view © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 15: Bottom View

    PIP8 USER MANUAL 2.3.2. BOTTOM VIEW Figure 2 Bottom view Note: All dimensions are subject to change. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 16: Side View 1

    (49,4) SIDE VIEW 3 (56,9) 40,9 (64,4) 48.4 Figure 3 Side view 1 Note: Use numbers in parentheses for the high version (82.5 mm) [120 mm]. All dimensions are subject to change. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 17: Side View 2

    22,1 24,5 23,4 24,5 21,0 SIDE VIEW 4 Figure 4 Side view 2 Note: Use numbers in parentheses for the high version (82.5 mm) [120 mm]. All dimensions are subject to change. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 18: Side View 3

    TOP VIEW 17,2 52.5 67,7 BOTTOM VIEW 102.5 107,5 162,1 Figure 6 Side view 4 Note: Use numbers in parentheses for the high version (82.5mm) [120 mm]. All dimensions are subject to change. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 19: Preparation For Use

    OPENING THE CASE Remove the screws from the case top. Figure 7 Removing the case screws Lift up the cover slowly. Please be careful with the cables. Figure 8 Lifting up the cover © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 20: Parts Location

    PIP8 USER MANUAL 3.2. PARTS LOCATION Figure 9 Parts location © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 21: Switch Settings

    Type 8, Reserved Type 9, Reserved Type 10, Reserved Type 11, Reserved Type 12, Reserved Type 13, Reserved Type 14, Reserved Type 15, Reserved Table 1 DIP Switch 1 - Display settings © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 22: Dip Switch 2 - Miscellaneous Settings

    SW3-5 Reserved Function (OFF) Reserved Reserved SW3-6 Reserved Function (OFF) Reserved Reserved SW3-7 Reserved Function (OFF) Reserved Reserved SW3-8 Reserved Function (OFF) Reserved Reserved Table 3 DIP Switch 3 - peripheral settings © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 23: Termination Switch Rs485 Port 3 And Port 4

    MMI module connector. USB port 1 signals are switched to USB port 1 connector USB port 1 signals are switched to remote MMI module connector Figure 11 UBS port 1 Switch © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 24: External Connectors

    Write Data WGATE Write Gate DRVDEN0 Drive Density 0 HDSEL Head Select Direction STEP Step Ground Ground Ground Ground Ground Ground Ground 5V power, enable in BIOS Table 5 Parallel port connector © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 25: Serial Port 1 And Serial Port 2 Connector

    RS485 isolated shield (SERIAL 4) 485A4 RS485 balanced RTX+ line (SERIAL 4) 485A3 RS485 balanced RTX+ line (SERIAL 3) D-SUB 25 pin male Table 7 Serial Port 3 and Serial Port 4 Connector © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 26: Can Connector

    Figure 12 External Reset and Power Button Switch WARNING Be aware of the input voltage polarization! Wrong polarization of the input voltage can cause serious damage to your PIP8 despite the extensive protection built in! © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 27: Scsi Connector

    Standard RJ45 connector for a 100 ohm cable Pin Number Signal Description Pinout Transmit data + Transmit data - Receive data + Not connected Not connected Receive data - Not connected RJ45 Not connected Table 11 10/100BaseTX connector © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 28: Keyboard And Ps/2 Mouse Connector

    Green Blue Not connected Ground Analog Ground Analog Ground Analog Ground +5 V Ground Not connected HD-SUB 15 pin female DDC data Horizontal synchronization Vertical synchronization DDC clock Table 14 VGA Connector © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 29: Internal Connectors

    E-IDE CONNECTORS There are two E-IDE connectors in the PIP8, a standard connector (40 pin header / 2.54 mm pitch) and a connector for an internal 2.5 inch notebook HDD (44 pin header / 2 mm pitch). Physically each connector works as an independent IDE channel.

  • Page 30: Fdd Connector For Internal Fdd

    Ground WDATA Write data Internal FDD Ground WGATE Write gate Ground TR00 Track 0 Ground WPROT Write protected Ground RDATA Read data Ground HDSEL Head select Table 17 Connector for Internal FDD © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 31: Remote Mmi Module Connector

    REMOTE MMI MODULE CONNECTOR This connector is intended to be used for an MPL remote MMI or panel interface module. The following table shows the pinning for the four standard TFT panel types 0 to 3 (refer to 3.3.1). The meaning of the LCD signals can change if other panel types (STN or DSTN) are used.

  • Page 32: Zoomed Video Port Connector (Optional)

    +5 V system voltage VREF Vertical reference HREF Horizontal reference Ground VCLK Video Clock Ground PCLK PClock SMB_D System management bus data SMB_CLK System management bus clock Table 19 Zoomed Video Port Connector © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 33: Internal Power Connector

    /USER 1 User 1 LED (cathode) /USER 2 User 2 LED (cathode) Internal LED Connector RSTBTN Reset button, connect to pin 10 for reset +3.3V +3.3 system voltage Table 22 LED Connector © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 34: Pc/104 Interface Pin Numbers

    Signals are only available if generated seperately and connected to the internal power connector 3.5.5. Notes: For more detailed information refer to the PC/104 Specification, Version 2.3 and to the IEEE P996 draft standard (D2.02). © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 35: Pc/104+ Interface

    The exception is the power supply cable, which does not have to be shielded. Maximum Cable Length: VGA, keyboard and mouse cable: < 3 meters SCSI cable (maximum cumulative cable length): 6 meters © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 36: Module Sockets

    SO-DIMM MEMORY MODULE SOCKET A 144 pin SO-DIMM socket with JEDEC standard layout is available for system memory. SO-DIMM memory modules are available in sizes up to 256 Mbytes. The PIP8 supports only SDRAM modules with the following specification: 3.7.1.1.

  • Page 37: Rs485 / Rs422 Interface Module Sockets

    3.7.2. RS485 / RS422 INTERFACE MODULE SOCKETS There are two RS485 interface module sockets on the PIP8. Each of them can be populated with a MAX1480A device from Maxim Integrated Products. The MAX1480A is a complete, electrically isolated, half- duplex RS485 / RS422 data interface. The ports SERIAL3 and SERIAL4 can be switched from the integrated RS232 drivers to the RS485 module.

  • Page 38: Multipurpose Socket

    PIP8 USER MANUAL 3.7.3. MULTIPURPOSE SOCKET The multipurpose socket (MPS) is a feature unique by MPL. The following modules or components can be populated • ® M-Systems DiskOnChip 2000 • Different SRAM / FLASH / EPROM / EEPROM memory components in 28 / 32 pin 600mil DIL cases •...

  • Page 39: Memory Modules

    SST, Atmel, etc. FLASH AMD, Atmel, SST, SGS, etc. (29F256 / 512 / 010 / 020 / 040 style) EPROM AMD,SGS, etc. (27C256 / 512 / 010 / 020 / 040 style) © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 40: Module Setup

    (A16) SW2-5 SW2-6 Make sure the MPS SWITCH 1 setting is correct! 28-pin SRAM mode can also be used for 32-pin devices with CE on pin 30 Figure 19 SRAM Type Pinout © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 41: Remote Mmi (Remmi) Module Socket

    MMI interface (display as well as input / output devices) based on the PanelLink standard, the DLS that provides a FPD based LVDS display interface and the DLP with a parallel digital LCD interface. More information to those modules you will find in the product specific manuals or on the MPL homepage.. MODULE INSTALLATION: Before you begin the module installation, make sure that no power is applied to the system.

  • Page 42: Zv-Port Module

    USER MANUAL 3.9. ZV-PORT MODULE The zoomed video port (ZV-Port) gives the opportunity to sample analog data from an external source into the VGA controller. For more information please visit the MPL homepage or contact MPL. Supported protocols: • NTSC •...

  • Page 43: Operation

    Power /Reset 9-pin 25-pin 9-pin 9-pin 25-pin 6-pin 6-pin Connector DSUB DSUB DSUB DSUB DSUB Mini-DIN Mini-DIN PCI Bus 15-pin HDSUB 50-pin SCSI2 RJ45 Connector Connector Connector Connector Connector Figure 20 Block Diagram © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 44: Pc/At Functionality

    • FDD controller • VGA controller 4.3. STATUS INDICATORS The PIP8 provides eight status indicator LEDs, giving you visual information about the actual operating status. 4.3.1. POWER INDICATOR LED The yellow power LED indicator is lit when the system is powered.

  • Page 45: Hardware Watchdog

    WDT interrupt is mapped to an interrupt channel through the WDT_CFG configuration register. When mapped to an interrupt the interrupt signal follows the value of the time-out status bit (TOS). The PIP8 has a special system logic that can generate a system reset when the WDT asserts IRQ15 ( this does not affect the systems IRQ15 ).

  • Page 46: Wdt Registers

    This bit determines whether the timeout is reloaded upon read / write of 201h (joystick port). Function Reload time-out upon I/O read / write of 201h disabled Reload time-out upon I/O read / write of 201h enabled © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 47 0010 Unused 0011 IRQ3 0100 IRQ4 0101 IRQ5 0110 IRQ6 0111 IRQ7 1000 Unused 1001 Unused 1010 Unused 1011 Unused 1100 IRQ12 1101 Unused 1110 Unused 1111 IRQ15 (mapped to system reset) © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 48: Watchdog Control Register

    P20 activity does not generate the WD timeout event. Allows rising edge of P20, from the keyboard controller, to force the WD time-out event. You can still force a WD timeout event by setting the FOT bit © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 49: Rs-485 / Rs422 Interfaces

    (refer to 4.7.4) register. For further information refer to the BIOS section within this manual 5.1. NOTE: You can not select high-speed mode if the serial channel is routed to a RS232 port. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 50: Can Interface

    With its high noise immunity and fail-safe operation it is ideal as a control network for industrial applications. On the PIP8, the CAN interface is based upon the CAN controller AN82527 from Intel. The controller is a highly integrated stand-alone device, containing all necessary modules to perform the functions of the CAN data link layer.

  • Page 51: Extension Registers

    1 1 0 0 Disabled 1 1 0 1 Disabled 1 1 1 0 Disabled 1 1 1 1 Disabled The default is supported by the BIOS. It’s the standard setting for serial COM3. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 52: Uart3 Control Register

    High-speed mode is only possible for ‘RS485 half-duplex’ and ‘RS485 full-duplex’ modes. UT3SPD Function Standard clock 1.8432 MHz (maximum 115.2 kbaud) High-speed clock 14.7456 MHz (maximum 9216 kbaud) If ‘RS232’ mode is selected, this bit is automatically cleared. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 53: Uart4 Resource Register

    1 1 0 0 Disabled 1 1 0 1 Disabled 1 1 1 0 Disabled 1 1 1 1 Disabled The default is supported by the BIOS. It’s the standard setting for serial COM4. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 54: Uart4 Control Register

    High-speed mode is only possible for ‘RS485 half-duplex’ and ‘RS485 full-duplex’ modes. UT4SPD Function Standard clock 1.8432 MHz (maximum 115.2 kbaud) High-speed clock 14.7456 MHz (maximum 921.6 kbaud) If ‘RS232’ mode is selected, this bit is automatically cleared. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 55: Can Resource Register

    1 1 1 1 Disabled Be aware, that you use a free interrupt, otherwise the CAN interface might not work properly. These are the tested settings during the production test; use those whenever possible. © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 56: Can Control Register

    0 1 0 D8000h – D9FFFh (8 k) 0 1 1 DC000h – DDFFFh (8 k) 1 0 0 Disabled 1 0 1 Disabled 1 1 0 Disabled 1 1 1 Disabled © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 57: Multipurpose Socket Page Address Register

    This lets you use the integrated watchdog of the FDC37C672 Super I/O as a reset watchdog. The SIO IRQ15 is reserved for this purpose and is not routed to the systems interrupt controller. WDOG Function Generate reset on SIO IRQ15 disabled Generate reset on SIO IRQ15 enabled © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 58: 4.7.10. User Led Control Register

    5 V (not supported) MPM1 to 0 (Read-Only) These bits show the setting of switches SW2-5 and SW2-6, which selects the MPS device type SW2-6 SW2-5 MPM0 MPM1 Function DOC2000 FLASH EPROM SRAM © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 59 PIP8 USER MANUAL BOOTSEL (Read-Only) This bit reflects the position of DIP switch SW2-8, which selects the boot mode. SW2-8 BOOTSEL Function Boot from multipurpose socket Boot from onboard FLASH © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 60: Status Register 2

    This bit reflects the position of DIP switch SW3-7. The functionality is reserved. SW3-7 RSSW3 Function Reserved Reserved RSSW4 (Read-Only) This bit reflects the position of DIP switch SW3-8. The functionality is reserved. SW3-8 RSSW4 Function Reserved Reserved © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 61: 4.7.13. Floppy Disk Power Register

    This register is used to identify the current code revision of the programmable onboard logic PIPCR[7 to 0]: 0 to FFh PIPID[7 to 0] Function PIP8 - PCB Rev. A Code Rev. 1.1 PIP8 - PCB Rev. B Code Rev. 1.2 © 2005 by MPL AG MEH-10089-001 Rev. D...

  • Page 62: Emc Features

    In a system design, two aspects regarding EMI must be observed. These aspects are immunity to (external) disturbances and prevention of Radio Frequency emissions (RF). On the PIP8, both aspects are taken into account. Some immunity is given for free since many components do already contain internal circuits providing at least minor protection to ESD.

  • Page 63: Software

    5.1. BIOS The PIP8 BIOS standard configuration settings are not explained within this manual. You can find additional information in the “Embedded BIOS User's Guide” on the MPL homepage (refer to 5.2.2). The PIP8 specific BIOS information explained in the...

  • Page 64: Support Information

    In case of questions contact your local distributor or MPL AG. MPL AG homepage: www.mpl.ch Email address: support@mpl.ch 6.2. PRODUCTION SERIAL AND REVISION NUMBER To get the actual production revision number of your device, please see the label on the bottom of the PIP8 housing. 50.00mm. PIP8-1 10121 MEV-10073-201 BIOS: 8-28VDC, 3.15A...

  • Page 65: Document Revision History

    Temperature sensor description removed: Rev. D 28.07.2005 • CPU clock throttling incase of over temperature (thermal throttling) possible • Programmable temperature threshold New PIP8-1 label image New case hight 120mm Table 50 Document Revision History © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 66 PIP8 USER MANUAL This page is left blank intentionally © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 67 PIP8 USER MANUAL This page is left blank intentionally © 2005 by MPL AG MEH-10089-001 Rev. D...
  • Page 68 This manual reflects revision D of the PIP8-1. DISCLAIMER The information contained herein is believed to be accurate as of the date of this publication, however, MPL AG will not be liable for any damages, including indirect or consequential, arising out of the application or use of any product, circuit or software described herein.
