Nokia 930C User Manual

Color monitor with plug & play 19" (18" viewable diagonal).
Hide thumbs

Advertisement

User Guide
Guide de l'utilisateur
Bedienungsanleitung
(International Spanish)
(Italian)
(Brazilian Portuguese)
(Swedish)
(Russian)
(Polish)
(Arabic)
With Plug & Play ✘
19" (18" Viewable Diagonal)

Advertisement

   Related Manuals for Nokia 930C

   Summary of Contents for Nokia 930C

  • Page 1: Color Monitor

    Color Monitor User Guide Guide de l’utilisateur Bedienungsanleitung (International Spanish) (Italian) (Brazilian Portuguese) (Swedish) (Russian) (Polish) (Arabic) With Plug & Play ✘ 19" (18" Viewable Diagonal)

  • Page 2: Table Of Contents

    Quick Installation ...4 Using the Monitor Setting the Timing Mode ...5 Adjusting the Screen Image ...6 Other Information Specifications ...11 Troubleshooting...12 Customer Support ...13 Cleaning the Monitor ...14 Appendix Safety Guidelines ...15 Compliance Information ...16 CE Conformity ...16 Nokia 930C...

  • Page 3

    Macintosh and Power Macintosh are registered trademarks of Apple Computer, Inc. Nokia is a registered trademark of Nokia Corporation. Microsoft, Windows, Windows NT, and the Windows logo are registered trademarks of Microsoft Corporation in the United States and other countries.

  • Page 4: Getting Started, Package Contents

    Getting Started Congratulations on your purchase of a Nokia 930C color monitor. Important! Save the original box and all packing material for future shipping needs. NOTE: The word “Windows” in this user guide refers to the following Microsoft operating systems: Windows ‘95, Windows ‘98, Windows 2000, Windows NT.

  • Page 5: Quick Installation

    Power-ON the monitor, then power-ON the computer. This sequence (monitor before computer) is very important. NOTE: At this point Windows 98 users may receive a message asking them to install the 930C INF file. Video cable to computer Power cords Nokia 930C...

  • Page 6: Setting The Timing Mode

    Macintosh 1024 x 768 @ 75 Hz Macintosh 1152 x 870 @ 75 Hz 1152 x 864 NI @ 125 Hz 1024 x 768 NI @ 140 Hz 800 x 600 NI @ 175 Hz 640 x 480 NI @ 180 Hz Nokia 930C...

  • Page 7: Adjusting The Screen Image

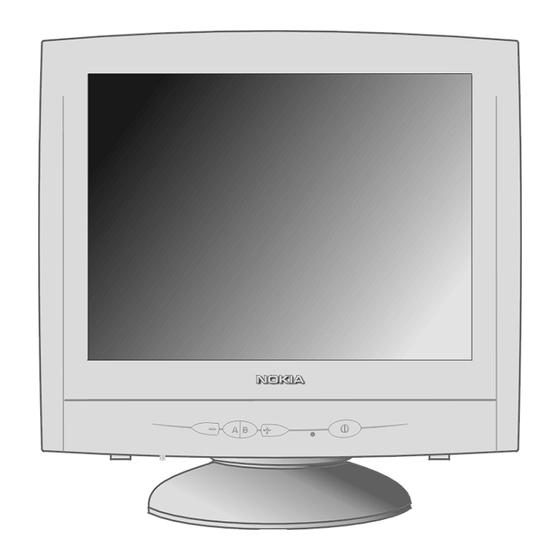

    “A” Display Main Menu; also saves changes and exits the menu. “B” Displays control screens after a selection is made. Also, toggles between controls displayed in pairs. Nokia 930C Front Control Panel Scroll through menu options; also increases or decreases the value of a control.

  • Page 8

    To save the control setting and Exit the menu, press button A twice. With Main Menu [1] displayed press button B to display Main Menu [2]. With Main Menu [2] displayed press button B to display Main Menu [3]. Nokia 930C...

  • Page 9

    Main Menu Controls The menu items shown below can be adjusted by using the buttons (+ or –) on the front of your monitor. Control Nokia 930C Explanation adjusts the difference between the image Contrast background (black level) and the foreground (white level).

  • Page 10

    — Adds blue and green to the screen image. 5000K — Individual adjustments for red, green, and User Color blue. (Vertical Linearity Symmetry) minimizes the straightens the top corners of the screen straightens the bottom corners of the provides several color options: three Color Nokia 930C...

  • Page 11

    Control 10 Nokia 930C Explanation (Continued) adjusts the uneven color of the overall image. For Purity example, if one area of a color appears darker than another area, first use the degauss feature. If color is still uneven, use the purity control.

  • Page 12: Specifications

    VESA 1280 x 1024 @ 85 Hz VESA 1600 x 1200 @ 75 Hz VESA 1600 x 1200 @ 85 Hz VESA 1920 x 1440 @ 75 Hz Macintosh 1024 x 768 @ 75 Hz Macintosh 1152 x 870 @ 75 Hz Nokia 930C 11...

  • Page 13: Troubleshooting

    • Try the monitor with another power source, graphics card, or computer system. • Connect the video cable securely. Control buttons do not work • Press only one button at a time. 12 Nokia 930C ® from the main menu to verify the refresh rate (vertical...

  • Page 14: Customer Support

    F: (909) 468-1202 T: 0800 833 648 F: 0044 (0)1293 643910 T: 0044 (0)1293 643900 F: 0044 (0)1293 643910 (contact reseller) T: 64-3-366-1135 F: 64-3-366-7006 T: 65-273-4018 F: 65-273-1566 T: 886-2-2248-4072 F: 886-2-2240-8238 T: 27-11-314-0002 F: 27-11-314-0002 Nokia 930C 13...

  • Page 15: Cleaning The Monitor

    Do not use ammonia or alcohol-based cleaners on the monitor screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. Your warranty does not cover damage resulting from use of any ammonia or alcohol-based cleaners. 14 Nokia 930C...

  • Page 16: Safety Guidelines

    If you have any questions concerning which proper power cord to use, please consult with the dealer from whom you have purchased the product. Switzerland ... SEV Britain ... BASE/BS Japan ... Electric Appliance Control Act Figure A1 Figure A2 Maximum Current Rating of Unit 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps Nokia 930C 15...

  • Page 17: Compliance Information, Ce Conformity

    CE Conformity The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility," and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety." 16 Nokia 930C...
