REFRIGERATOR
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
TM
MODELS:
795.75002.402
795.75004.402
795.75009.402
795.75012.402
795.75014.402
795.75019.402
795.75202.402
795.75204.402
795.75209.402
795.75212.402
795.75214.402
795.75219.402

Advertisement

loading
Need help?

Need help?

Do you have a question about the 795.75002.402 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kenmore 795.75002.402

Summary of Contents for Kenmore 795.75002.402

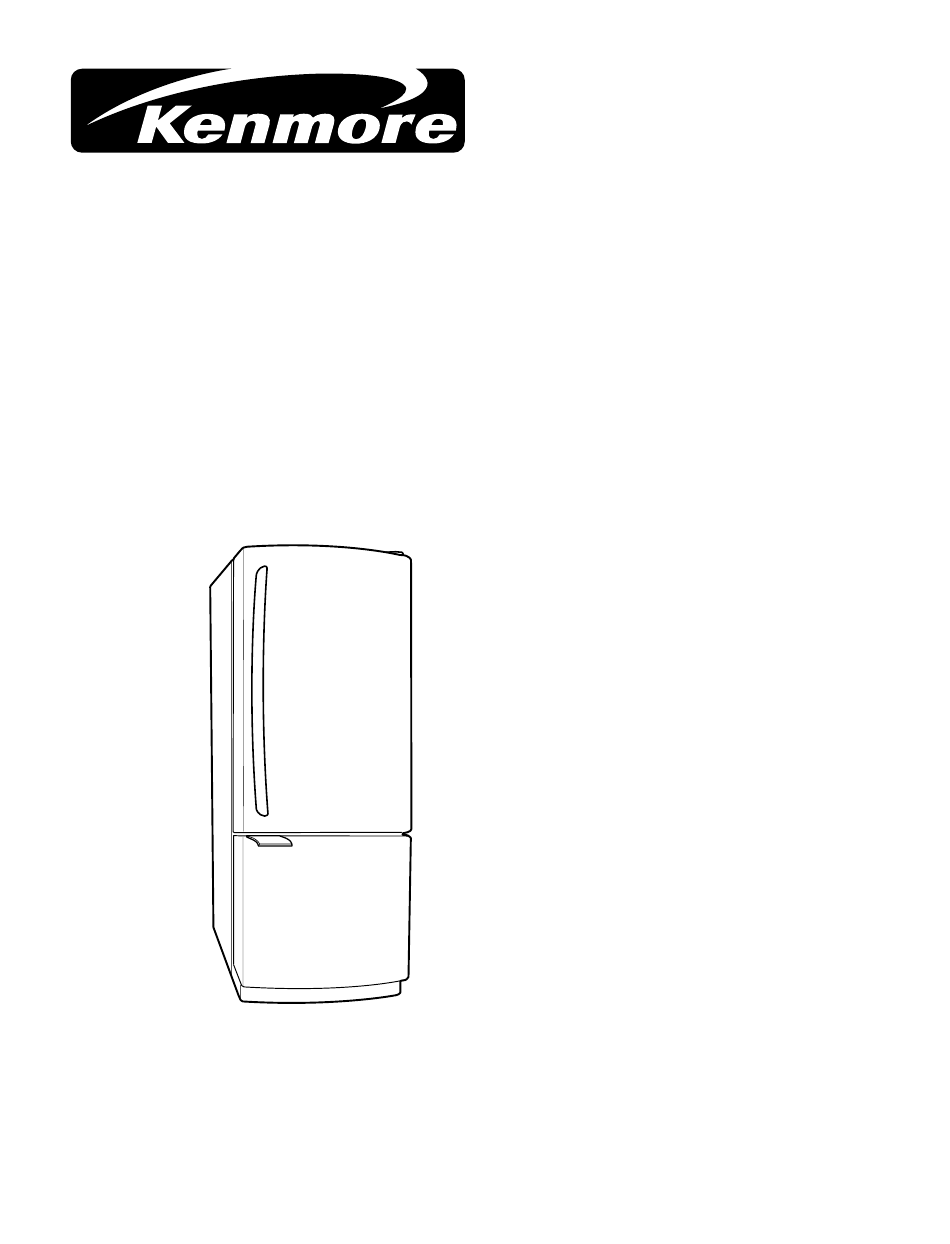

  • Page 1 REFRIGERATOR SERVICE MANUAL CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. MODELS: 795.75002.402 795.75004.402 795.75009.402 795.75012.402 795.75014.402 795.75019.402 795.75202.402 795.75204.402 795.75209.402 795.75212.402 795.75214.402 795.75219.402...
