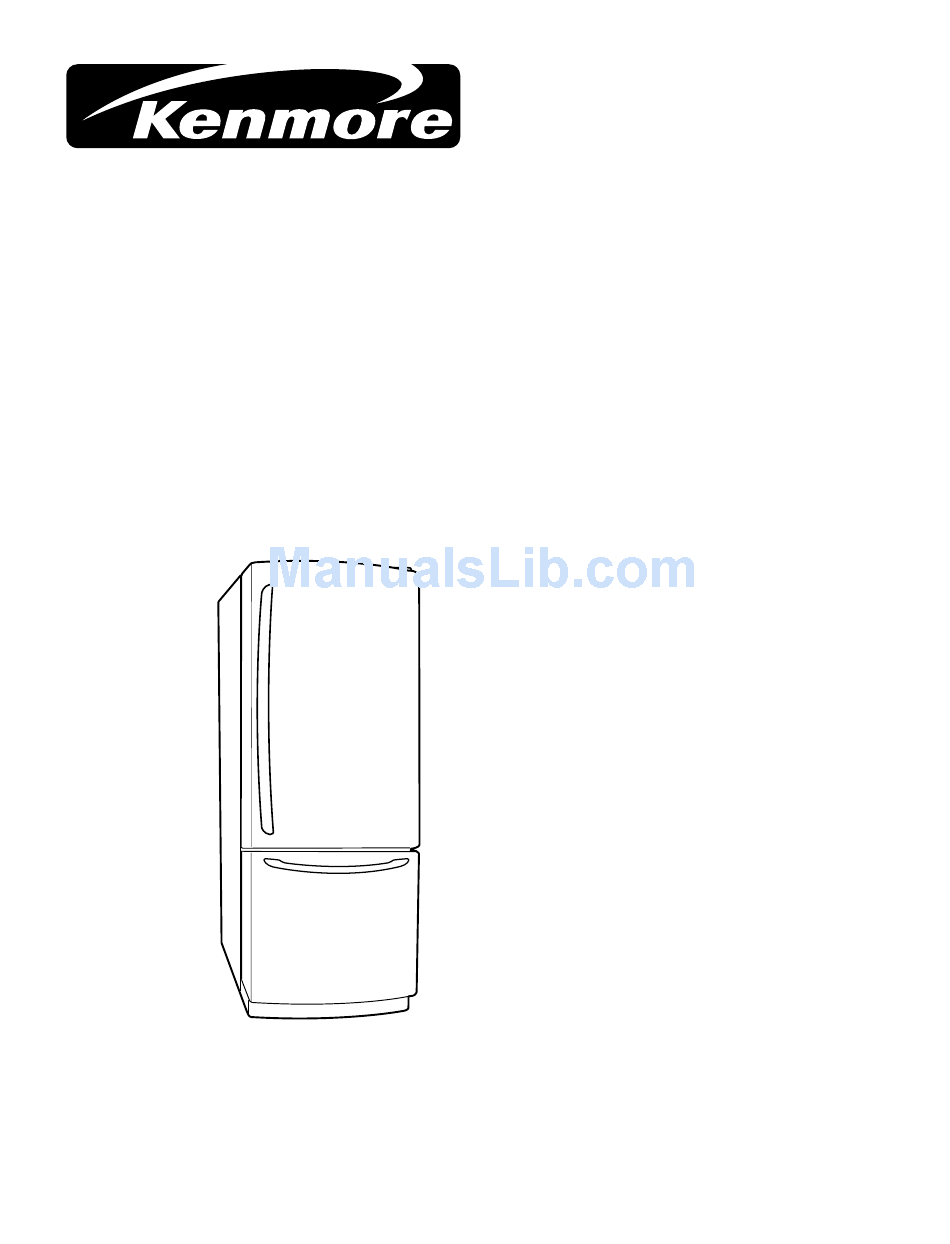

REFRIGERATOR
SERVICE MANUAL
CAUTION
BEFORE SERVICING THE UNIT,
READ THE SAFETY PRECAUTIONS IN THIS MANUAL.
Part No.: 3828JL8035A
TM
MODELS:
795.75082.401/402
795.75083.401/402
795.75084.401/402
795.75086.401/402
795.75089.401/402
795.75092.401/402
795.75093.401/402
795.75094.401/402
795.75096.401/402
795.75099.401/402
795.75282.401/402
795.75283.401/402
795.75284.401/402
795.75286.401/402
795.75289.401/402
795.75292.401/402
795.75293.401/402
795.75294.401/402
795.75296.401/402
795.75299.401/402

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 795.75082.401 and is the answer not in the manual?

Questions and answers

Related Manuals for Kenmore 795.75082.401

Summary of Contents for Kenmore 795.75082.401

  • Page 1 REFRIGERATOR SERVICE MANUAL CAUTION BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL. MODELS: 795.75082.401/402 795.75083.401/402 795.75084.401/402 795.75086.401/402 795.75089.401/402 795.75092.401/402 795.75093.401/402 795.75094.401/402 795.75096.401/402 795.75099.401/402 795.75282.401/402 795.75283.401/402 795.75284.401/402 795.75286.401/402 795.75289.401/402 795.75292.401/402 795.75293.401/402 795.75294.401/402 795.75296.401/402 795.75299.401/402 Part No.: 3828JL8035A...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS…………………………………………………........…………………. SPECIFICATIONS……………………………………………………….........……………. PARTS IDENTIFICATION…………………………………………………………………......…. DISASSEMBLY…………………………………………………………………….……………………..…………. DOOR…………………………………………………………………….………………………………………………………..……..……. DOOR SWITCH…………………………………………………………………….…………………………………………………….………. FAN AND FAN MOTOR…………………………………………………………………….…………………………..………………………. DEFROST CONTROL ASSEMBLY……………………………………………………………….........……. LAMP…………………………………………………………………….……………………………………………..………………………. CONTROL BOX-REFRIGERATOR………………………………………………………….........…………. MULTI DUCT…………………………………………………………………….…………………………...……………………………………. ADJUSTMENT…………………………………………………………………….…………………….………………. COMPRESSOR…………………………………………………………………….………………………………………………………………. PTC-STARTER…………………………………………………………………….…………………………………………………………….…. OLP (OVERLOAD PROTECTOR)…………………………………………………………………..........…. TO REMOVE THE COVER PTC……………………………………………………………..........………. CIRCUIT DIAGRAM…………………………………………………………………........…. TROBLESHOOTING……………………………………………………………........………. COMPRESSOR AND ELECTRIC COMPONENTS…………………………………………….....………………………. PTC AND OLP…………………………………………………………………….………………………………………..…………………….

  • Page 3: Specifications

    1. SPECIFICATIONS 1-1 DISCONNECT POWER CORD BEFORE SERVICING IMPORTANT RECONNECT ALL GROUNDING DEVICES. All parts of this appliance capable of conducting electrical current are grounded. If grounding wires, screws, straps, clips, nuts or washers used to complete a path to ground are removed for service, they must be returned to their original position and properly fastened.

  • Page 4: Performance Data

    1. SPECIFICATIONS 1-7 REPLACEMENT PARTS PERFORMANCE DATA (NORMAL OPERATING CONDITIONS) Relay (PTC) ........EBG32606502 SYSTEM PRESSURE (PSIG) WATTS Overload Protector (OLP) ..... 6750C-0004S HIGH SIDE LOW SIDE Defrost Thermostat ....... 6615JB2005C 70°F 98 (+10 / -10) 98 (+5 / -3) (-5) to (-2) Defrost Heater ....

  • Page 5: Parts Identification

    2. PARTS IDENTIFICATION FREEZER DRAWER MODEL Cool sense Electronic Temperature Control system Dairy Corner Refrigerator Light Refrigerator Shelves Egg Box Modular Snack Pan Door Bin Super Fresh Crisper with Tilt-out Compartment Keeps fruits and vegetable fresh Refrigerator and crisp Door Rack Adjust cube Icemaker Freezer Light...

  • Page 6: Disassembly

    3. DISASSEMBLY 3-1 DOOR Freezer Door 1. Loosen the hexagonal bolts attaching the lower hinge to Refrigerator Door the body to remove the refrigerator door only. 1. Remove the hinge cover by pulling it upwards. 2. Loosen the hexagonal bolts attaching the upper hinge to the body and lift the freezer door.

  • Page 7: Fan And Fan Motor

    3-3 FAN AND FAN MOTOR 3-5-1 Refrigerator Compartment Lamp 1. Unplug the power cord from the outlet. 1. Remove the freezer shelf. (If your refrigerator has an icemaker, remove the icemaker first) 2. Remove refrigerator shelves. 2. Remove the grille by pulling it out and by loosening a 3.

  • Page 8: Adjustment

    4. ADJUSTMENT 4-1 COMPRESSOR 4-2-3 PTC-Applied Circuit Diagram Starting Method for the Motor 4-1-1 Role The compressor intakes low temperature and low pressure gas from the evaporator of the refrigerator and compresses OVERLOAD PROTECTOR this gas to high-temperature and high-pressure gas. It then delivers the gas to the condenser.

  • Page 9: Olp (Overload Protector)

    4-3 OLP (OVERLOAD PROTECTOR) 4-4 TO REMOVE THE COVER PTC 4-3-1 Definition of OLP (1) OLP (OVERLOAD PROTECTOR) is attached to the Compressor and protects the Motor by opening the circuit to the Motor if the temperature rises and activating the bimetal spring in the OLP. (2) When high current flows to the Compressor motor, the Bimetal works by heating the heater inside the OLP, and the OLP protects the Motor by cutting off the...

  • Page 10: Circuit Diagram

    5. CIRCUIT DIAGRAM Best / Best dispenser GY: GRIS/GRAY - 10 -...
  • Page 11 Good / Better GY: GRIS/GRAY - 11 -...

  • Page 12: Trobleshooting

    6. TROUBLESHOOTING 6-1 COMPRESSOR AND ELECTRIC COMPONENTS (Reated Voltage Remove PTC-Starter Power Source. ±10%)? from Compressor and measure voltage between Terminal C of Compressor and Terminals 5 or 6 of PTC. OLP disconnected? No Voltage. Replace OLP. Check connection condition. Reconnect.

  • Page 13: Ptc And Olp

    6-2 PTC AND OLP Normal operation of Separate PTC-Starter Observation value is Compressor is from Compressor and 115V/60Hz : 6.8Ω±30% impossible or poor. measure resistance between No. 5 and 6 of PTC-Starter with a Tester. (Figure 14) Replace PTC- The resistance value Starter.

  • Page 14: Other Elctrical Components

    6-3 OTHER ELECTRICAL COMPONENTS M Not cooling at all Check for open short or Compressor Cause incorrect resistance readings doesn't run. in the following components a. Starting devices Short, open, or broken. Poor contact b. OLP or shorted. Coil open or shorted. c.

  • Page 15: Service Diagnosis Chart

    6-4 SERVICE DIAGNOSIS CHART COMPLAINT POINTS TO BE CHECKED REMEDY No Cooling. • Is the power cord unplugged from the outlet? • Plug into the outlet. • Check if the power switch is set to OFF. • Set the switch to ON. •...

  • Page 16: Refrigeration Cycle

    6-5 REFRIGERATION CYCLE M Troubleshooting Chart TEMPERATURE STATE OF STATE OF THE CAUSE REMARKS OF THE THE UNIT EVAPORATOR COMPRESSOR PARTIAL Freezer Low flowing sound of A little higher • Refrigerant level is low due LEAKAGE compartment and Refrigerant is heard and than ambient •...
  • Page 17 M General Control of Refrigerating Cycle ITEMS UNIT STANDARDS PURPOSES REMARKS Pipe and Min. Pipe: within 1 hour. To protect The opening time should be reduced piping system Comp: within 10 minutes. moisture to a half of the standards during rain opening time Drier: within 20 minutes.

  • Page 18: Operation Principle & Repair Method Of Ice Maker

    7. OPERATION PRINCIPLE AND REPAIR METHOD OF ICEMAKER Ice Maker 5 Steps 7-1 OPERATION PRINCIPLE 7-1-1 Operation Principle of IceMaker Power On Start Position • Adjusts EJECTOR to Start Position with power on. Ice Making • Waits until water becomes cold after starting the Mode ice making operation.
  • Page 19 7-2 CONTROL METHOD ACCORDING TO FUNCTIONS 7-2-1 Start Position 1. After POWER OFF or Power Outage, check the EJECTOR's position with MICOM initialization to restart. 2. How to check if it is in place: - Check HIGH/LOW signals from HALL SENSOR in MICOM PIN. 3.
  • Page 20 7-2-4 Fill / Park Position 1. When Ice-Removing control (Normal Ice-Removing control, Ice-Removing control for test) has completed, and the EJECTOR is in place, this control operates the ICE SOLENOID by time check in the compressor enclosure of the refrigerator. Then it supplies water to the ice making tray. 2.
  • Page 21 7-2-5 Function TEST 1. This is a compulsory operation for TEST , SVC, cleaning, etc. It is operated by pressing the water supply control KEY for 3 seco nds. 2. It operates in the Ice Making mode, but not in the Ice-Removing mode or water supply process. (If there is an ERROR, it can only be checked in the TEST mode.) 3.
  • Page 22 Ice Maker 3 Steps 7-4 OPERATION PRINCIPLE 7-4-1 Operation Principle of Icemaker Power On Start Position Adjusts Ejector to Start Position with power on. Icemaking Waits until water becomes cold after starting the • Mode Icemaking operation. Harvest • Runs MOTOR to drop ice from the tray into the ICE BIN. Mode •...
  • Page 23 7-5 ICE MAKER FUNCTIONS 7-5-1 Ice Making Mode 1. Icemaking refers to the freezing of supplied water in the ice trays. Complete freezing is assured by measuring the temperature of the Tray with icemaking SENSOR. 2. Icemaking starts after completion of the water fill operation. 3.

  • Page 24: Function Test

    7-5-5 Function TEST 1. This is a compulsory operation for test, service, cleaning, etc. It is operated by pressing and holding the Cube Size button for 3 seconds. 2. The test works only in the Icemaking Mode. It cannot be entered from the Harvest or Fill mode. (If there is an ERROR, it can only be checked in the TEST mode.) 3.

  • Page 25: Description Of Function & Circuit Of Micom

    8. DESCRIPTION OF FUNCTION & CIRCUIT OF MICOM 8-1 FUNCTION 8-1-1 Function 1. When the appliance is plugged in, it is set to "4" for Refrigerator and "4" for freezer. You can adjust the Refrigerator and the Freezer control temperature by pressing the ADJUST button. 2.
  • Page 26 8-1-5 Alarm for Open Door 1. This feature sounds a buzzer when the freezer or refrigerator door is not closed within 1 minute after it is opened. 2. One minute after the door is opened, the buzzer sounds three times each for 1/2 seconds. These tones repeat every 30 seconds.
  • Page 27 8-1-8 Defect Diagnosis Function 1. Automatic diagnosis makes servicing the refrigerator easy . 2. When a defect occurs, the buttons will not operate; but the tones. such as ding. will sound. 3. When the defect CODE removes the sign, it returns to normal operation (RESET). 4.
  • Page 28 8-1-10 TEST Mode 1. The Test mode allows checking the PCB and the function of the product as well as finding out the defective part in case of an error. 2. The test mode is operated by pressing two buttons at Display panel. 3.
  • Page 29 8-2 PCB FUNCTION 8-2-1 Power Circuit The secondary part of the TRANSFORMER is composed of the power supply for the display, the BLDC FAN Motor drive (15.5 V), the relay drive (12 Vdc) and the MICOM and IC (5 Vdc). The voltage for each part is as follows: CE 2 CE 1...
  • Page 30 8-2-2 Oscillation Circuit This circuit generates the base clock for calculating time and the synchro clock for transmitting data from and to the inside logic elements of the IC1 (MICOM). Be sure to use specific replacement parts, since calculating time by the IC1 may be changed.
  • Page 31 8-2-4 Load / Buzzer Drive & Open Door Detection Circuit 1. Load Drive Condition Check G5SB-14 FREEZER FREEZER DEFROSTING COMP LAMP LOAD TYPE FAN MOTOR FAN MOTOR HEATER (HIG RPM) (LOW RPM) Measurement Location (IC4) NO.11 NO.14 NO.15 NO.12 NO.13 1V or below Condition - 31 -...
  • Page 32 2. Buzzer Drive Condition Check Condition Tone (Ding~Dong~) when the button on Alarm for open door Measure- the display is pushed. (beep-beep-beep) ment Location 0.05 s 0.2 s 0.1 s 0.5 s 0.5 s IC1 ( 2.63 kz (Ding~) 2.21 kz (Dong~) IC1 ( 2.63 kz (Beep~) 3.
  • Page 33 8-2-5 Temperature Sensor Circuit The upper CIRCUIT reads REFRIGERATOR temperature, FREEZER Temperature, and DEFROST-SENSOR temperature for defrosting and the indoor temperature for compensating for the surrounding temperature into MICOM. OPENING or SHORT state of each TEMPERATURE SENSOR are as follows: SENSOR CHECK POINT NORMAL (-30°C ~ 50°C)
  • Page 34 8-2-6 Refrigeration Compartment Stepping Motor Damper Circuit * The circuit shown below is the damper circuit to regulate the refrigerator temperature. -34 -...
  • Page 35 8-2-7 Temperature Compensation & Overcooling/Undercooling Compensation Circuit 1. Refrigerator Temperature Compensation ➧ Table of Temperature Compensation by adjusting the Refrigerator resistance (difference from the current temperature) Resistance Temperature Remark e.g., If the refrigerator compensation resistance (RCR) is changed from 10K (the current resistance) (RCR) Compensation to 18K (the adjustment resistance), the temperature...
  • Page 36 8-2-8 Key Button Input & Display Light-On Circuit ➧ The circuit shown above determines whether a function control key on the operation display is pushed. It also turns on the corresponding function indication LED DISPLAY. The drive type is the scan type. 150J - 36 -...
  • Page 37 8-3 RESISTANCE SPECIFICATION OF SENSOR TEMPERATURE DETECTED RESISTANCE OF FREEZER RESISTANCE OF REFRIGERATOR & BY SENSOR SENSOR DEFROST SENSOR & ROOM SENSOR - 20 ˚C 22.3 KΩ 77 KΩ - 15 ˚C 16.9 KΩ 60 KΩ - 10 ˚C 13.0 KΩ 47.3 KΩ...
  • Page 38 - 38 -...
  • Page 39 - 39 -...
  • Page 40 8-5 MAIN PWB ASSEMBLY AND PARTS LIST 8-5-1 Main PWB Assembly - 40 -...
  • Page 41 8-5-2 Replacement Parts List -41 -...
  • Page 42 8-5-3 PWB Assembly, Display, And Parts List -42 -...
  • Page 43 8-6 PWB DIAGRAM 8-6-1 PWB Main Assembly G5S-1A - 43 -...
  • Page 44 - 44 -...

  • Page 45: Refrigerator Exploded View & Service Part List

    #EV# 11. EXPLODED VIEW & REPLACEMENT PARTS LIST CASE PARTS CAUTION: Use the part number to order part, not the position number. 103A 281A 410A 281B 409D 103B 406B 503F 501F 282E 282F 903D 410G 145A 610A 501A 409C 120B 125D 411A 304A...
  • Page 46 #EV# REFRIGERATOR DRAWER PARTS CAUTION: Use the part number to order part, not the position number. 146A 143E 140D 147A 140B 140E 143E 140D 143E 140D 140B 140E 140B 140E 143F 142D 140B 142E 103E 103E 128A 170A 167B 128B 154A 103E 168A...
  • Page 47 #EV# FREEZER DRAWER PARTS CAUTION: Use the part number to order part, not the position number. 285A 136B 136F 145G 248E 248F 131A 237C 145D 136A -47-...
  • Page 48 #EV# DOOR PARTS DRAWER PARTS CAUTION: Use the part number to order part, not the position number. 230A 241A 241F 233A 231A 241B 286A 212G 212F 241C 244E 241E 237A 212A 212J 700B 286A 241D 243A 212F 262E 248N 205C 200A 203A 621A...
  • Page 49 #EV# ICE MAKER PARTS CAUTION: Use the part number to order part, not the position number. 622B 622A 618A 623C 616E 627A 602A 600C 600A 619A 262D -49-...
  • Page 50 #EV# 795.75082.401 795.75083.401 795.75084.401 795.75086.401 795.75089.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015A 3551JJ1015E 3551JJ1015C 3551JJ1015E...
  • Page 51 #EV# 795.75082.401 795.75083.401 795.75084.401 795.75086.401 795.75089.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282F Decor,Duct 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 282H Cap,Hinge 5006JJ3004A 5006JJ3004E 5006JJ3004A 5006JJ3004E 5006JJ3004E 283B Hinge,Lower 4774JJ3001A 4774JJ3001A 4774JJ3001A 4774JJ3001A 4774JJ3001A...
  • Page 52 #EV# 795.75092.401 795.75093.401 795.75094.401 795.75096.401 795.75099.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015A 3551JJ1015E 3551JJ1015C 3551JJ1015E 3551JJ1015E 103E Rail,Slide...
  • Page 53 #EV# 795.75092.401 795.75093.401 795.75094.401 795.75096.401 795.75099.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282B Hinge Assembly,Center 4775JJ8002A 4775JJ8002C 4775JJ8002B 4775JJ8002C 4775JJ8002C 282E Cap,Hinge 5006JJ2001A 5006JJ2001F 5006JJ2001E 5006JJ2001F 5006JJ2001F 282F Decor,Duct 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 282H Cap,Hinge...
  • Page 54 #EV# 795.75282.401 795.75283.401 795.75284.401 795.75286.401 795.75289.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015B 3551JJ1015F 3551JJ1015D 3551JJ1015F 3551JJ1015F 103E Rail,Slide...
  • Page 55 #EV# 795.75282.401 795.75283.401 795.75284.401 795.75286.401 795.75289.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282F Decor,Duct 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 282H Cap,Hinge 5006JJ3004A 5006JJ3004E 5006JJ3004A 5006JJ3004E 5006JJ3004E 283B Hinge,Lower 4774JJ3001A 4774JJ3001A 4774JJ3001A 4774JJ3001A 4774JJ3001A 284D Screw,Customized 1STZJA3004K...
  • Page 56 #EV# 795.75292.401 795.75293.401 795.75294.401 795.75296.401 795.75299.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015B 3551JJ1015F 3551JJ1015D 3551JJ1015F 3551JJ1015F 103E Rail,Slide...
  • Page 57 #EV# 795.75292.401 795.75293.401 795.75294.401 795.75296.401 795.75299.401 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282B Hinge Assembly,Center 4775JJ8002A 4775JJ8002C 4775JJ8002B 4775JJ8002C 4775JJ8002C 282E Cap,Hinge 5006JJ2001A 5006JJ2001F 5006JJ2001E 5006JJ2001F 5006JJ2001F 282F Decor,Duct 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 282H Cap,Hinge...
  • Page 58 #EV# 795.75082.402 795.75083.402 795.75084.402 795.75086.402 795.75089.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015A 3551JJ1015E 3551JJ1015C 3551JJ1015E 3551JJ1015E 103E Rail,Slide...
  • Page 59 #EV# 795.75082.402 795.75083.402 795.75084.402 795.75086.402 795.75089.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282H Cap,Hinge 5006JJ3004A 5006JJ3004E 5006JJ3004D 5006JJ3004E 5006JJ3004E 285A Guide Assembly,Rail 4975JJ2007G 4975JJ2007G 4975JJ2007G 4975JJ2007G 4975JJ2007G 286A BUSH 4984JJ3003A 4984JJ3003A 4984JJ3003A 4984JJ3003A 4984JJ3003A 301A Evaporator Assembly...
  • Page 60 #EV# 795.75092.402 795.75093.402 795.75094.402 795.75096.402 795.75099.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015A 3551JJ1015E 3551JJ1015C 3551JJ1015E 3551JJ1015E 103E Rail,Slide...
  • Page 61 #EV# 795.75092.402 795.75093.402 795.75094.402 795.75096.402 795.75099.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 285A Guide Assembly,Rail 4975JJ2007G 4975JJ2007G 4975JJ2007G 4975JJ2007G 4975JJ2007G 286A BUSH 4984JJ3003A 4984JJ3003A 4984JJ3003A 4984JJ3003A 4984JJ3003A 301A Evaporator Assembly 5421JJ1001A 5421JJ1001A 5421JJ1001A 5421JJ1001A 5421JJ1001A 304A...
  • Page 62 #EV# 795.75282.402 795.75283.402 795.75284.402 795.75286.402 795.75289.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015B 3551JJ1015F 3551JJ1015D 3551JJ1015F 3551JJ1015F 103E Rail,Slide...
  • Page 63 #EV# 795.75282.402 795.75283.402 795.75284.402 795.75286.402 795.75289.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282F Decor,Duct 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 282H Cap,Hinge 5006JJ3004A 5006JJ3004E 5006JJ3004D 5006JJ3004E 5006JJ3004E 285A Guide Assembly,Rail 4975JJ2007G 4975JJ2007G 4975JJ2007G 4975JJ2007G 4975JJ2007G 286A BUSH...
  • Page 64 #EV# 795.75292.402 795.75293.402 795.75294.402 795.75296.402 795.75299.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 103A Handle,Rear 3650JJ2003E 3650JJ2003M 3650JJ2003F 3650JJ2003M 3650JJ2003M 103B Handle,Rear 3650JJ2003A 3650JJ2003L 3650JJ2003B 3650JJ2003L 3650JJ2003L 103C Cover Assembly,Lower 3551JJ1015B 3551JJ1015F 3551JJ1015D 3551JJ1015F 3551JJ1015F 103E Rail,Slide...
  • Page 65 #EV# 795.75292.402 795.75293.402 795.75294.402 795.75296.402 795.75299.402 Loc No. Description Part No. Part No. Part No. Part No. Part No. 282E Cap,Hinge 5006JJ2001A 5006JJ2001F 5006JJ2001E 5006JJ2001F 5006JJ2001F 282F Decor,Duct 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 3806JL2006D 282H Cap,Hinge 5006JJ3004A 5006JJ3004E 5006JJ3004D 5006JJ3004E 5006JJ3004E 285A Guide Assembly,Rail 4975JJ2007G...
  • Page 66 LAST EDITION: Oct 31,2005...
