  • Page 1 Exterity AvediaPlayer r92xx series V1.1 Administrator’s Guide...
  • Page 2 Warranty Printed in UK A copy of the specific warranty terms applicable to your Exterity products and replacement parts Exterity Limited can be obtained from Exterity. To request more Ridge Way information or parts, email Hillend Industrial Park Dalgety Bay, support@exterity.com...

  • Page 3: Table Of Contents

    AvediaPlayer r92xx series V1.1 Contents USA and Canada ............................5 EU and Others ............................6 Safety Information ............................6 Summary ................................. 7 How this guide is organised ........................8 The AvediaPlayer r92xx Series Receivers ....................... 9 General ..............................9 Getting Started ............................... 12 AvediaPlayer Physical Interfaces ........................
  • Page 4 AvediaPlayer r92xx series V1.1 Configuring Channel Learning ........................55 Configuring Web Services ........................57 Setting Encryption ............................ 59 Setting Display Modes..........................60 Configuring TV Control ..........................63 Configuring Failover ..........................65 Configuring Remote Functions ......................... 66 Admin Interface .............................. 68 Admin interface pages..........................

  • Page 5: Usa And Canada

    Important Safety Instructions There are no instructions specifically for service personnel in this document. There are no user serviceable parts inside any Exterity product. To prevent electric shock or fire hazard, do not remove cover. Refer service to qualified service personnel.

  • Page 6: Eu And Others

    Safety Information WARNING: There are no user serviceable parts inside any Exterity product. To prevent electric shock or fire hazard, do not remove cover. Refer service to qualified service personnel. WARNING: For 230/240 volt operation, be sure to use a harmonised grounded 3 conductor cord, rated 6 Amp minimum.

  • Page 7: Summary

    AvediaPlayer r92xx series V1.1 1 Summary This manual explains how to set up, use and manage Exterity AvediaPlayer r92xx series receivers. The AvediaPlayers are network devices which display an IP network delivered MPEG transport stream on a television or display.

  • Page 8: How This Guide Is Organised

    4 – AvediaPlayer Physical Interfaces describes the connections available on your receiver 5 – Remote Control describes the Exterity remote controllers and the features available 6 – Using the Mounting Kits describes basic aspects of setting up your receiver 7 – Management Interface lists the 4 interfaces available for the AvediaPlayer receivers;...

  • Page 9: The Avediaplayer R92Xx Series Receivers

    The receiver can be powered through the network interface by Power over Ethernet (PoE) using any LAN Switch or Mid-span device meeting 802.3af PoE specifications. If this is not available, it can be powered using an external power supply available from Exterity. Refer to Physical Interfaces on page 14 for further details.
  • Page 10 Channel Discovery The default mechanism of channel discovery used is to listen for SAP announcements from Exterity streaming products and other third-party streaming equipment. It is also possible to use an XML channel list hosted on a web server. Refer to Setting Channel Learning of page 55 for more details.
  • Page 11 Exterity sales representative for details of the available AvediaPlayer r92xx series installation accessories. Receiver Development Kit (RDK) The Receiver Development Kit (RDK) is a platform that enables Exterity partners to create customised solutions using third-party applications such as middleware. Third-party applications can control the Exterity receiver through: ...

  • Page 12: Getting Started

    Exterity. Note: The External Power Supply must be ordered as an accessory (avply-psu-##) with the country specific power cord. Consult your Exterity sales representative for more information. CAUTION: The AvediaPlayer r92xx series receivers are not compatible with Exterity idaptor (idapt-psXX) power supplies.
  • Page 13 AvediaPlayer r92xx series V1.1 6. Configure Name and Location Specify a name and location for the AvediaPlayer receiver so that you can easily identify and locate it in the future. You can configure a name and location using the AvediaServer Director (shown on page 33), IPTV Manager (shown on page 34), or the...

  • Page 14: Avediaplayer Physical Interfaces

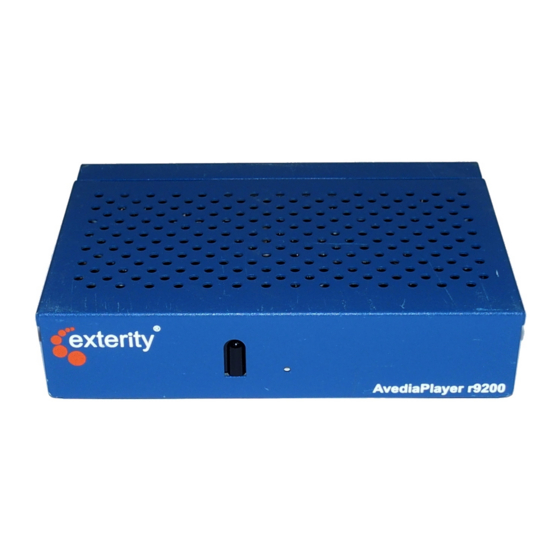

    1. IR Window - The IR window enables full user control of the AvediaPlayer receiver using the Exterity Remote Control. IR control functions can be extended using an additional IR receiver eye connected to the rear panel. The front panel IR receiver is disabled when a rear panel connection is made.

  • Page 15: Rear Panel Interfaces

    AvediaPlayer r92xx series V1.1 Rear Panel Interfaces The rear panels of the AvediaPlayer r92xx series receivers are all fitted with the same power inlet, IR receiver jack, RJ-45 LAN, RJ-45 Serial, TOS, USB and HDMI connectors, and recessed Reset button as shown in Figure 2. Additional connectors are fitted to the AvediaPlayer r9210 for analogue audio and video output, and to the AvediaPlayer r9220 for connection of additional LAN devices.
  • Page 16 It can also be used to allow the receiver to communicate with a serial-controllable television. The interface wiring is shown in APPENDIX E. Contact your Exterity supplier for more details on supported televisions. 6. TOS Use a standard TOSLINK cable to connect the 2 channel PCM or Bitream audio output to an external audio system if required.
  • Page 17 AvediaPlayer r92xx series V1.1 7. USB A keyboard, mouse, or external storage device (FAT32 format) can be connected to the USB port. The storage device can be used as a source of content and playlist to provide failover support. Multiple USB devices can be connected when used in conjunction with a USB hub. 8.

  • Page 18: Kensington Lock

    AvediaPlayer r92xx series V1.1 AvediaPlayer r9220 Connections In addition to the common connections, more LAN connections are available on the AvediaPlayer r9220 as shown in Figure 5. Common Connections on page 15 describes the connectors fitted to all AvediaPlayer r92xx receivers. Figure 5 AvediaPlayer r9220 Connectors 1.

  • Page 19: Remote Control

    AvediaPlayer r92xx series V1.1 5 Remote Control The AvediaPlayer r92xx series receivers can be controlled using the Exterity Infra Red (IR) or wired remote controllers. This chapter contains the following sections:  Remote Control Key Functions  Inserting Batteries ...
  • Page 20 AvediaPlayer r92xx series V1.1 Menu Back/Cancel Standby Channel up Navigate up Channel down Navigate right Navigate left Volume up Navigate Down Mute Volume down Not Used Not Used Not Used Not Used Rewind Fast forward Play Pause Previous scene Record Skip scene Stop Mode...
