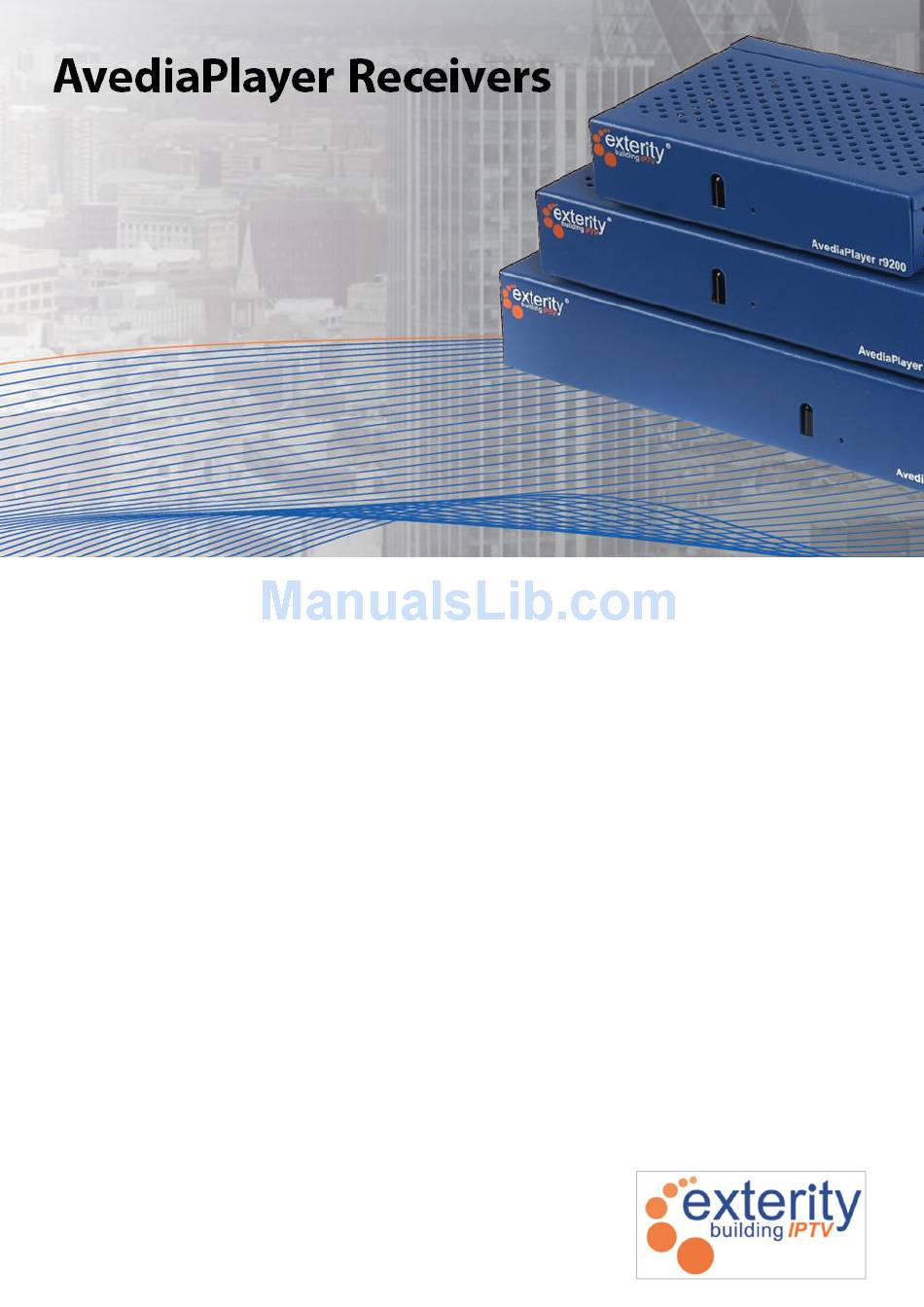

- Page 1 Exterity AvediaPlayer r92xx IPTV Receivers Installation Solutions Guide...
- Page 2 Warranty Printed in UK A copy of the specific warranty terms applicable to your Exterity products and replacement parts Exterity Limited can be obtained from Exterity. To request more Ridge Way information or parts, email Hillend Industrial Park Dalgety Bay, support@exterity.com...
-
Page 3: Table Of Contents
AvediaPlayer r92xx Installation Solutions Guide Contents Contents..................................3 Introduction ..............................4 Scope ................................. 4 Audience ..............................4 Using the Installation Kits ........................... 4 The AvediaPlayer r92xx Receivers ........................5 General ..............................5 HDMI ................................5 Power ................................. 5 Remote Control ............................5 Device Administration.......................... -
Page 4: Introduction
There are no instructions specifically for service personnel in this document. There are no user serviceable parts inside any Exterity product. To prevent electric shock or fire hazard, do not remove cover. Refer service to qualified service personnel. -
Page 5: The Avediaplayer R92Xx Receivers
AvediaPlayer r92xx Installation Solutions Guide 2 The AvediaPlayer r92xx Receivers General The AvediaPlayer r92xx receiver are network devices which displays an IP network delivered MPEG-2 transport stream (TS) on a television or display. The AvediaPlayer r92xx receivers provide the following AV outputs: ... -
Page 6: Fitting A Kensington Lock
AvediaPlayer r92xx Installation Solutions Guide 3 Fitting a Kensington Lock Fitting a Kensington type lock to the AvediaPlayer receiver offers a method of securing the device whilst allowing easy access to cables and re-positioning if required. The following are required: ... -
Page 7: Fitting An Under-Desk/Wall Mounting
IR receiver window for remote control purposes. The following are required: AvediaPlayer Under-surface/Wall mounting bracket – Exterity avply-dbkt 2 M2.5 x 4mm Pozidriv screws – supplied ... - Page 8 AvediaPlayer r92xx Installation Solutions Guide 2. Align the AvediaPlayer receiver as shown in Figure 4 and attach to the bracket using the 2 supplied M2.5x4mm Pozidriv screws. Figure 4 Attaching to the Under Surface Bracket 3. Use suitable fasteners to attach the completed assembly to a wall, or to the underside of a desk or counter surface as shown in Figure 5.
-
Page 9: Fitting Tv Mounting Plates And Secure Enclosure
The following are required: AvediaPlayer Small TV mounting plate – Exterity avply-vsbkt Remote Control with IR Extension – avply-rck, or Tethered Remote Control – avply-rct, or Infrared Extender only – avply-ir38. - Page 10 AvediaPlayer r92xx Installation Solutions Guide Figure 7 Feet and Threaded Mountings 2. Align the AvediaPlayer receiver as shown in Figure 8 and attach to the bracket using 4 supplied M2.5 x4 Pozidriv cross CSK flat head screws. Figure 8 Attaching to the Small TV Mounting Plate 3.
-
Page 11: Attaching The Large Tv Mounting Plate
For this type of mounting, a tethered remote control or an IR receiver extender is likely to be required to enable remote control of the receiver. The following are required: AvediaPlayer Large TV mounting plate – Exterity avply-vlbkt 4 M2.5x4 Pozidriv cross CSK flat head – supplied ... - Page 12 AvediaPlayer r92xx Installation Solutions Guide 5. Align the AvediaPlayer receiver as shown in Figure 8 and attach to the bracket using 4 supplied M2.5x4 Pozidriv cross CSK flat head screws. Figure 11 Attached to the Large TV Mounting Plate 6. The assembly is now ready to be attached to a TV. Refer to Attaching to a TV or Display on page 15 for more information.
-
Page 13: Fitting The Enclosure
You can fit the enclosure before or after attaching the mounting plate to a TV. The following parts are required: AvediaPlayer Large or Small TV mounting plate – Exterity avply-vlbkt or avply-vsbkt AvediaPlayer Enclosure – part of Exterity avply-ebkt ... - Page 14 AvediaPlayer r92xx Installation Solutions Guide 9. Fit the 2 M3x6mm pan head screws into the retaining lugs as shown, using secure fasteners if required. 10. The enclosure fitting is now complete. Sufficient space is available within the enclosure to allow any spare cable length to be coiled and tied.
-
Page 15: Attaching To A Tv Or Display
AvediaPlayer r92xx Installation Solutions Guide Attaching to a TV or Display The TV Mounting Plates meet a wide variety of installations, allowing you to fix the AvediaPlayer receiver to the TV or display whilst enabling the use of the TV stand or widely available mounting brackets.. -
Page 16: Installing The Wall Integrated Bracket
Line-of-sight access if the IR remote extender is to be used Wall Integrated Bracket Components The following items are supplied: Wall Integrated Bracket – Exterity avply-sbkt, containing: Back box assy – 1 Wall clamp bracket – 3 Mounting bracket – 1 Front Cover –... -
Page 17: Installation Procedure
AvediaPlayer r92xx Installation Solutions Guide Additional items required (not supplied with kit): AvediaPlayer r9200 IPTV Receiver – avply-r9200 Remote Control with IR Extension – avply-rck, or Tethered Remote Control – avply-rct, or Infrared Extender only – avply-ir38 ... - Page 18 AvediaPlayer r92xx Installation Solutions Guide 4. Slide the 3 locating plates into place and tighten the 3 M3 x 16 Pozidriv screws until the wall box is firmly held. Installer’s Guide...
-
Page 19: Attaching The Avediaplayer To The Mounting Bracket
AvediaPlayer r92xx Installation Solutions Guide 2. Attaching the AvediaPlayer to the mounting bracket The AvediaPlayer r9200 is attached to the mounting bracket using the threaded mountings on the rear underside of the device. To fit the receiver mounting bracket: 1. Locate and prize-off the 2 removable feet from the rear-underside of the AvediaPlayer receiver. -
Page 20: Connecting All Cables To The Avediaplayer R9200
AvediaPlayer r92xx Installation Solutions Guide 3. Connecting all cables to the AvediaPlayer r9200 Connect the LAN, HDMI and remote control cables to the AvediaPlayer r9200. To connect the cables: 1. Connect the HDMI Cable from the TV/Display. 2. Connect either the tethered Remote Control handset cable, or the IR extender cable. -
Page 21: Fit Cable Clamps
AvediaPlayer r92xx Installation Solutions Guide 2. Whilst holding the assembly in place, fix the bracket to the wall box using two M3 nuts and locking washers. 5. Fit Cable Clamps The cable clamps ensure that the cables cannot be pulled from their respective connectors. To fit the cable clamps: 1. -
Page 22: Fit The Wall Integrated Bracket Cover
AvediaPlayer r92xx Installation Solutions Guide 6. Fit the Wall Integrated Bracket Cover The cover conceals the AvediaPlayer receiver and cables. You can further improve security by using tamper-proof screws to attach it. To fit the cover: Position the cover so that the locating lugs fit over the slots on the upper edge of the wall box, and the mounting pegs on the lower edge. -
Page 23: Final Step
AvediaPlayer r92xx Installation Solutions Guide 7. Final Step Refer to the AvediaPlayer r92xx series Administrator’s Guide for configuration and operating information. When connected to a TV/Display, you can use the engineering screen to display information about the device including its name, IP address and firmware version. This may help you identify individual devices. -
Page 24: Appendix A Support And Contact Information
AvediaPlayer r92xx Installation Solutions Guide APPENDIX A Support and contact information Technical Support for Exterity products is provided by authorised Systems Integrators and Resellers. Please contact your Systems Integrator or Reseller with any Support issues. Installer’s Guide...
