Summary of Contents for Exterity AvediaPlayer R9 series

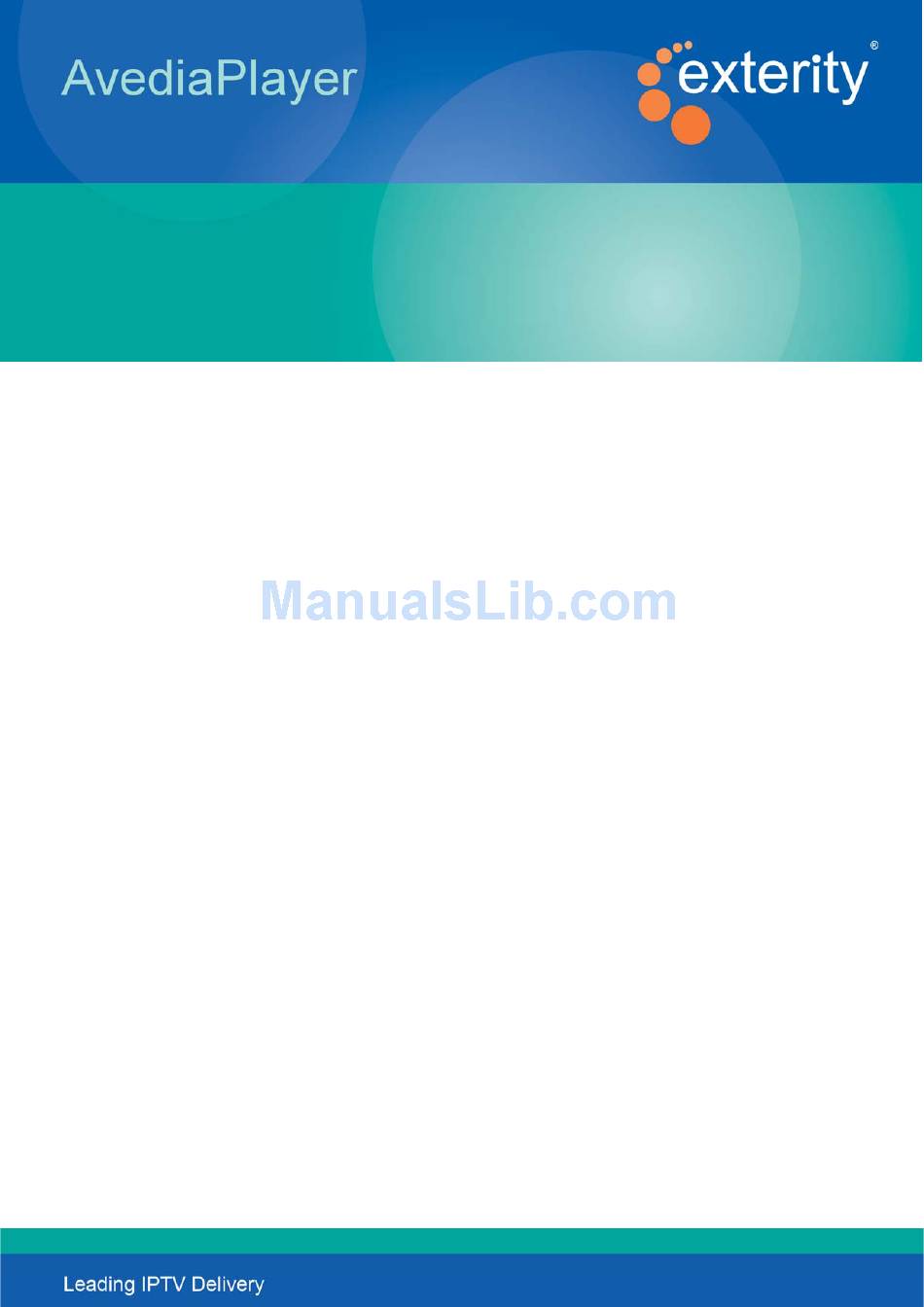

  • Page 1 Exterity AvediaPlayer r92xx Exterity AvediaPlayer r9xxx Series Receiver version 3.2 Series Receiver Remote Control Handset Guide...

  • Page 2: Safety Notices

    Technical Support for Exterity products is provided by authorized Systems Integrators and Resellers. Please contact your Systems Integrator or Reseller with any support issues. Warranty A copy of the specific warranty terms applicable to your Exterity products and replacement parts can be obtained from Exterity. To request more information or parts, email support@exterity.com...

  • Page 3: Safety And Environmental Instructions

    Safety and Environmental Instructions Documentation Conventions The following conventions are used in this guide: Note: A Note calls attention or adds information that is important for the proper operation of the product. Caution: A caution notice denotes a hazard. It calls attention to an operating procedure, practice, or the like that, if not correctly performed or adhered to, could result in damage to the product or loss of important data.
  • Page 4 Introduction This manual explains how to program the Exterity Remote Control handset V5. The handset is used in conjunction with AvediaPlayer r92xx and r93xx Receivers. In its default mode, all the buttons of the handset control the operation of AvediaPlayer Receivers.
  • Page 5 The Remote Control Handset AvediaPlayer Receivers can be controlled using the Exterity Infrared (IR) remote control handset. Inserting Batteries The batteries for the IR Remote Control are shipped separately. If the batteries in the remote control stop working, they should be replaced with two AAA sized replacements. Ideally use carbon zinc (R03) replacement batteries.
  • Page 6 Chapter 2: The Remote Control Handset Figure 1 Remote Control Handset v5 Functions...

  • Page 7: Programing The Remote Control

    Programing the Remote Control Handset Five buttons on an Exterity remote control handset V5 can be reconfigured to directly control a TV. Several methods are available to configure the remote to control a specific TV. Each method is triggered by a special key-press. An overview of the programing features and the corresponding key press is shown in Table 1, with more details in subsequent sections.
  • Page 8 Chapter 3: Programing the Remote Control Handset General • When you start a programing feature, the Standby LED on the handset turns on to indicate this. • When you enter a valid key press sequence in Programing mode, the Standby LED blinks in confirmation.
  • Page 9 Chapter 3: Programing the Remote Control Handset To select a brand search: 1 Ensure the TV is turned on. 2 Press and hold 1 and 3 together for a minimum of 3 seconds and the Standby LED turns on. 3 Release the key(s). 4 Enter the 4-digit code for the brand.
  • Page 10 Chapter 3: Programing the Remote Control Handset Note: Only digit keys are allowed. When a digit is pressed, the LED turns off for the duration of the key-press with a 150ms minimum. Any other key press will result in an invalid sequence. Note: If the first digit is 9, the remote handset expects the Manufacturing Reset codes (page 11).
  • Page 11 Chapter 3: Programing the Remote Control Handset Note: No blinks indicate a zero. There is no confirmation blink to complete this process as it may be confused with a code-set number blink. A value of 9999 indicates no programed code-set. Any deviation from the 1, 2, 3, 4 sequence is seen as an invalid key press.
  • Page 12 Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code A.R. Systems 0012 Haaz 1172 Qingdao 2308 0016 Haier 1175 Quadral 2314 Accent 0019 Halifax 1179 Quasar 2320 Acer 0028 Hallmark 1180 Quelle 2322...
  • Page 13 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Amitech 0130 Home Electronics 1265 Saisho 2437 Amoi 0132 Hongmei 1272 Saivod 2439 Amplivision 0138 Hornyphon 1277 Sakai 2440 Ampro 0139 Hoshai...
  • Page 14 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Axxon 0303 Interfunk 1377 Sherwood 2557 Baier 0308 Internal 1379 Shintoshi 2564 Baile 0310 Intervision 1386 Shivaki 2567 Baird 0311 Irradio 1396...
  • Page 15 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Brockwood 0430 1512 Soundwave 2689 Broksonic 0432 Kiota 1522 Sova 2690 Brother 0433 Kioto 1523 Sowa 2691 Bruns 0435 Kiton 1525 Soyea...
  • Page 16 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Clarivox 0576 Local India TV 1653 Synco 2811 Classic 0580 Local Malaysia TV 1656 Syntax 2814 Clatronic 0581 Lodos 1659 Sysline 2815...
  • Page 17 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code 0717 Medion 1787 Telestar 2931 Decca 0718 Megapower 1791 Teletech 2934 Dell 0725 Megas 1792 Teleton 2935 Denko 0730 Megatron 1795 Televideon...
  • Page 18 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Dynatron 0855 Naiko 1930 TVTEXT 95 3082 Dynex 3476 Nakimura 1933 Uher 3089 E:max 0856 Naonis 1936 Ultravox 3095 Easy Living 0860 Narita...
  • Page 19 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Ferguson 0996 Omega 2072 Waycon 3237 Fidelity 0998 Omni 2074 Wega 3238 Filsai 1000 Onida 2081 Wegavox 3239 Finlandia 1003 Onimax 2082...
  • Page 20 Chapter 4: Brand Code Reference List TV Brand (A-G) Brand TV Brand (H-P) Brand TV Brand (Q-Z) Brand Code Code Code Gold Vision 1132 Pilot 2207 Woxter 3286 Goldfunk 1135 Pioneer 2212 Wyse 3288 GoldStar 1140 Pionier 2213 Xenius 3297 Gooding 1141 Plantron...
  • Page 21 TV Brand Code-set Manual Load List The following table lists remote control codes for control of a TV using the Exterity remote control handset V5. Refer to “Manual Code-set Entry Programing (1+6)” on page 9 to apply the code. Brands...
  • Page 22 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets AlfaView 1775 Alfide 1524 Alien 1759 Alienware 1408 Alkos 1439 Allorgan 1513, 1490 Allstar 1442, 1709, 1011 All-Tel 1750 America Action 1036 Amitech 1789, 1717, 1816, 1912 Amoi 1833, 2342 Amplivision 1490, 1649, 1644 Ampro...
  • Page 23 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Atori 1429 Auchan 1473 Audiosonic 1442, 1709, 1468, 1727, 1728, 1490, 1925, 1429, 1902, 1793, 1654, 1649, 1504, 1492, 1662, 1750, 1011, 1127, 1168, 1681, 1603 Audioton 1490, 1649, 1504, 1662 Audiovox 1036, 1015, 1106, 1528, 1541, 1455, 1135, 1182 Audioworld...
  • Page 24 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets 1326, 1201, 1211 Binatone 1490 Black Diamond 1759, 1709, 1769, 1703, 1132, 1168, 1170, 1216, 1230 Black Stripe 1439 Blackway 1492 Blaupunkt 1690, 1069, 1485, 1682, 1641, 1483 Blue Media 1883, 1847 Blue Sky 1442, 1759, 1727, 1668, 1719, 1728, 1879, 1762, 1740, 1801, 1889, 1802, 1705, 1868, 1703,...
  • Page 25 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Cascade 1429, 1442, 1709, 1011 Casio 1442, 1709, 1473, 1646, 1011 1876, 2155 Cathay 1442, 1709, 1882, 1011 1442, 1490, 1011 Celebrity 1616, 1001 Celera 1111 Celestial 1168, 1170 cello 1907, 1896 Centrex...
  • Page 26 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Cosmel 1429, 1442, 1709, 1011 CPRTec 1705, 1801 Craig 1036 Crosley 1688, 1473, 1616, 1047, 1001 Crown 1429, 1649, 1442, 1709, 1668, 1716, 1759, 1868, 1719, 2021, 1727, 1699, 1728, 1660, 1694, 1487, 1658, 1036, 1011, 1070, 1524, 1105, 1125, 1127, 1216, 1652 Crown Mustang 1524...
  • Page 27 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets DiBoss 1442, 1709 Dick Smith 1722, 1313 Electronics Digatron 1442, 1709, 1011 Digihome 1873, 1762, 1667 Digiline 1442, 1709, 1719, 1011, 1105 DigiLogic 1442, 1709 DigiMax 1209 Digisonic 1591 Digital Device 1847 Digital Life...
  • Page 28 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets E:max 1802, 1699, 1834 Easy Living 1752, 1872, 2254, 1791, 1879 ,1849, 1778, 1793, 2023, 20051786, 1925, 1603 Ecco 1140 1442, 1011 Edison-Minerva 1668 Eiki 1730 Elbe 1655, 1701, 1510, 1649, 1473, 1442, 1688, 1709, 1492, 1485, 1490, 1678, 1647, 1011, 1078 Elbe-Sharp 1678 Elcit...
  • Page 29 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Excello 1759, 1216 Expert 1473 Exquisit 1442, 1709, 1011 Fenner 1654, 1429 Ferguson 1705, 1509, 1468, 1692, 1442, 1954, 1647, 1686, 1664, 1759, 1935, 1709, 1439, 1716, 1449, 1462, 1069, 1843, 2090, 1011, 1079, 1089, 1216 Fidelity 1677, 1473, 1647, 1442, 1709, 1653, 1658, 1504, 1683, 1011, 1024, 1077 Filsai...
  • Page 30 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets General Electric 1509 General Technic 1429 Genesis 1011 Genexxa 1492, 1442, 1709, 1658, 1473, 1429, 1011 Gericom 1778, 1754, 1740, 1847, 1807, 1750, 1815, 1775 1024, 1027 G-Hanz 1801, 1263 Giant 1429, 1490 Gibralter...
  • Page 31 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Hankook 1333 Hanns.G 1849, 1587 Hannspree 1800, 1849, 2027, 2214, 1559, 1577, 1587, 1591 Hanseatic 1442, 1709, 1674, 1476, 1705, 2001, 1964, 1513, 1490, 1727, 1740, 1644, 1708, 1662, 1649, 1718, 1429, 1646, 1473, 1647, 1510, 1683, 1011, 1078, 1089, 1093, 1127 Hantarex 1429, 1442, 1709, 1678, 1798, 1750, 2197, 1011...
  • Page 32 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Howard 1408 Computers 1419, 1408, 1452, 1289 Huafa 1051 Huanyu 1654 Huari 1051 Hugoson 1872, 1778 Humax 1792, 1908, 1291, 1295 Huodateji 1019 Hush 1408 1803 Hygashi 1490 Hyper 1429, 1490 Hypersonic 1647...
  • Page 33 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Interfunk 1468, 1646, 1677, 1473, 1647, 1649, 1442, 1709, 1011, 1077 Internal 1442, 1709, 1703, 1674, 1654, 1078 Intervision 1490, 1442, 1653, 1476, 1649, 1429, 1709, 1668, 1492, 1473, 1504, 1011 iPure 1803 Irradio...
  • Page 34 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Kenwood 1018, 1061 Keydo 1878 Keymat 1795, 1805 Khind 1718, 1124, 1210 1490 Kingsbrook 1759 Kiota 1653 Kioto 1078, 1124, 1047 Kiton 1709, 1442, 1719, 1011, 1105 1111, 1088 1011 Kloss 1100...
  • Page 35 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Leyco 1504, 1442, 1709, 1513, 1694, 1011 1807, 1792, 1939, 2741, 1854, 1761, 1647, 1484, 1473, 1699, 1468, 1722, 1728, 1429, 1709, 1727, 1490, 1442, 1895, 1649, 1018, 1926, 1927, 1501, 1020, 1333, 1257, 1539, 1146, 1584, 1631, 1011, 1044, 1078, 1127, 1405, 1681 Liesenkotter 1442, 1709, 1011...
  • Page 36 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Master's 1442, 1674 Mastro 1092, 1722, 1124, 1313 Masuda 1653, 1492, 1011 Matsui 1769, 1683, 1759, 1872, 1754, 1873, 1487, 1069, 1485, 1727, 1653, 1694, 1473, 1646, 1678, 1439, 1496, 1490, 1513, 1442, 1709, 1668, 1664, 1923, 1429, 1732, 1935, 2155, 1011, 1070, 1078, 1127, 1216, 1667, 2007 Matsushita 1715, 1096, 1169...
  • Page 37 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Minutz 1021 Mirai 1872, 1914, 1909 Mirror 1920 Mitsai 1313 Mitsubishi 1462, 1471, 1677, 1442, 1682, 1709, 1487, 1759, 1018, 1448, 1484, 1005, 1009, 1032, 1333, 1535, 1540, 1153, 1011, 1044, 1043, 1077, 1078, 1241, 1096, 1250,1216 Mitsuri General 1473 Mivar...
  • Page 38 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets New World 1492 Newave 1333, 1009 Newsonic 1591 Nexus Electronics 1 1608 Nicam 1683 Nikai 1230 Nikkai 1429, 1873, 1492, 1442, 1709, 1490, 1504, 1439, 1874, 1011 Nikkei 1727, 2172, 1127 Nikko 1484, 1333, 1061, 1015 Nimbro...
  • Page 39 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Onimax 1727, 1127 1762, 1879, 2166, 1709, 1873, 1896, 1667 Onwa 1653, 1492, 1036 Onyx 1879, 1896 Opera 1793, 1727, 1442, 1709, 1896, 2100, 1011 Oppo 1497 Optimus 1715, 1482, 1096, 1043, 1169, 1145, 1305, 1165, 1056 Optoma 1894, 1559, 1607 Optonica...
  • Page 40 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Philco 1660, 1688, 1473, 1649, 1442, 1709, 1476, 1470, 1047, 1061, 1024, 1018, 1554, 1150, 1027, 1011, 1051, 1333, 1023, 1212, 1118 Philex 1473 Philharmonic 1490 Philips 1709, 1442, 1938, 1824, 1891, 2015, 1695, 1429, 1647, 1812, 1811, 1690, 1654, 1842, 1822, 1698, 1764, 1913, 1633, 1309, 1047, 1126, 1239, 1549, 1337, 1632, 1001, 1019, 1011, 1333, 1044, , 616, 1077, 1078, 1098, 1506, 1369, 1042, 1866, 1856 Phocus...
  • Page 41 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Proton 1484, 1333 Protron 1494, 1252 Proview 1831, 1565, 1407 ProVision 1674, 1442, 1709, 1759, 1727, 1802, 1834, 1011, 1078, 1127 Proxima 1730 Pulsar 1018, 1020 Pvision 1751, 2001, 1201 1442, 1709, 1690, 1654, 1646, 1658, 1011, 1078 Pymi 1429...
  • Page 42 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Rolson 1924, 1602 Rover 1752 Rowa 1442, 1709, 1504, 1490, 1429, 1697, 1112, 1722, 1011, 1125 Royal Lux 1649, 1658 Rukopir 1709, 1442 Runco 1020, 1061, 1523, 1377, 1571 Saba 1705, 1468, 1692m, 1509, 1846, 1686, 1715, 1727, 1473, 1678, 1647, 1673, 1079, 1089, 1127 Sagem...
  • Page 43 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Seitech 1802, 1778 Seleco 1928, 1473, 1655, 1653, 1504 Semivox 1023 Semp 1053, 1058, 1560 Sencora 1429 Sentra 1439, 1492, 1429, 1646 Serie Dorada 1484, 1053, 1333 Serino 1701, 1448 Shanghai 1070 Shaofeng...
  • Page 44 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Soemtron 1750, 1815 Sogera 1644 Sogo 1803, 1699 Solavox 1647, 1473, 1686, 1442, 1709, 1011 Sole 1570 Sonawa 1492 Soniko 1442, 1709, 1011 Sonitron 1487, 1649, 1490, 1070 Sonix 1885, 1803 Sonneclair 1442, 1709, 1011...
  • Page 45 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Sunstech 2001, 1964 Sunwood 1442, 1709, 1429, 1011 Superla 1678, 1490 Superscan 1009, 1181, 1027 Supersonic 1429, 1487, 1070 SuperTech 1492, 1429, 1442, 1709, 1011, 1078 Supra 1654, 1429, 1484, 1333 Supre-Macy 1100 Supreme...
  • Page 46 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Technol Ace 1022 Technosonic 1795, 1982, 2032, 1442, 1709, 1802, 1674, 1754, 1705, 1078, 1089 Technotrend 1834, 1878, 2155 Techview 1478 Techvision 1879, 1834, 2032 Techwood 1769, 1759, 1873, 1049, 1363, 1019, 1216, 1230, 1667 Teckton 1803 Tecnimagen...
  • Page 47 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Tiny 1772 1484, 1333, 1363 1042 TNCi 1020 Tobishi 1492 Tobo 1112 Tokai 1442, 1709, 1719, 1473, 1490, 1654, 1429, 1759, 1688, 1011, 1105, 1216 Tokaido 1759, 1216 Tokyo 1439 Tomashi 1492...
  • Page 48 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets VANGUARD 1442, 1709 Vector Research 1061 Venturer 1882, 1835, 1916, 1592 Venus 1795 Vestel 1759, 1769, 1843, 1873, 1442, 1719, 1688, 1473, 1490, 1709, 1011, 1105, 1216, 1230, 1667 Vexa 1429, 1442, 1709, 1011 Victor...
  • Page 49 Chapter 5: TV Brand Code-set Manual Load List Brands Count Code-sets Weltblick 1442, 1709, 1644, 1490 Weltstar 1759, 1216 Westinghouse 1515, 1135, 1184, 1544, 1555, 1178, 1567, 1616, 1712, 1038, 1591 Weston 1442, 1709 Wharfedale 1442, 1476, 1784, 1709, 1802, 1873, 1849, 1988, 1643, 1011, 1078, 1112, 1209, 1210, 1313, 1667, 1681 White 1644, 1442, 1709, 1703, 1023, 1118, 1106, 1011...
