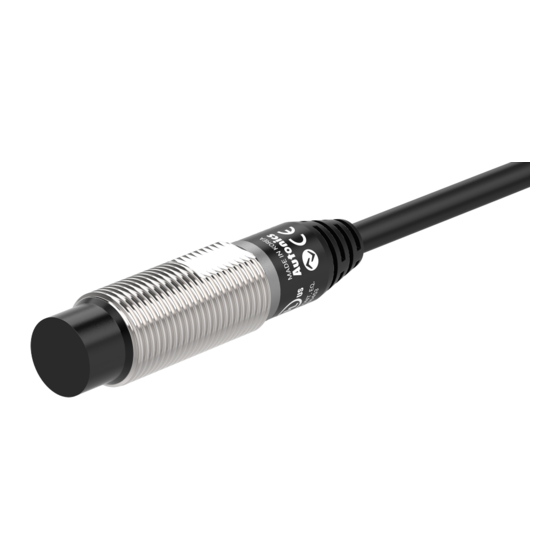

Cylindrical inductive long-distance proximity sensors

Advertisement

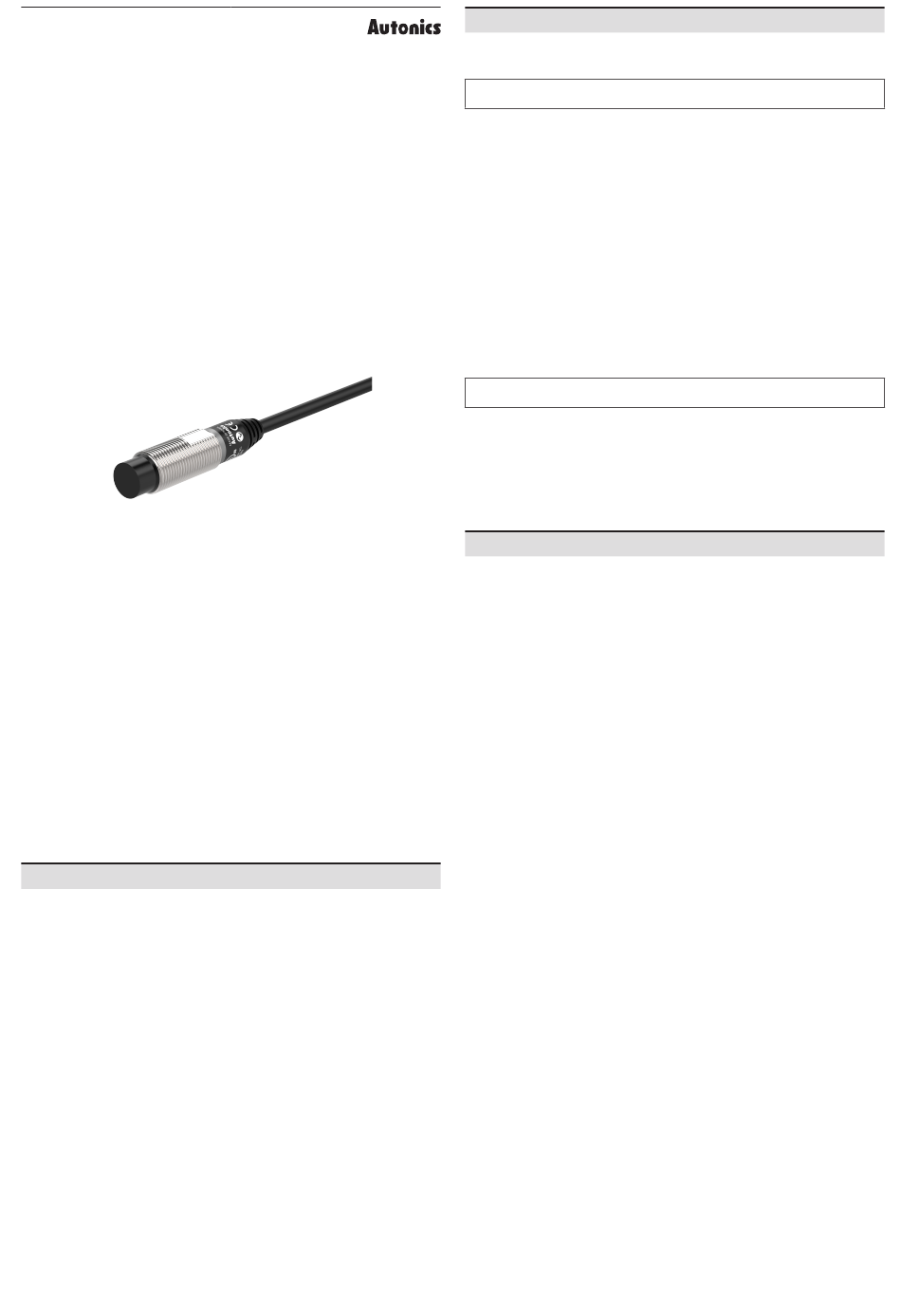

TCD210174AD
Cylindrical Inductive
Long-Distance
Proximity Sensors
PRD Series (IO-Link)
PRODUCT MANUAL
For your safety, read and follow the considerations written in the instruction
manual, other manuals and Autonics website.
The specifications, dimensions, etc. are subject to change without notice for product
improvement. Some models may be discontinued without notice.
Features
• Reduced installation work by identifying object IDs
• Malfunction and damage prevention through status monitoring
• Shortest time recovery through abnormal detection
• Mode indicator for check status
IO-Link mode
: Communication indicator (flashing green), operation indicator (orange),
abnormal detect indicator (cross-flashing green, orange)
SIO mode
: Operation indicator (orange), stable indicator (green),
abnormal detect indicator (cross-flashing green, orange)
• IP67 Protection rating (IEC standard)
ᜢ ᜨ ᜬ
Safety Considerations
• Observe all 'Safety Considerations' for safe and proper operation to avoid hazards.
• ᜸ symbol indicates caution due to special circumstances in which hazards may occur.
᜸ Warning
Failure to follow instructions may result in serious injury or death.
01. Fail-safe device must be installed when using the unit with machinery that
may cause serious injury or substantial economic loss.(e.g. nuclear power
control, medical equipment, ships, vehicles, railways, aircraft, combustion
apparatus, safety equipment, crime/disaster prevention devices, etc.)
Failure to follow this instruction may result in personal injury, economic loss or fire.
02. Do not use the unit in the place where flammable/explosive/corrosive gas,
high humidity, direct sunlight, radiant heat, vibration, impact or salinity
may be present.
Failure to follow this instruction may result in explosion or fire.
03. Do not disassemble or modify the unit.
Failure to follow this instruction may result in fire.
04. Do not connect, repair, or inspect the unit while connected to a power
source.
Failure to follow this instruction may result in fire.
05. Check 'Connections' before wiring.
Failure to follow this instruction may result in fire.
᜸ Caution
Failure to follow instructions may result in injury or product damage.
01. Use the unit within the rated specifications.
Failure to follow this instruction may result in fire or product damage.
02. Use a dry cloth to clean the unit, and do not use water or organic solvent.
Failure to follow this instruction may result in fire.
03. Do not supply power without load.
Failure to follow this instruction may result in fire or product damage.
Cautions during Use
• Follow instructions in 'Cautions during Use'.
Otherwise, it may cause unexpected accidents.
• 12 - 24 VDCᜡ power supply should be insulated and limited voltage/current or Class
2, SELV power supply device.
• Use the product, after 0.8 sec of supplying power.
• Wire as short as possible and keep away from high voltage lines or power lines, to
prevent surge and inductive noise.
Do not use near the equipment which generates strong magnetic force or high
frequency noise (transceiver, etc.).
In case installing the product near the equipment which generates strong surge
(motor, welding machine, etc.), use diode or varistor to remove surge.
• This unit may be used in the following environments.
- Indoors (UL Type 1 Enclosure)
- Altitude max. 2,000 m
- Pollution degree 3
- Installation category II

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRD Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Autonics PRD Series

  • Page 1 - Indoors (UL Type 1 Enclosure) For your safety, read and follow the considerations written in the instruction - Altitude max. 2,000 m manual, other manuals and Autonics website. - Pollution degree 3 The specifications, dimensions, etc. are subject to change without notice for product - Installation category II improvement.
  • Page 2: Ordering Information

    Software • Timer time (1 to 9999 ms) • Too close target detection and unstable detection alarm Download the installation file and the manuals from the Autonics website. • Control output (Push-Pull / NPN / PNP) ■ atIOLink • Output mode (N.O. (Normally Open) / N.C. (Normally Closed)) •...
  • Page 3: Specifications

    -|Transparent Guide|- Specifications Operation Timing Chart • Refer to the Setting Distance Formula for the unstable detection area and the too Installation Flush type close detection distance. Model PRD□12-4D-□-IL2 PRD□18-7D-□-IL2 PRD□30-15D-□-IL2 ■ IO-Link mode DIA. of sensing Ø 12 mm Ø...
  • Page 4: Parameter Index

    -|Transparent Guide|- Parameter Index ■ Process data • The current data value is displayed in real time. Parameter Byte0 (PD0) Byte1 (PD1) Format Setting range Description Detection Level 0 to 7 Uinteger 0 to 255 Outputs the detection signal value as specific 8 bit. Warning Boolean 0: Normal (OFF), 1: Warning (ON)
  • Page 5: Cutout Dimensions

    -|Transparent Guide|- Cut-out Dimensions Sensing Distance Feature Data by Target Material and Size • Unit: mm, For the detailed drawings, follow the Autonics website. Ø 12 mm Ø 18 mm Ø 30 mm Sensing distance (X) Mounting hole (H) Ø 12.5 Ø...
  • Page 6 10 12 15 18 20 25 30 35 40 45 50 60 70 75 80 90 100 One side length of sensing target d (mm) 10.0 20.0 15.0 10.0 5.0 5.0 10.0 15.0 20.0 Left ← Center → Right Sensing area (Y) 18, Bansong-ro 513Beon-gil, Haeundae-gu, Busan, Republic of Korea, 48002 www.autonics.com | +82-2-2048-1577 | sales@autonics.com...
