Summary of Contents for Caliber RMDO6ODAB-BT

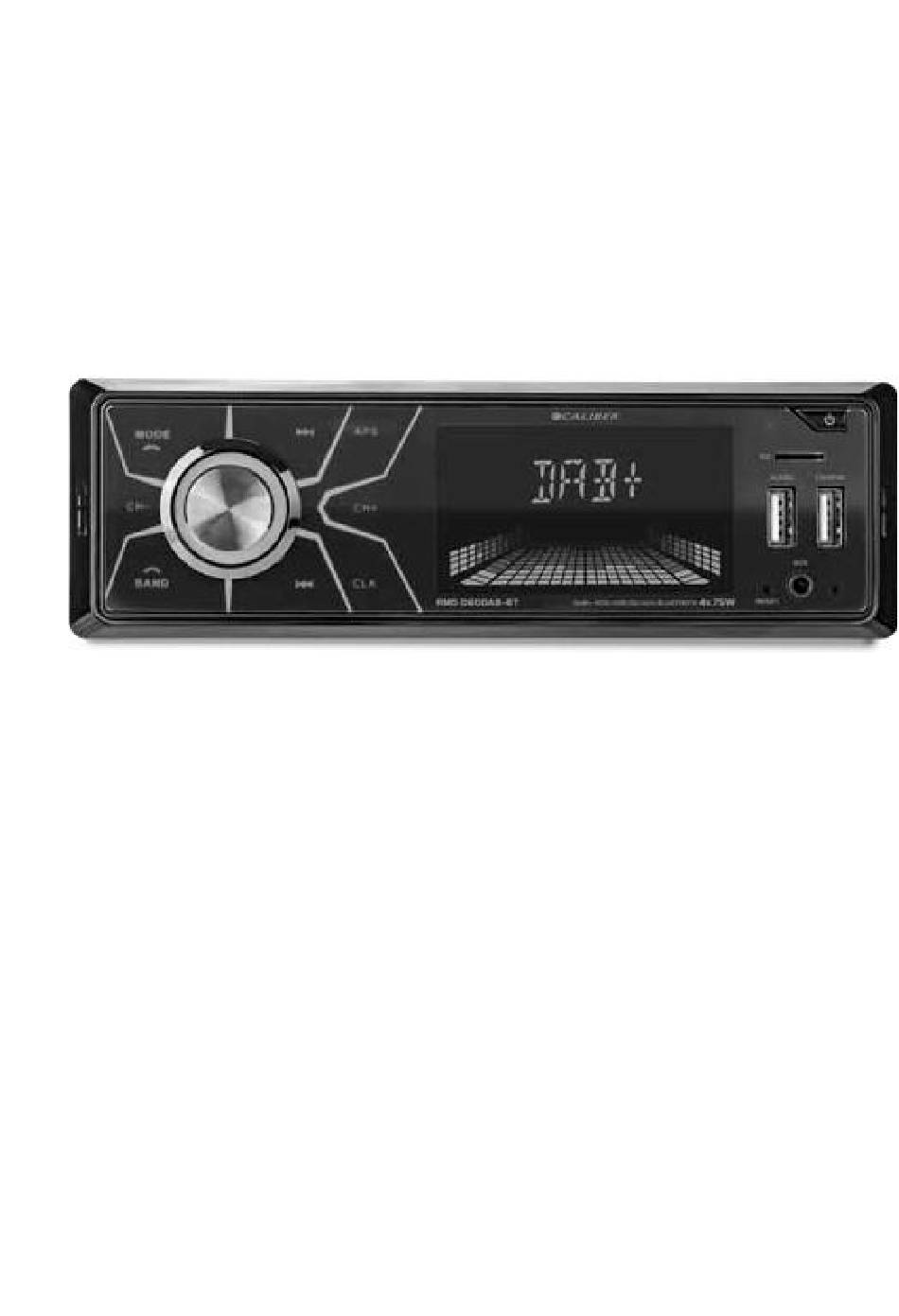

- Page 1 CAL IBER RMD O6ODAB-BT Manual...
- Page 2 Antenna Installation Male SMA...
- Page 3 Installazione del cablaggio White: Front Left CH RCA ouput Red: Front Right CH RCA ouput Red: Rear Right CH RCA ouput White: Rear Left CH RCA ouput B1. Altoparlante posteriore destro (+) I Viola B2. Diffusore posteriore destro(-) I Viola-Nero B3. Altoparlante anteriore destro(+) I Grigio B4.
- Page 4 Specifiche General: Power supply 12V DC Max power output neg. ground RMS power output 75Wx4 channels 20Wx4 channels Suitable speaker impedance (40 10% T.H.D.) Fuse 4-B ohm Dimensions (WxDxH) 190x133x59mm (outer sizes) 178x108x50mm (built-in part) Radio: FM Stereo Radio Frequency range Signal/noise ratio 87.5-108.0 MHz (Europe)
