Metra Electronics ABTI-CH2 Installation Manual

FROM CAR
ABTI-CH2

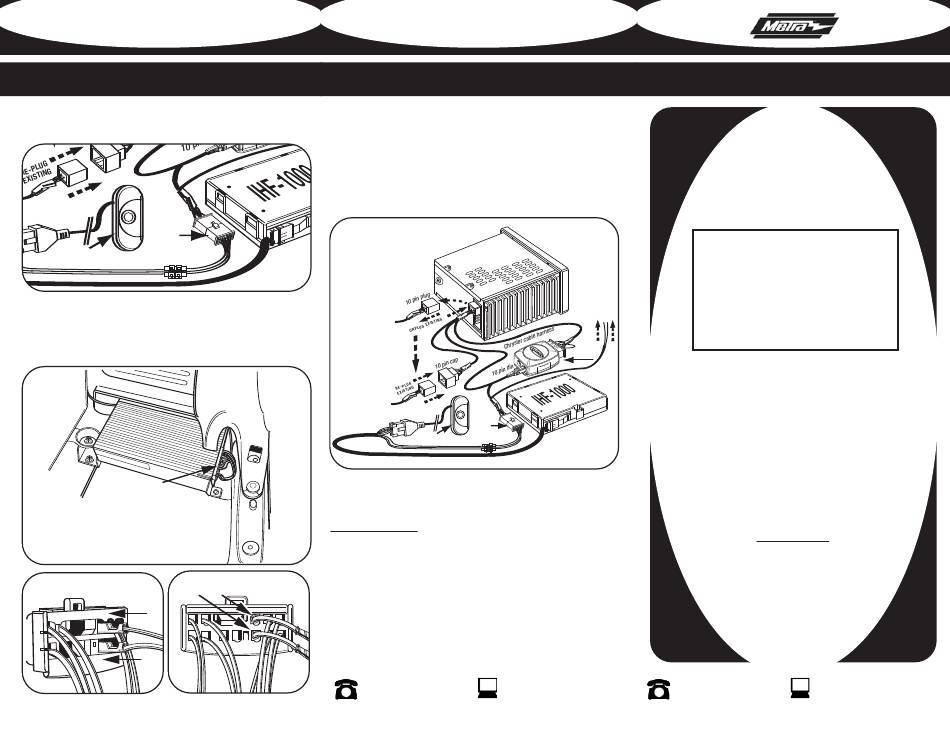

6) Connect the white 8-pin plug on the IHF-1000 cable to the
vehicle interface cable.
FROM CAR
White
8 pin
plug
IHF-1000 keypad
7) Run the two wires with exposed terminals to the amplifier,
which is typically mounted on the rear passenger side. Install the
terminals in the connector as show in the diagram.
Rear Amplifier
Connector Location
AMPLIFIER AUDIO CONNECTOR-
ADD TWO WIRES IN THE POSITION SHOWN BELOW
4
To
AMP
8) Install the IHF-1000 keypad on the dashboard of the vehicle,
ABTI-CH2
and route the wire to the IHF-1000 harness. Attach the keypad
connector to the harness.
9) Install the IHF-1000 microphone in an appropriate location (see
IHF-1000 instructions), route the wire to the IHF-1000 harness, and
attach the microphone connector to the harness.
10) Secure all components, and reinstall the radio.
11) Reconnect the vehicle battery.
OPERATION
Refer to the IHF-1000 manual for operation. All audio signals from
the IHF-1000 will be played through the car stereo. Adjust the vol-
ume using the radio's volume knob to a comfortable level. Audio
AUDIO WIRES FROM INTERFACE CABLE
from FM, CD, Satellite etc. will be automatically paused or muted
while calls are in process. The vehicle's radio does not need to be on
for IHF-1000 operations, but the vehicle's ignition must be on or in
accessory mode.
REV. 08/08/07
©Copyright 2007 Metra Electronics Corporation
ABTI-CH2
FROM CAR
FROM CAR
White
8 pin
plug
IHF-1000 keypad
1-800-221-0932 www.metraonline.com
ABTI-CH2
INSTALLATION
To
AMP
ABTI-CH2

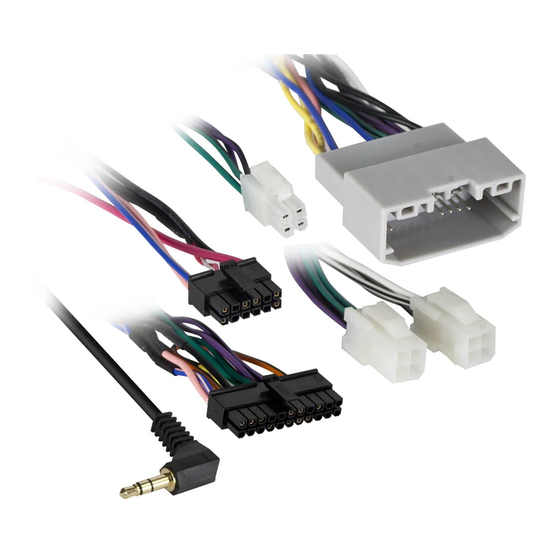

The ABTI-CH2 Chrysler Bluetooth interface is designed
to allow full integration of Motorola's IHF-1000
Bluetooth Hands free kit with Chrysler Pacifica vehicles.
The kit will allow users to listen to phone calls through
their car stereo. The currently playing radio source will
be automatically muted, and the phone volume may be
controlled by the radio.
* READ IMPORTANT WARNING ON PAGE 1
BEFORE ATTEMPTING ANY INSTALLATION
Chrysler Pacifica 2004-2007
INSTABTI-CH2
1-800-221-0932
©Copyright 2007 Metra Electronics Corporation
ABTI-CH2
CHRYSLER
BLUETOOTH
INTERFACE
MANUAL
A A P P P P L L I I C C A A T T I I O O N N S S : :
