Metra Electronics ABTI-GM3 Installation Manual

ABTI-GM3

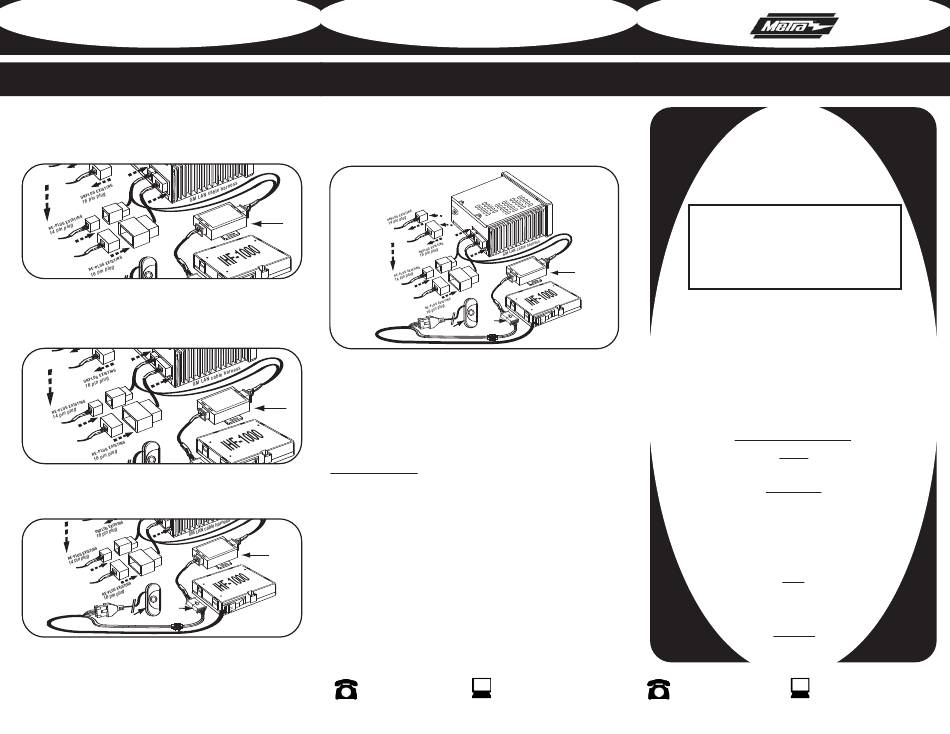

6) Connect the 14 pin cap on the ABTI-GM3 cable to the 14 pin
plug connected to the vehicle (the connector that was removed
from the back of the radio).
FROM CAR
FROM CAR
FROM CAR
FROM CAR
White
8 pin
plug
7) Connect the 16 pin cap on the ABTI-GM3 cable to the 16 pin
IHF-1000 keypad
plug connected to the vehicle (the connector that was removed
from the back of the radio).
FROM CAR
FROM CAR
FROM CAR
FROM CAR
White
8 pin
plug
8) Connect the white 12-pin plug on the ABTI-GM3 cable to the
IHF-1000 keypad
ABTI-GM3 module.
FROM CAR
FROM CAR
FROM CAR
FROM CAR
White
8 pin
plug
IHF-1000 keypad
9) Connect the white 8 pin plug on the IHF-1000 cable to the
ABTI-GM3 power cable, and connect the other end of the power
cable to the ABTI-GM3 module.
4
10) Fasten the IHF-1000 keypad to the dashboard of the vehicle
(refer to IHF-1000 instructions), and route the wire to the IHF-1000
harness. Attach the keypad connector to the harness.
ABTI-GM3
FROM CAR
FROM CAR
FROM CAR
FROM CAR
11) Install the IHF-1000 microphone in an appropriate location
(see IHF-1000 instructions), route the wire to the IHF-1000 har-
ness, and attach the microphone connector to the harness.
ABTI-GM3
12) Secure all components, and reinstall the radio.
13) Reconnect the vehicle battery.
OPERATION
Refer to the IHF-1000 manual for operation. All audio signals from
the IHF-1000 will be played through the car stereo. Adjust the vol-
ume using the radio's volume knob to a comfortable level. Audio
from FM, CD, Satellite etc. will be automatically paused or muted
ABTI-GM3
while calls are in process. Any OnStar operations will preempt the
operation of the IHF-1000. Keep in mind that if OnStar operations
start while you are on a call, the call will continue and the caller will
be able to hear you – watch what you say!
The vehicle's radio does not need to be on for IHF-1000 operations,
but the vehicle's ignition must be on or in accessory mode.
REV. 08/24/07
1-800-221-0932
©Copyright 2007 Metra Electronics Corporation
ABTI-GM3
ABTI-GM3
White
8 pin
plug
IHF-1000 keypad
INSTABTI-GM3
www.metraonline.com
ABTI-GM3
ABTI-GM3
GENERAL MOTORS
LAN
BLUETOOTH INTERFACE
MANUAL
INSTALLATION
The ABTI-GM3 is designed to allow full integration of Motorola's
IHF-1000 Bluetooth Hands free kit (Sold separately) with the
GMLAN vehicles listed above. The kit will allow users to listen to
phone calls through their car stereo. The currently playing radio
source will be automatically muted and the phone volume may
be controlled by the radio. OnStar operation is unaffected.
* READ IMPORTANT WARNING ON PAGE 1
BEFORE ATTEMPTING ANY INSTALLATION
A A P P P P L L I I C C A A T T I I O O N N S S I I N N C C L L U U D D E E : :
BUICK
Lucerne 2006-2007
CHEVROLET
Avalanche 2007
Equinox 2007
Impala 2006-07
Monte Carlo 2006-07
Silverado 2007
Suburban 2007
GMC
Acadia 2007
Sierra 2007
Yukon/ Yukon XL
PONTIAC
Torrent 2007
1-800-221-0932 www.metraonline.com
©Copyright 2007 Metra Electronics Corporation
