Installation

1. Insert the main holder (15) into the base (16), and tight up by the holder fixed screw (18).
2. Turn up the SS holder (13), and tight up by holder lock nut (14)
3. Insert the control panel (10), into the SS holder (13), and tight up by fixed screw (11)
4. Put the rear grill (5) on the motor cover (7), and tight up by the grill lock nut (4)
5. Put the blade (3) on the motor (6), and tight up by blade lock nut (2)
6. Put the front grill (1), to match the rear grill (5), and tight up the grill ring, fixed by grill
ring lock nut.

HANDLING THE APPLIANCE

POWER
• Press the button of ON/OFF (6), to select power on / off the appliance.
SPEED
• Press the button of ON/OFF (6) , to power on the appliace.
• Press the button of Speed (5), to select the fan speed.
• 3 speed for select: (Low - Mid - High)
MODE
• Press the button of ON/OFF (6) , to power on the appliace.
• Press the button of MODE , to select the fan mode.
• 3 mode for select: (NATURE / SLEEP/ NORMAL).
• The default mode is NORMAL, and the SLEEP/NATURE mode with the indicator
TIMER (0.5 - 7.5 HOURS)
• Press the button of ON/OFF (6) , to power on the appliance.
• Press the button of TIMER to the desired time period (0.5-7.5 Hours)
• It will now remain in operation until the selected period of time runs out.
• After the timer runs over , the device will turn off.
OSCILLATION
• Press the button of ON/OFF (6) , to power on the appliace.
• Press the button of OSCILLATION, appliance will swing from Left to Right.

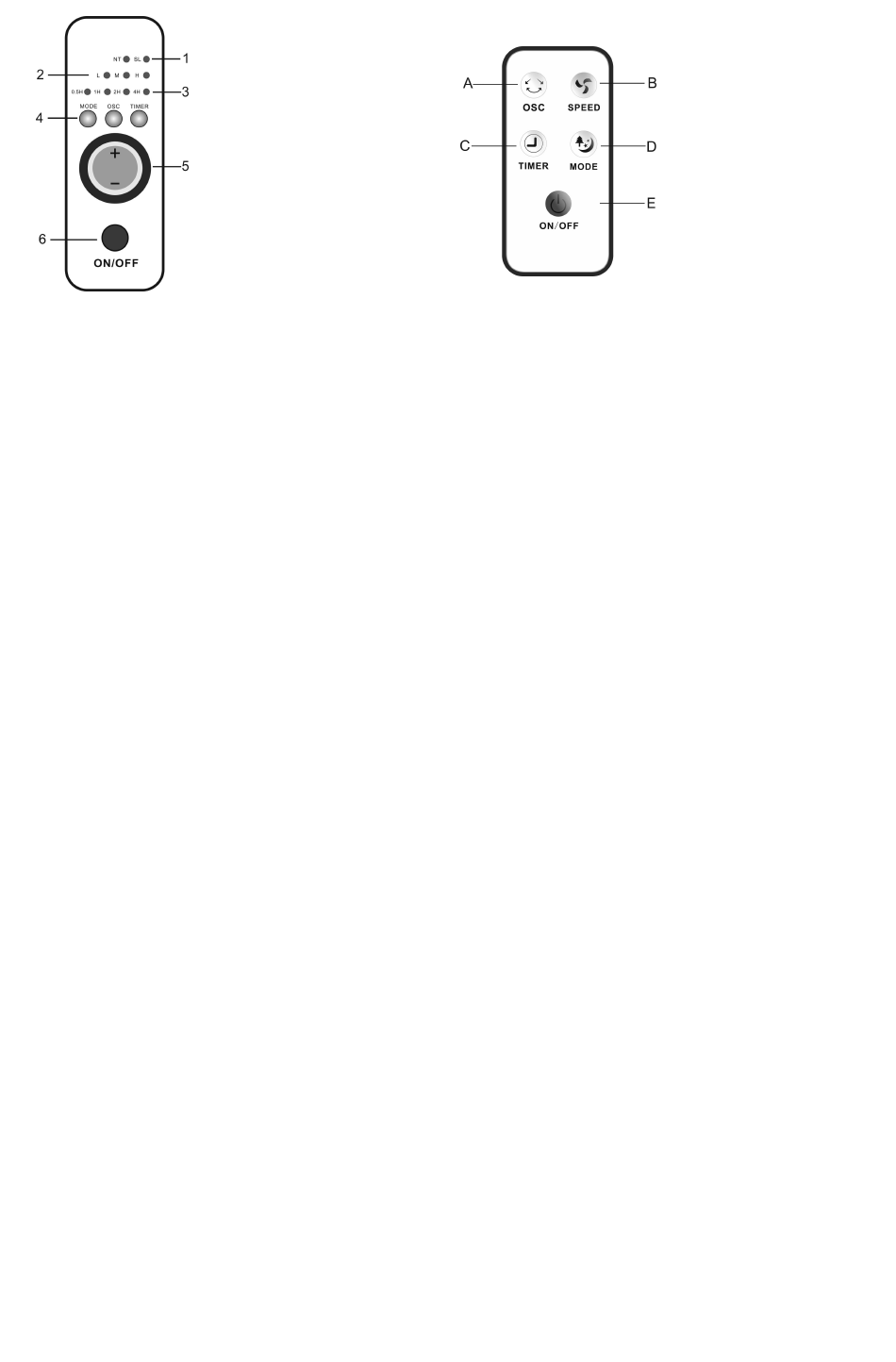

1. Mode : Nature /
Sleep/Normal
2. Speed:
Low/Mid/High
3. Speed:
Low/Mid/High
4. Button
5. Speed select
6. Power
A. Oscillation
B. Speed
C. Timer
D. Mode
E. Power
