Summary of Contents for SereneLife SLBSKBG45

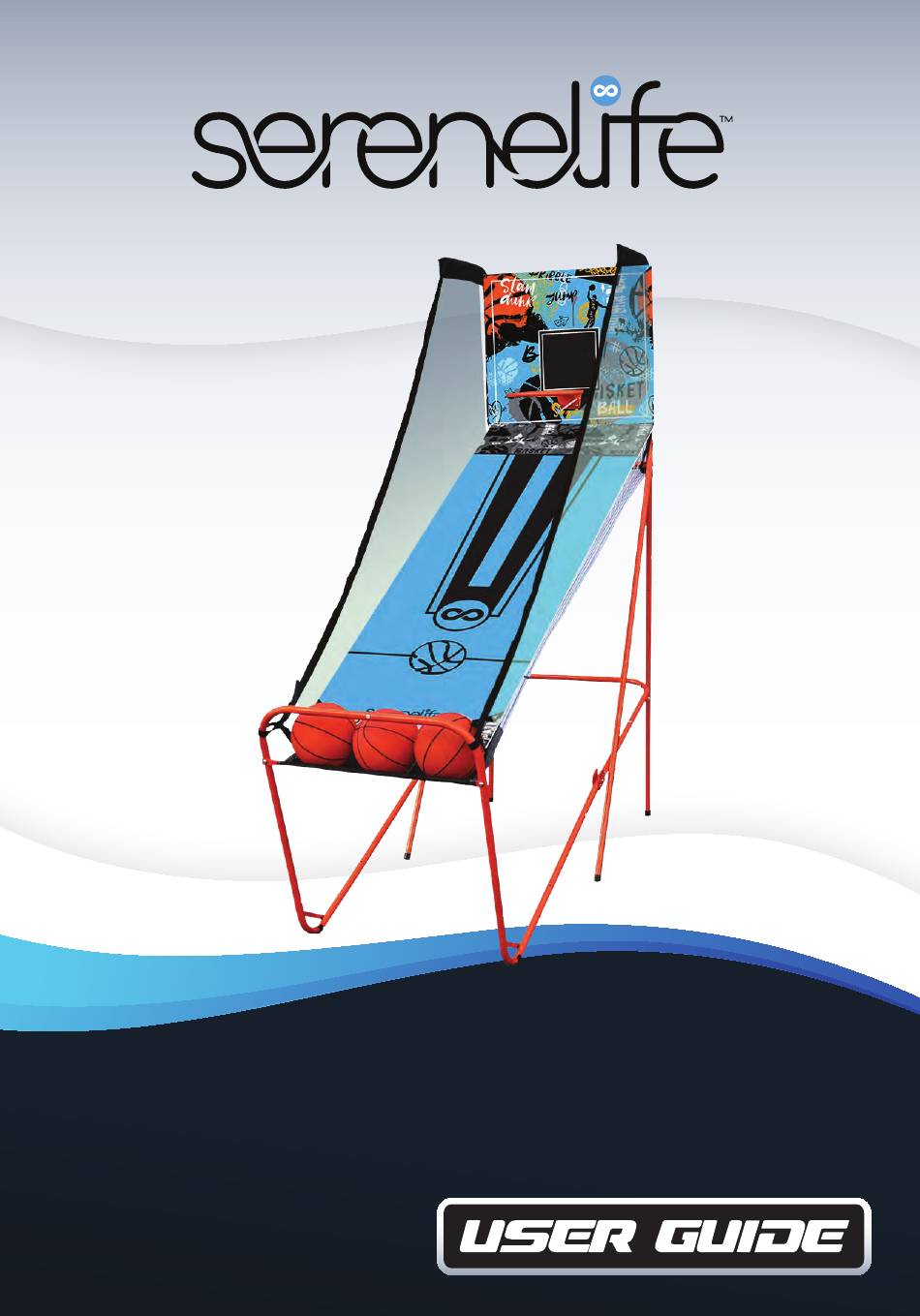

- Page 1 Single Shot Basketball Arcade Game Indoor/Outdoor One-Player Basketball System with One Audio Option, One Game and Large LED Scoreboard...
-
Page 2: Parts List
IMPORTANT! PLEASE READ THESE ASSEMBLY INSTRUCTIONS IN ENTIRETY BEFORE ASSEMBLING YOUR PRODUCT. CHOKE HAZARD: THIS TABLE CONTAINS SMALL BALLS AND PARTS NOT SUITABLE FOR CHILDREN UNDER 3 YEARS OF AGE. PARTS LIST Board Tube Φ22x686mm Left Tube Φ22x883mm Right Tube Φ22x883mm Board L Tube Φ22x584x432mm Support Tube Φ22x832mm Mounting Tube Φ22x838mm Left L Tube Φ22x756x349mm... -
Page 3: Before Assembly
PARTS LIST M6 x 42mm Bolt M6 x 48mm Bolt M6 x 35mm Bolt M6 Nut 3 x 26mm Screw Wrench Ball Ramp with Side Netting PRE INSTALLED PARTS Spring Lock Plastic Pole Insert Lock Pin ASSEMBLY INSTRUCTIONS: 1. Find a clean, level place to begin the assembly of your Basketball Game. We recommend that two adults work together to assemble this basketball game. -
Page 4: Parts Identifier
PARTS IDENTIFIER FIG. 2 FIG. 1 Spring Lock Spring Lock FIG. 1 & 2 3. Attach the Board Tubes (#2) to the Left Tubes (#3) and Right Tubes (#4) using spring lock as shown in FIG. 1. 4. Attach the Support Tubes (#7) to the Mounting Tubes (#8) using spring lock as shown in FIG.2. - Page 5 FIG. 4C FIG. 4 FIG. 4B FIG. 4 FIG. 4A 6. Attach the Left and Right L Tubes (#5 and #6) to Left and Right Tubes (#3 and #4) using Bolts(#26), Washers (#22) and Nuts (#28), and then attach the Left and Right L Tube (#5 and #6) to the Mounting Tube (#8) using Bolts (#26), Washers (#22) and Nuts(#28) as shown in FIG.
- Page 6 FIG. 5 FIG. 5A 28 22 FIG. 5B FIG. 5 8. Attach the Horizontal Tube (#12) to the Board Tube (#2) using Bolts (#24), Washers (#22) and Nuts (#28) as shown in FIG. 5A. And then insert the Board L Tubes (#1) to the Board Tube (#2) as shown in FIG.5.
- Page 7 FIG. 6 Short Long Spring Lock FIG. 6 10. Attach the Ramp L Tubes (#10) to the Ramp Tubes (#9) using spring lock as shown in FIG. 6. www.SereneLifeHome.com...
- Page 8 FIG. 7 T IM FIG. 7 11. Tear o the paper in front of Electronic Scorer (#14) and stick it to the Backboard (#21), then using four Screws (#29) as shown in FIG. 7. FIG. 8 FIG. 8A FIG. 8 12.
- Page 9 FIG.9 FIG.9A FIG.9B FIG.9C FIG.9E FIG.9D Spring Lock FIG. 9 13. Slide elastic straps and sleeve of Ball Ramp with Side Netting (#31) onto Board Tubes as shown in FIG. 9A & 9B. 14. Slide the Ramp U Tube (#11) into the sleeve of Ball Ramp with Side Netting (#31) as shown in FIG.
- Page 10 FIG. 10 FIG. 10A Back View. Ramp Tab FIG. 10B FIG. 10C FIG. 10 17. With the help of another adult, attach the Backboard (#21) to the Board Tubes (#1) using Bolts (#25), Washers (#22), Nuts (#28) and End Cap (#20) as shown in FIG.10A.
- Page 11 FIG. 11 Lock Pin IMPORTANT! MAKE SURE TO USE THE LOCK PIN #A4 WHEN FOLDED. FIG. 11 19. Folding position when not in use the basketball game and insert the Lock Pin (#A4) as shown in FIG. 11. Note: The lock pin (#A4) needs to be removed from its original position when the game is being used before insertion to the new position when folded.
- Page 12 ELECTRONIC SCORER OPERATION Installing Batteries Battery Box: Unscrew bolt using a screwdriver and open the battery box. Insert 4 “AA” batteries ( not included) in the order of polarity as shown on the inside cover. Then close the cover using a screwdriver. Turn the power ON using the ON/OFF switch.
-
Page 13: How To Play
HOW TO PLAY 1. Sound ON/OFF: Use this switch while the game is on to turn the sound OFF and ON. 2. While game is in Sleep Mode, if a basketball is scored, the game will turn back on and the score board will begin the 5 sec. countdown. 3. - Page 14 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
