TETRA Release 2
Digital Standard for
®
R&S
Signal Generators
Operating Manual
(;×8[<)
1173.0843.12 ─ 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TETRA Release 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Rohde & Schwarz TETRA Release 2

Summary of Contents for Rohde & Schwarz TETRA Release 2

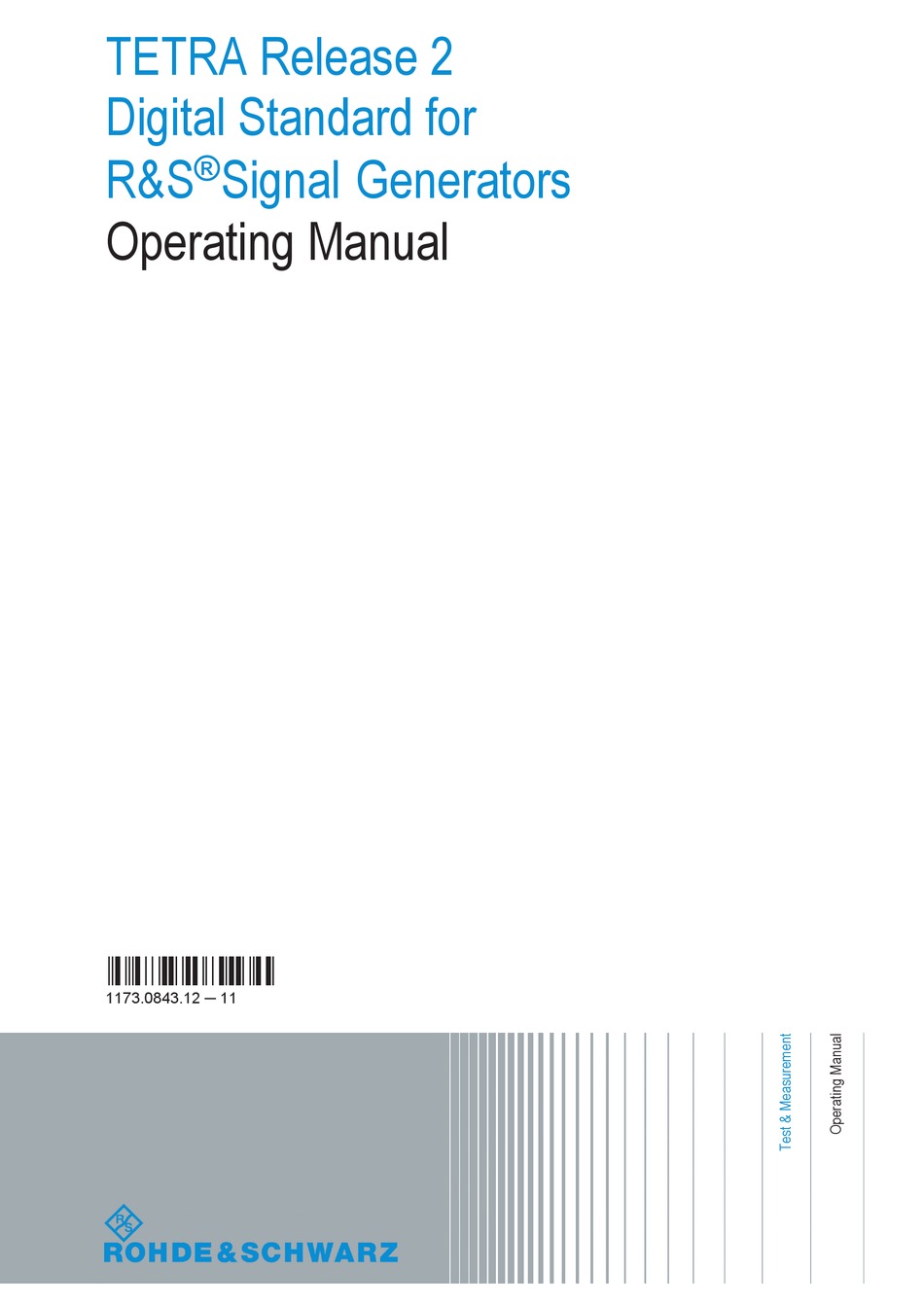

  • Page 1 TETRA Release 2 Digital Standard for ® R&S Signal Generators Operating Manual (;×8[<) 1173.0843.12 ─ 11...
  • Page 2 This document describes the following software options: ● R&S ® SMBV-K68 1415.8490.xx ● ® R&S SMU-K68 1408.8217.02 ● ® R&S AMU-K68 1403.0601.02 ● ® R&S SMATE-K68 1404.8664.02 ● ® R&S SMJ-K68 1409.3102.02 This manual version corresponds to firmware version: ® FW 3.20.281.xx and later of the R&S SMBV100A ®...

  • Page 3: Table Of Contents

    TETRA Release 2 Contents Contents 1 Preface....................5 Documentation Overview..................... 5 Conventions Used in the Documentation..............6 1.2.1 Typographical Conventions.....................6 1.2.2 Notes on Screenshots.....................7 1.2.3 Naming of Software Options................... 7 2 Introduction.................... 8 3 User Interface..................9 General Settings......................10 Power Ramp Control....................14 BSCH / BNCH/T......................
  • Page 4 TETRA Release 2 Contents Trigger/Marker/Clock Settings................... 64 4.5.1 Clock Settings....................... 64 4.5.2 Trigger Settings......................66 4.5.3 Marker Settings......................71 Filter/Clipping Settings....................74 List of Commands................77 Index......................80 Operating Manual 1173.0843.12 ─ 11...

  • Page 5: Preface

    TETRA Release 2 Preface Documentation Overview 1 Preface 1.1 Documentation Overview The user documentation for the R&S Signal Generator consists of the following parts: ● Online Help system on the instrument, ● "Quick Start Guide" printed manual, ● Documentation CD-ROM with: –...

  • Page 6: Conventions Used In The Documentation

    TETRA Release 2 Preface Conventions Used in the Documentation Service Manual The Service Manual is available in PDF format - in printable form - on the Documenta- tion CD-ROM delivered with the instrument. It describes how to check compliance with rated specifications, on instrument function, repair, troubleshooting and fault elimina- tion.

  • Page 7: Notes On Screenshots

    TETRA Release 2 Preface Conventions Used in the Documentation Convention Description File names, commands, File names, commands, coding samples and screen output are distin- program code guished by their font. Input Input to be entered by the user is displayed in italics.

  • Page 8: Introduction

    TETRA Release 2 Introduction 2 Introduction The R&S SMx/AMU-K68 enables you to to generate signals in accordance with the standard Terrestrial Trunked Radio Release 2 (TETRA2). To playback a signal from a waveform file created by the simulation software R&S WinIQSIM2, the corresponding R&S WinIQSIM2 digital standard option must be installed.

  • Page 9: User Interface

    TETRA Release 2 User Interface 3 User Interface To access the menu for setting the TETRA digital standard, select "Baseband Block > Config > TETRA" or press the MENU key and select "Baseband > TETRA". The menu is split into three sections for configuring the standard. The choice of trans- mission direction determines which displays and parameters are made available in the middle section.

  • Page 10: General Settings

    TETRA Release 2 User Interface General Settings 3.1 General Settings State Activates the standard and deactivates all the other digital standards and digital modu- lation modes in the same path. Remote command: on page 44 [:SOURce<hw>]:BB:TETRa:STATe Set to Default Calls the default settings. The values of the main parameters are listed in the following table.
  • Page 11 TETRA Release 2 User Interface General Settings "Save Set- Opens the "Save Settings" window for saving the current TETRA sig- tings" nal configuration. The name of the file is specified in the "File name" entry field. The file is saved by pressing the "Save" button.
  • Page 12 TETRA Release 2 User Interface General Settings Generate Waveform File Opens the submenu for storing the current TETRA signal as ARB signal in a waveform file. This file can be loaded in the "ARB" dialog and processed as multicarrier or multi- segment signal.
  • Page 13 TETRA Release 2 User Interface General Settings "T3" Test sugnal T3 (unmodulated interferer) The T3 test signal is an unmodulated continuous sinusoidal out-of- band interfering signal. Remote command: on page 44 [:SOURce<hw>]:BB:TETRa:TMODe Link Direction Selects the transmission direction. This parameter determines the available "Channel Types".

  • Page 14: Power Ramp Control

    TETRA Release 2 User Interface Power Ramp Control Power Ramp/Slot Attenuations Calls the "Power Ramp Control" dialog. This dialog is used to set the power ramping parameters and for setting values for the level attenuation in dB (see chapter 3.2, "Power Ramp...
  • Page 15 TETRA Release 2 User Interface Power Ramp Control ues for level attenuation. These values can be selected from the frame editor for the slot currently being edited. "Slot Level Full" setting in the frame editor corresponds to 0 dB attenuation.

  • Page 16: Bsch / Bnch/T

    TETRA Release 2 User Interface BSCH / BNCH/T Rise Offset Sets the offset in the rising edge of the envelope at the start of a frame. A positive value gives rise to a delay and a negative value causes an advance. The setting is expressed in symbols.

  • Page 17: Tetra Frequency

    TETRA Release 2 User Interface BSCH / BNCH/T The "Contents Setting" section is enabled in downlink direction only. In the downlink mode, a synchronization burst is used to control the MS messages. In this burst, proto- col elements are transmitted in BSCH and BNCH. The parameters are used to form the commands for the mobile station.
  • Page 18 TETRA Release 2 User Interface BSCH / BNCH/T Main Carrier Number The "Main Carrier Number" divides the TETRA band into carriers with a spacing as set with the parameter "Carrier Bandwidth". The range is 0 to 4095 (12 bits). The Main Carrier Frequency is calculated as follow: Main Carrier Frequency, kHz = "Main Carrier Number"...

  • Page 19: Contents Settings

    TETRA Release 2 User Interface BSCH / BNCH/T Table 3-1: Calculation of Coded RF Frequency "Link Direc- "Reverse Opera- "Coded RF Frequency", MHz tion" tion" Downlink Downlink Coded RF Frequency = "Frequency Band" + ("Main Car- rier Number"* "Carrier Bandwidth") + "Offset"...
  • Page 20 TETRA Release 2 User Interface BSCH / BNCH/T Sharing Mode The sharing mode field indicates whether the BS is using continuous transmission, car- rier sharing, MCCH sharing or traffic carrier sharing. Remote command: on page 62 [:SOURce<hw>]:BB:TETRa:BBNCht:SMODe U-plane DTX The "U-plane DTX" element indicates whether or not the BS supports discontinuous traffic transmission by the MS.
  • Page 21 TETRA Release 2 User Interface BSCH / BNCH/T "Transmission The mobile station is requested to transmit. ON" The mobile station is requested to recept. "Reception ON" Remote command: on page 63 [:SOURce<hw>]:BB:TETRa:BBNCht:TXON T1_T4_Burst_Type Sets the value of the special parameter T1_T4_Burst_Type, i.e. determines the logical channel the BS is expecting to receive.

  • Page 22: Scrambling

    TETRA Release 2 User Interface BSCH / BNCH/T If enabled, the mobile station should set up a loop and return the data when requested by the Tx_burst_type. Remote command: on page 59 [:SOURce<hw>]:BB:TETRa:BBNCht:LBACk 3.3.3 Scrambling The "Srcambling" section comprises of the parameters necessary to configure the scrambling sequence.

  • Page 23: Burst Editor

    TETRA Release 2 User Interface Burst Editor table 3-2 for information on how the scrambling code is calculated. Remote command: on page 60 [:SOURce<hw>]:BB:TETRa:BBNCht:MCCode 3.4 Burst Editor ► To access the frame editor, select a slot from the graphical display in the TETRA main dialog.
  • Page 24 TETRA Release 2 User Interface Burst Editor T2 Burst Type Selects the burst type for "Test Mode T2". Remote command: [:SOURce<hw>]:BB:TETRa:SCONfiguration:SLOT<st>:LDIRection<ch>: on page 48 TBTYpe (Sub-)Slot Level Sets the level for the selected (sub-)slot. Sub-slots are used by control bursts only.
  • Page 25 TETRA Release 2 User Interface Burst Editor ● "PNxx" An internally generated pseudo-random noise sequence. ● "Pattern" An internally generated sequence according to a bit pattern. Use the "Pattern" box to define the bit pattern. ● "Data List/Select DList" A binary data from a data list, internally or externally generated.
  • Page 26 TETRA Release 2 User Interface Burst Editor A user-defined training sequence can be created in the field "TSC User Defined". Remote command: [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>: on page 55 LDIRection<ch>:TSOurce TSC User Defined Enters a user-defined TSC. The length of the training sequences depends on the burst type.

  • Page 27: Filter / Clipping Settings

    TETRA Release 2 User Interface Filter / Clipping Settings "Field2" Sets the value for the information element Fieled 2. Remote command: [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>: on page 49 LDIRection<ch>:APF2 3.5 Filter / Clipping Settings ► To access this dialog, select "Main dialog > Filter/Clipping/ARB Settings".

  • Page 28: Modulation Settings

    TETRA Release 2 User Interface Filter / Clipping Settings The filter parameter offered ("Roll Off Factor" or "BxT") depends on the currently selected filter type. This parameter is preset to the default for each of the predefined filters. Remote command: on page 75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:COSine...

  • Page 29: Trigger/Marker/Clock Settings

    TETRA Release 2 User Interface Trigger/Marker/Clock Settings Baseband clipping is a very simple and effective way of reducing the crest factor of the signal. Since clipping is done prior to filtering, the procedure does not influence the spectrum. The EVM however increases.

  • Page 30: Trigger Settings

    TETRA Release 2 User Interface Trigger/Marker/Clock Settings The "Marker Delay" section is where a marker signal delay can be defined, either with- out restriction or restricted to the dynamic section, i.e., the section in which it is possi- ble to make settings without restarting signal and marker generation.
  • Page 31 TETRA Release 2 User Interface Trigger/Marker/Clock Settings Trigger Mode Selects trigger mode, i.e. determines the effect of a trigger event on the signal genera- tion. ● "Auto" The signal is generated continuously. ● "Retrigger" The signal is generated continuously. A trigger event (internal or external) causes a restart.
  • Page 32 TETRA Release 2 User Interface Trigger/Marker/Clock Settings The signal is not generated and the instrument waits for a trigger event. Remote command: on page 69 [:SOURce<hw>]:BB:TETRa:TRIGger:RMODe For trigger modes "Armed Auto" and "Armed Retrigger", stops the signal generation until subsequent trigger event occurs.
  • Page 33 TETRA Release 2 User Interface Trigger/Marker/Clock Settings Table 3-3: Typical Applications System Trigger Application "Sync. Output to External Trig- ger" Common External Trigger event All instruments are synchronous for the master and the slave to the external trigger event instruments...
  • Page 34 TETRA Release 2 User Interface Trigger/Marker/Clock Settings "Off" The signal output begins after elapsing of the processing time and starts with sample 0, i.e. the complete signal is outputted. This mode is recommended for triggering of short signal sequences with signal duration comparable with the processing time of the instrument.

  • Page 35: Marker Mode Settings

    TETRA Release 2 User Interface Trigger/Marker/Clock Settings 3.6.2 Marker Mode Settings The marker output signal for synchronizing external instruments is configured in the "Marker Settings" section "Marker Mode". The R&S SMBV supports only two markers. Marker Mode Selects a marker signal for the associated "MARKER" output.

  • Page 36: Marker Delay Settings

    TETRA Release 2 User Interface Trigger/Marker/Clock Settings 3.6.3 Marker Delay Settings The delay of the signals on the MARKER outputs is set in the"Marker Delay" section. The R&S SMBV supports only two markers. Marker x Delay Enters the delay between the marker signal at the marker outputs and the start of the frame or slot.
  • Page 37 TETRA Release 2 User Interface Trigger/Marker/Clock Settings "Sync. Master" The instrument provides all connected instrument with its synchroni- sation (including the trigger signal) and reference clock signal. The instrument receives the synchronisation and reference clock sig- "Sync. Slave" nal from another instrument working in a master mode.

  • Page 38: Global Settings

    TETRA Release 2 User Interface Global Settings Measured External Clock Provided for permanent monitoring of the enabled and externally supplied clock signal. Remote command: CLOCk:INPut:FREQuency? 3.7 Global Settings The buttons in this section lead to dialogs for general trigger, clock and mapping set- tings.

  • Page 39: Remote Control Commands

    TETRA Release 2 Remote Control Commands 4 Remote Control Commands The following commands are required to perform signal generation with the TETRA options in a remote environment. We assume that the R&S Signal Generator has already been set up for remote operation in a network as described in the R&S Signal Generator documentation.

  • Page 40: Primary Settings

    TETRA Release 2 Remote Control Commands Primary Settings ● /usb/ - for selecting the memory stick which is inserted at the USB interface of a Linux instrument. Tasks (in manual or remote operation) that are also performed in the base unit in the same way are not described here.

  • Page 41: [:Source]:Bb:tetra:dbtype

    TETRA Release 2 Remote Control Commands Primary Settings Manual operation: "Channel Type" on page 13 [:SOURce<hw>]:BB:TETRa:DBTYpe <DBType> (in Downlink "Link Direction" and for "Test Model" set to T2 or User Defined) Determines whether a discontinuous or continuous downlink burst type is used.

  • Page 42: [:Source]:Bb:tetra:preset

    TETRA Release 2 Remote Control Commands Primary Settings Example: BB:TETR:MTYP QAM Manual operation: "Modulation Type" on page 13 [:SOURce<hw>]:BB:TETRa:PRESet Calls the default settings. Example: BB:TETR:PRES Usage: Event Manual operation: "Set to Default" on page 10 [:SOURce<hw>]:BB:TETRa:SETTing:CATalog? Reads out the files with TETRA settings in the default directory. The default directory is set using command MMEM:CDIRectory.
  • Page 43 TETRA Release 2 Remote Control Commands Primary Settings Setting parameters: <Filename> <file name> Example: MMEM:CDIR '<root>tetra' sets the default directory to <root>tetra. BB:TETR:SETT:CAT? reads out all the files with TETRA settings in the default direc- tory. Response: 'tetra_t1_dl' the file tetra_t1_dl is available.
  • Page 44 TETRA Release 2 Remote Control Commands Primary Settings [:SOURce<hw>]:BB:TETRa:SLENgth <SLength> Selects the sequence length of the arbitrary waveform file in the number of multi- frames. One multiframe is the minimum sequence length for a T1 signal. Parameters: <SLength> integer Range:...

  • Page 45: Power Ramp Settings

    TETRA Release 2 Remote Control Commands Power Ramp Settings [:SOURce<hw>]:BB:TETRa:WAVeform:CREate <Filename> Opens the submenu for storing the current TETRA signal as ARB signal in a waveform file. This file can be loaded in the "ARB" dialog and processed as multicarrier or multi- segment signal.
  • Page 46 TETRA Release 2 Remote Control Commands Power Ramp Settings Parameters: <RFunction> LINear | COSine LINear The transmitted power rises and falls linear fashion. COSine The transmitted power rises and falls with a cosine-shaped edge. This gives rise to a more favorable spectrum than the "Linear"...

  • Page 47: Slot Configuration Settings

    TETRA Release 2 Remote Control Commands Slot Configuration Settings The frame editor can be used to set the level attenuation for the four slots to one of these predefined values independently of one another. The entered value determines the slot output power (slot power = RF power - attenua- tion).
  • Page 48 TETRA Release 2 Remote Control Commands Slot Configuration Settings [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>: ......................... 54 SLEVel [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>: ........................ 54 SSLevel [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>: ......................55 TPATtern [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>: ....................... 55 TSOurce [:SOURce<hw>]:BB:TETRa:SCONfiguration:SLOT<st>:LDIRection<ch>:TBTYpe <TbType> Selects the burst type for "Test Mode T2". Parameters: <TbType> NCDB | SCDB | NDDB | SDDB | ND4 | ND16 | ND64 | NUB |...
  • Page 49 TETRA Release 2 Remote Control Commands Slot Configuration Settings Parameters: <AMode> AAPDu | RELement AAPDu The value of the AACH-Q Mode element is set to 0, i.e. contents of Access-Assign PDU are present. The Access-Assign PDU is used to convey information about the downlink slot in which it appears and also the access rights for the corresponding (same-numbered) uplink slot.
  • Page 50 TETRA Release 2 Remote Control Commands Slot Configuration Settings [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>: LDIRection<ch>:BSATtenuation <BsAttenuation> Selects the level attenuation for the "Slot Level" Attenuated setting. Parameters: <BsAttenuation> A1 | A2 | A3 | A4 *RST: Example: BB:TETR:SCON:TMOD1:SLOT3:LDIR1:BSAT A1 Manual operation: "(Sub-)Slot Attenuation" on page 24 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:...
  • Page 51 TETRA Release 2 Remote Control Commands Slot Configuration Settings Parameters: <Data> PATTern | PN11 | PN15 | PN16 | PN20 | PN21 | PN23 | DLISt | ALL0 | ALL1 | PN09 ALL0|ALL1| Internal 0 or 1 data is used.
  • Page 52 TETRA Release 2 Remote Control Commands Slot Configuration Settings Parameters: <DSelection> <data list name> Example: BB:TETR:SCON:TMOD1:SLOT2:LDIR1:DATA DLIS BB:TETR:SCON:TMOD1:SLOT2:LDIR1:DATA:DSEL 'dl_tetra_t2_ul' Manual operation: "Data List Management" on page 11 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>: LDIRection<ch>:LCTYpe <LcType> Selects the logical channel type. Tha available channels depend on the selected Test Mode and Link Direction.
  • Page 53 TETRA Release 2 Remote Control Commands Slot Configuration Settings Parameters: <SData> PATTern | PN11 | PN15 | PN16 | PN20 | PN21 | PN23 | DLISt | ALL0 | ALL1 | PN09 ALL0|ALL1| Internal 0 or 1 data is used.
  • Page 54 TETRA Release 2 Remote Control Commands Slot Configuration Settings Parameters: <SdSelection> <data list name> Example: BB:TETR:SCON:TMOD4:SLOT2:LDIR2:SDAT DLIS BB:TETR:SCON:TMOD4:SLOT2:LDIR2:SDAT:SDS 'dl_tetra_t4_ul_2' Manual operation: "Data Source" on page 24 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>: LDIRection<ch>:SLEVel <SLevel> Sets the level for the selected slot. Parameters: <SLevel> OFF | ATTenuated | FULL Attenuation is maximum.

  • Page 55: Bsch / Bnch/T Settings

    TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings Example: BB:TETR:LDIR UP BB:TETR:CTYP CH11 Selects a control burst. BB:TETR:SCON:TMOD1:SLOT3:LDIR2:SLEV FULL BB:TETR:SCON:TMOD1:SLOT3:LDIR2:SSLevel FULL Sets the level of the first and second sub-slot. Manual operation: "(Sub-)Slot Level" on page 24 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>: LDIRection<ch>:TPATtern <TPattern>...
  • Page 56 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings ...............59 [:SOURce<hw>]:BB:TETRa:BBNCht:FBANd .............. 59 [:SOURce<hw>]:BB:TETRa:BBNCht:FEEXtension ...............59 [:SOURce<hw>]:BB:TETRa:BBNCht:LBACk ..............59 [:SOURce<hw>]:BB:TETRa:BBNCht:LENTry ..............60 [:SOURce<hw>]:BB:TETRa:BBNCht:MCCode ..............60 [:SOURce<hw>]:BB:TETRa:BBNCht:MCNumber ..............60 [:SOURce<hw>]:BB:TETRa:BBNCht:MNCode ..............61 [:SOURce<hw>]:BB:TETRa:BBNCht:MTMCell ..............61 [:SOURce<hw>]:BB:TETRa:BBNCht:OFFSet ..............61 [:SOURce<hw>]:BB:TETRa:BBNCht:ROPeration ..............61 [:SOURce<hw>]:BB:TETRa:BBNCht:SCODe ..............62 [:SOURce<hw>]:BB:TETRa:BBNCht:SMODe...
  • Page 57 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings [:SOURce<hw>]:BB:TETRa:BBNCht:CBANdwidth <CBandwidth> Selects the carrier bandwidth, i.e. determines the carrier spacing. The default value for all standard test modes is 25kHz; carrier spacing of 50, 100 and 150 kHz is enabled for "Test Mode" set to User Defined or T4.
  • Page 58 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings Manual operation: "Cell service level" on page 20 [:SOURce<hw>]:BB:TETRa:BBNCht:DNBBroadcast <DnbBroadcast> Enables/disables support of the D-NWRK-BROADCAST PDU. Parameters: <DnbBroadcast> 0 | 1 | OFF | ON *RST: Example: BB:TETR:BBNC:DNBB ON Manual operation: "D-NWRK-BROADCAST broadcast"...
  • Page 59 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings [:SOURce<hw>]:BB:TETRa:BBNCht:FBANd <FBand> Sets the Frequency Band. This setting has an effect on the calculation of the transmission frequency. The Fre- quency Band Information is inserted only in the TETRA BSCH protocol channel.
  • Page 60 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings Example: BB:TETR:BBNC:LENT ON Manual operation: "Late Entry" on page 21 [:SOURce<hw>]:BB:TETRa:BBNCht:MCCode <Mccode> Sets the Mobile Country Code. The MCC is the number of the country in which the unit is operated.
  • Page 61 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings [:SOURce<hw>]:BB:TETRa:BBNCht:MTMCell <MtmCell> Sets the protocol information on the maximum transmission power for the mobile sta- tion. Allowed are values from 15 dBm to 45 dBm in 5 dB steps. The MS_TXPWR_MAX_CELL paramer is used for cell selection and reselection, and for power adjustments.
  • Page 62 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings Parameters: <SCode> S0 | S1 | S2 | S3 | S4 | S5 | S6 | S7 *RST: Example: BB:TETR:BBNC:SCOD S3 Manual operation: "System Code" on page 19 [:SOURce<hw>]:BB:TETRa:BBNCht:SMODe <SMode>...
  • Page 63 TETRA Release 2 Remote Control Commands BSCH / BNCH/T Settings Manual operation: "TS reserved frames" on page 19 [:SOURce<hw>]:BB:TETRa:BBNCht:TTBType <TtbType> Sets the value of the special parameter T1_T4_Burst_Type, i.e. determines the logical channel the BS is expecting to receive. Parameters: <TtbType>...

  • Page 64: Trigger/Marker/Clock Settings

    TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings 4.5 Trigger/Marker/Clock Settings This section lists the relevant remote control commands. The trigger, clock, and marker delay functions are available for R&S SMx and R&S AMU instruments only. 4.5.1 Clock Settings ................ 64 [:SOURce<hw>]:BB:TETRa:CLOCk:MODE...
  • Page 65 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Manual operation: "Clock Multiplier" on page 37 [:SOURce<hw>]:BB:TETRa:CLOCk:SOURce <Source> Selects the clock source. For two-path instruments, selecting EXTernal is only possible for path A, since the external clock source is permanently allocated to path A. Selection AINternal is only possible for path B.

  • Page 66: Trigger Settings

    TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Note: If several instruments are connected, the connecting cables from the master instrument to the slave one and between each two consecutive slave instruments must have the same length and type. Avoid unnecessary cable length and branching points.
  • Page 67 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Example: BB:TETR:TRIG:ARM:EXEC Usage: Event Manual operation: "Arm " on page 32 [:SOURce<hw>]:BB:TETRa:TRIGger:EXECute Executes trigger manually. A manual trigger can be executed only when an internal trigger source and a trigger mode other than "Auto" have been selected.
  • Page 68 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Parameters: <Inhibit> integer Range: 0 to 67108863 *RST: Example: BB:TETR:TRIG:SOUR OBAS BB:TETR:TRIG:OBAS:INH 50 Manual operation: "Trigger Inhibit" on page 34 [:SOURce<hw>]:BB:TETRa:TRIGger:OUTPut:DELay:FIXed <Fixed> Restricts the marker delay setting range to the dynamic range. In this range the delay can be set without restarting the marker and signal.
  • Page 69 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Example: BB:TETR:TRIG:OUTP:DEL:FIX ON BB:TETR:TRIG:OUTP:DEL:MAX? Response: 2000 BB:TETR:TRIG:OUTP:DEL:MIN? Usage: Query only Manual operation: "Current Range without Recalculation" on page 36 [:SOURce<hw>]:BB:TETRa:TRIGger:RMODe <RMode> Queries the status of signal generation for all trigger modes. Parameters: <RMode>...
  • Page 70 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings [:SOURce<hw>]:BB:TETRa:TRIGger:SOURce <Source> Selects the trigger source. Parameters: <Source> INTernal|OBASeband|BEXTernal|EXTernal INTernal manual trigger or *TRG. EXTernal|BEXTernal trigger signal on the TRIGGER 1/2 connector. OBASeband trigger signal from the other path *RST: INTernal Example: SOURce1:BB:TETRa:TRIGger:SOURce EXTernal sets external triggering via the TRIGGER 1 connector.

  • Page 71: Marker Settings

    TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings [:SOURce<hw>]:BB:TETRa:TRIGger:SEQuence <Sequence> Selects trigger mode. The trigger mode determines the effect of a trigger on the signal generation. Parameters: <Sequence> AUTO | RETRigger | AAUTo | ARETrigger | SINGle AUTO The signal is generated continuously.
  • Page 72 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Parameters: <Mode> RESTart | SSTart | FSTart | MFSTart | HFSTart | PULSe | PATTern | RATio | TRIGger RESTart A marker signal is generated at the start of each ARB sequence.
  • Page 73 TETRA Release 2 Remote Control Commands Trigger/Marker/Clock Settings Example: BB:TETR:TRIG:OUTP2:MODE RAT BB:TETR:TRIG:OUTP2:ONT 20 BB:TETR:TRIG:OUTP2:OFF 20 Manual operation: "Marker Mode" on page 35 [:SOURce<hw>]:BB:TETRa:TRIGger:OUTPut<ch>:PATTern <Pattern> Defines the bit pattern used to generate the marker signal ([:SOURce<hw>]:BB: on page 71). 0 is marker off, 1 is marker on.

  • Page 74: Filter/Clipping Settings

    TETRA Release 2 Remote Control Commands Filter/Clipping Settings 4.6 Filter/Clipping Settings ...............74 [:SOURce<hw>]:BB:TETRa:CLIPping:LEVel ..............74 [:SOURce<hw>]:BB:TETRa:CLIPping:MODE ..............74 [:SOURce<hw>]:BB:TETRa:CLIPping:STATe ............... 75 [:SOURce<hw>]:BB:TETRa:FILTer:ILENgth ............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:COSine ............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:GAUSs ............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:LPASs ..........75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:LPASSEVM ............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:PGAuss ............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:RCOSine ............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:SPHase .............75 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:APCO25 ..........76 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:COSine:COFS...
  • Page 75 TETRA Release 2 Remote Control Commands Filter/Clipping Settings Manual operation: "Clipping State" on page 28 [:SOURce<hw>]:BB:TETRa:FILTer:ILENgth <ILength> Sets the impulse length (number of filter tabs). Parameters: <ILength> integer Range: 2 to 100 *RST: [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:COSine <Cosine> [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:GAUSs <Gauss> [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:LPASs <LPass> [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:LPASSEVM <LPassEvm>...
  • Page 76 TETRA Release 2 Remote Control Commands Filter/Clipping Settings <RCosine> float Range: 0 to 1 Increment: 0.01 *RST: 0.35 <SPhase> float Range: 0.15 to 2.5 Increment: 0.01 *RST: Example: BB:TETR:FILT:TYPE APCO25 BB:TETR:FILT:PAR:APCO25 0.1 Manual operation: "Roll Off Factor or BxT" on page 27 [:SOURce<hw>]:BB:TETRa:FILTer:PARameter:COSine:COFS <Cofs>...

  • Page 77: List Of Commands

    TETRA Release 2 List of Commands List of Commands [:SOURce<hw>]:BB:TETRa:BBNCht:APARameter..................56 [:SOURce<hw>]:BB:TETRa:BBNCht:BCCode....................56 [:SOURce<hw>]:BB:TETRa:BBNCht:CBANdwidth..................57 [:SOURce<hw>]:BB:TETRa:BBNCht:CRFRequency?..................57 [:SOURce<hw>]:BB:TETRa:BBNCht:CSLevel....................57 [:SOURce<hw>]:BB:TETRa:BBNCht:DNBBroadcast..................58 [:SOURce<hw>]:BB:TETRa:BBNCht:DNBenquiry..................58 [:SOURce<hw>]:BB:TETRa:BBNCht:DSPacing....................58 [:SOURce<hw>]:BB:TETRa:BBNCht:ECORrection..................58 [:SOURce<hw>]:BB:TETRa:BBNCht:FBANd....................59 [:SOURce<hw>]:BB:TETRa:BBNCht:FEEXtension..................59 [:SOURce<hw>]:BB:TETRa:BBNCht:LBACk....................59 [:SOURce<hw>]:BB:TETRa:BBNCht:LENTry....................59 [:SOURce<hw>]:BB:TETRa:BBNCht:MCCode....................60 [:SOURce<hw>]:BB:TETRa:BBNCht:MCNumber................... 60 [:SOURce<hw>]:BB:TETRa:BBNCht:MNCode....................60 [:SOURce<hw>]:BB:TETRa:BBNCht:MTMCell....................61 [:SOURce<hw>]:BB:TETRa:BBNCht:OFFSet....................61 [:SOURce<hw>]:BB:TETRa:BBNCht:ROPeration................... 61 [:SOURce<hw>]:BB:TETRa:BBNCht:SCODe....................61 [:SOURce<hw>]:BB:TETRa:BBNCht:SMODe....................

  • Page 78: [:Source]:Bb:tetra:srate:variation

    TETRA Release 2 List of Commands [:SOURce<hw>]:BB:TETRa:LDIRection......................41 [:SOURce<hw>]:BB:TETRa:MTYPe........................41 [:SOURce<hw>]:BB:TETRa:PRAMping:FOFFset................... 45 [:SOURce<hw>]:BB:TETRa:PRAMping:RFUNction..................45 [:SOURce<hw>]:BB:TETRa:PRAMping:ROFFset................... 46 [:SOURce<hw>]:BB:TETRa:PRAMping:RTIMe....................46 [:SOURce<hw>]:BB:TETRa:PRESet....................... 42 [:SOURce<hw>]:BB:TETRa:SATTenuation<ch>.....................46 [:SOURce<hw>]:BB:TETRa:SCONfiguration:SLOT<st>:LDIRection<ch>:TBTYpe........48 [:SOURce<hw>]:BB:TETRa:SCONfiguration:SLOT<st>:UBBNch..............48 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:AMODe....48 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:APF1......49 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:APF2......49 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:APHeader....49 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:BSATtenuation..50 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:DATA....... 50 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:DATA:DPATtern..51 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:DATA:DSELection... 51 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:LCTYpe....52 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:SCRambling.....52 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:SDATa..... 52 [:SOURce<hw>]:BB:TETRa:SCONfiguration:TMODe<di>:SLOT<st>:LDIRection<ch>:SDATa:SDPattern..53...

  • Page 79: [:Source]:Bb:tetra:waveform:create

    TETRA Release 2 List of Commands [:SOURce<hw>]:BB:TETRa:TRIGger:OUTPut<ch>:PULSe:FREQuency?............. 73 [:SOURce<hw>]:BB:TETRa:TRIGger:RMODe....................69 [:SOURce<hw>]:BB:TETRa:TRIGger:SEQuence....................71 [:SOURce<hw>]:BB:TETRa:TRIGger:SLENgth....................69 [:SOURce<hw>]:BB:TETRa:TRIGger:SLUNit....................69 [:SOURce<hw>]:BB:TETRa:TRIGger:SOURce....................70 [:SOURce<hw>]:BB:TETRa:TRIGger[:EXTernal<ch>]:DELay................ 70 [:SOURce<hw>]:BB:TETRa:TRIGger[:EXTernal<ch>]:INHibit................ 70 [:SOURce<hw>]:BB:TETRa:TRIGger[:EXTernal<ch>]:SYNChronize:OUTPut..........67 [:SOURce<hw>]:BB:TETRa:WAVeform:CREate.....................45 Operating Manual 1173.0843.12 ─ 11...

  • Page 80: Index

    TETRA Release 2 Index Index AACH Configuration ............26 Generate Waveform File ........... 12 AACH-Q Mode ..............26 Global Trigger/Clock Settings ........... 38 ACCESS_PARAMETER ........... 21 Arm ...................32 Late Entry ................21 Logical Channel Type ............25 B x T .................. 27 Loop Back .................
  • Page 81 TETRA Release 2 Index Synchronization mode ............36 System Code ..............19 T1_T4_Burst_Type ............21 T2 Burst Type ..............24 Tetra cut off frequency LP EVM ........... 75 Training Sequence ............25, 26 Transmission direction ............13 Trigger Delay ..............34 Trigger Inhibit ..............34 Trigger Mode ..............
