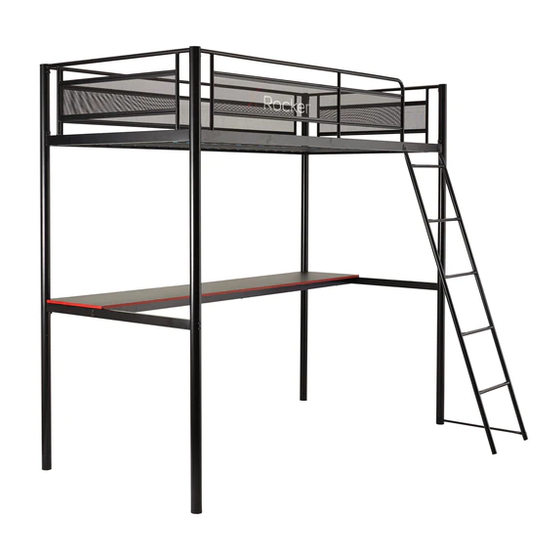

HQ HIGH SLEEPER GAMING BED WITH DESK
I MPORTANT - READ CAREFULLY - RETAIN FOR FUTURE REFERENCE
Dimensions
Width -198.2cm
Depth - 146.5cm
Height - 183cm
Please assemble in the same room where the product will be used
IMPORTANT: You must keep your original retail receipt as proof of purchase.
SXJ00-20210909
2 Person assembly
recommended
Need Help ? Contact X Rocker at :
www.xrockeruk.com/pages/support
2021108
1
Advertisement
Related Manuals for X Rocker 2021108
Summary of Contents for X Rocker 2021108
- Page 1 Depth - 146.5cm Height - 183cm Please assemble in the same room where the product will be used Need Help ? Contact X Rocker at : www.xrockeruk.com/pages/support IMPORTANT: You must keep your original retail receipt as proof of purchase. SXJ00-20210909...
- Page 2 Safety and Care Advice Important - Please read these instructions fully before starting assembly Check you have all the Assemble on a soft level Make sure you have enough components and tools listed on surface to avoid damaging the space to layout the parts before the following pages.
- Page 3 Safety and Care Advice Important - Please read these instructions fully before starting assembly WARNING THE MATTRESS SURFACE LEVEL SHOULD NOT BE ABOVE THIS LINE 160mm Important: Please note the maximun mattress height is indicated on the vertical bar on the left hand side of the opening at the top of the ladder.
- Page 4 PARTS...
- Page 5 Panels Post 01 x 1 Post 02 x 1 Post 03 x 1 Post 04 x 1 Rear Guard Rail x 1 Front Guard Rail x 1 Desk Support Rail 01 x 1 Desk Support Rail 02 x 1 Side Rail x 2...
- Page 6 Panels End Guard Rail x 2 Desktop x 1 Ladder x 1 Ladder Connector Bar x 1 Slats x 24 Wall Bracket x 2 Slat Spacer x 23 Plastic Plug x 48 Bracket x 4...
- Page 7 Fittings M6 Spring Washer x 6 70mm M6 Bolt x 8 M6 Metal Washer x 6 48mm M6 Bolt x 10 25mm M6 Bolt x 6 M6 Plastic Washer x 6 M8 Spring Washer x 1 19mm M6 Bolt x 18 M8 Metal Washer x 1 65mm M8 Bolt x 3 M8 Plastic Washer x 1...
- Page 13 100% Assembly is complete...
-
Page 15: A Guide To Wall Mounting & Fixings
A Guide to Wall Mounting & Fixings Important: When drilling into walls always Important note: check that there are no hidden wires or pipes etc. If plastic wall plugs Make sure that the screws and wall plugs being used are supplied with your are suitable for supporting your unit.
