WARNING: Read carefully and understand all
INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious
personal injury.
INTRODUCTION

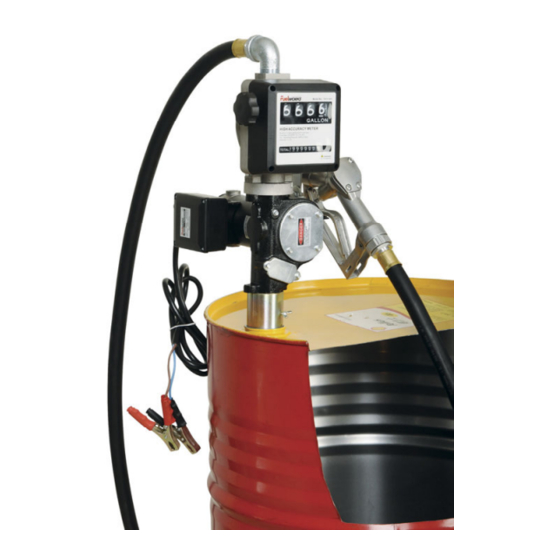

The diesel transfer pump kit has been designed for the delivery of fuel from the drum & tanks in any situation.
This manual, apart from giving all necessary information on ordinary maintenance and supporting engineers
in failure detection and repair, should also give all the information's needed to fully employ the capacity of
the machine, as well as to the user's needs.
INSTALLATION
Electric connection should be done on a CEI standard socket provided with switch (so it isn't live when the
connection is done) according to L.46/90 prescriptions.
DRUM PUMP KIT
User's Manual
DITI10305610
DITI10305611
DITI10305619
DITI10307000
DITI10307207
1 of 7
Advertisement
Table of Contents
Related Manuals for STM DITI10305610
Summary of Contents for STM DITI10305610
- Page 1 DRUM PUMP KIT User’s Manual DITI10305610 DITI10305611 DITI10305619 DITI10307000 DITI10307207 WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. INTRODUCTION The diesel transfer pump kit has been designed for the delivery of fuel from the drum & tanks in any situation.
-
Page 2: Technical Data
PRELIMINARY INSPECTIONS Before the power connection is done, verify the conductors aren’t live and general switches are off. DISMANTLING AND DISPOSAL PROCEDURE The metallic parts which the machine is mainly made of will be dismantled and sent to the steel mills. The fuels in the tanks of the installation will be collected and sent to an authorized disposer. -
Page 3: System Description
10307207 Not Available 72LPM/19GPM 50/60 10305612 15111200 56LPM/15GPM 50/60 10307201 15111200 72LPM/19GPM 50/60 15111200 35/70LPM 10307005 12/24 9/18GPM 10305617 15111200 56LPM/15GPM 10305618 15111200 56LPM/15GPM 10306604 15111200 66LPM/18GPM 10308204 15111200 80LPM/22GPM 10306605 Not Available 66LPM18GPM 10308205 Not Available 90LPM/22GPM PRECAUTIONS During Diesel delivery always wear oil resistant and always wash hands with water and soap at the end. Always clean at once oil stains to avoid slips and/or pollution. -
Page 4: Transport And Unpacking
The machine isn’t designed for employment in the explosive environment. Operating the pump is forbidden to children and disabled person. It is forbidden to employ the unit next to flammable liquids (gasoline, alcohol, etc.). It is forbidden the employment in closed environments in presence of gasoline, LPG, methane fuelled vehicles. -
Page 5: Maintenance
The flow meter shows how many litres of liquid were pumped by the unit. Be aware that this device is not suitable to measure products for resale. The mechanical flow meters indicate the partial (resettable) and total (no reset function) of the litres pumped. Each time the instrument must be reset, turn the knob on the left of the unit until all zeroes are displayed. -
Page 6: Mechanical Risks
correctly. Reassemble the pump. Control that the plug is correctly connected and that the socket is live. The pump works doesn’t deliver A) The pump sucks air from the A) Control the suction hose seal liquid. suction hose. on the pump. Verify that the B) Air inside the pump hose is completely immersed into the liquid and free from... - Page 7 DIAGRAM & PRICE LIST Component Part No. Component description Quantity Part No. Quantity description Outlet O-ring Nozzle flange Bolt M6 Nut M8 Nozzle base Bolt M8 Nut M6 pump Mechanical meter Quick Coupling （Optional） Elbow Inlet 7 of 7...
