Item No.
Part Number
1
01‐0046125
2
02‐0000986
3
03‐0008257
4
04‐0008235
5
05‐0008270
6
06‐0008272
7
07‐0044073
8
08‐0008273
9
09‐0008275
10
10‐0001146
11
11‐0000434
12
12‐0046124
13
13‐0081647
14
14‐0000984
15
15‐0026677
16
16‐0000019
17
17‐0039905
18
18‐0000011
PLEASE ORDER BY PART NUMBER

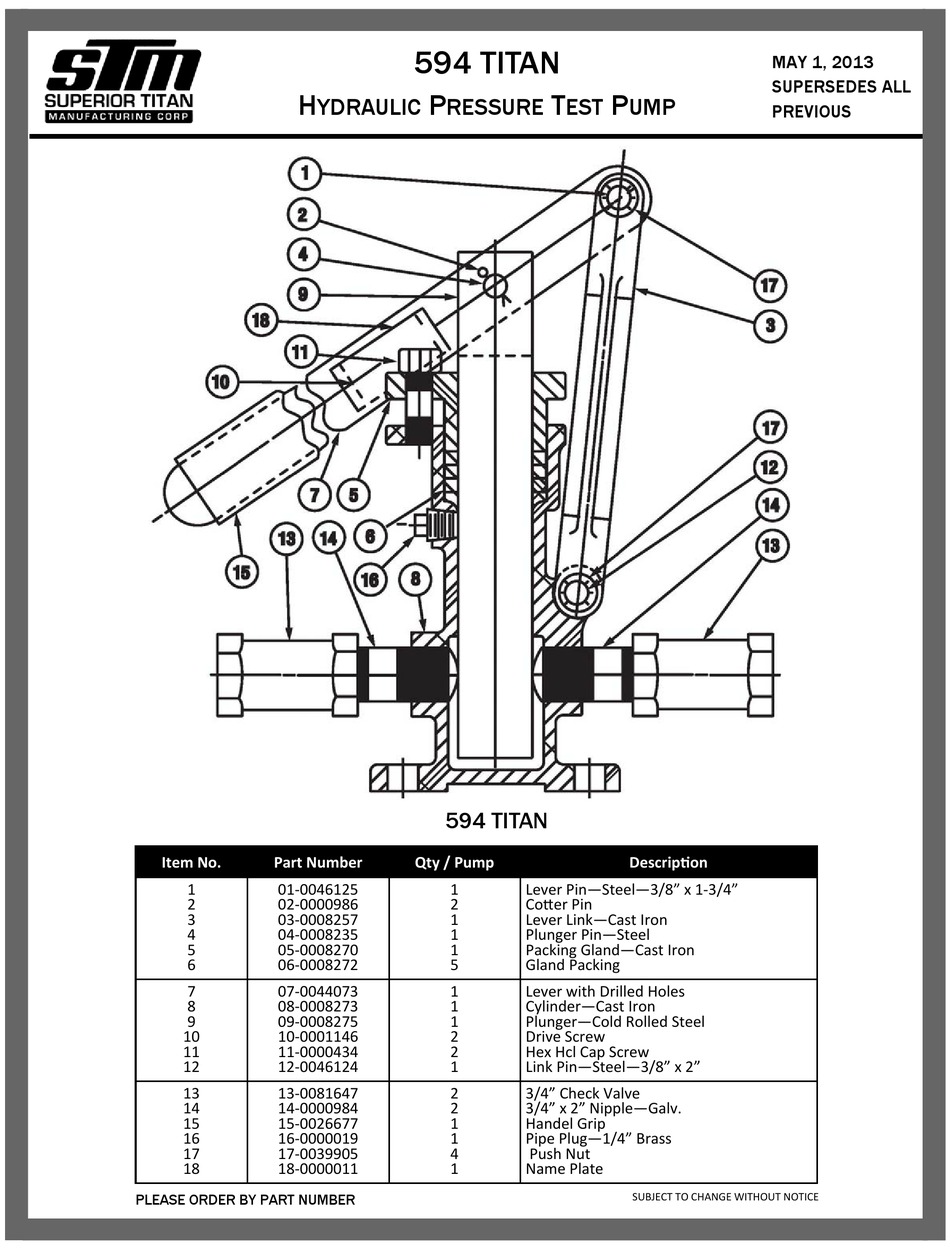

594 TITAN
P
YDRAULIC
RESSURE
594 TITAN
Qty / Pump
1
2
1
1
1
5
1
1
1
2
2
1
2
2
1
1
4
1
T
P
EST
UMP
Descrip on
Lever Pin—Steel—3/8" x 1‐3/4"
Co er Pin
Lever Link—Cast Iron
Plunger Pin—Steel
Packing Gland—Cast Iron
Gland Packing
Lever with Drilled Holes
Cylinder—Cast Iron
Plunger—Cold Rolled Steel
Drive Screw
Hex Hcl Cap Screw
Link Pin—Steel—3/8" x 2"
3/4" Check Valve
3/4" x 2" Nipple—Galv.
Handel Grip
Pipe Plug—1/4" Brass
Push Nut
Name Plate
SUBJECT TO CHANGE WITHOUT NOTICE
MAY 1, 2013
SUPERSEDES ALL
PREVIOUS
