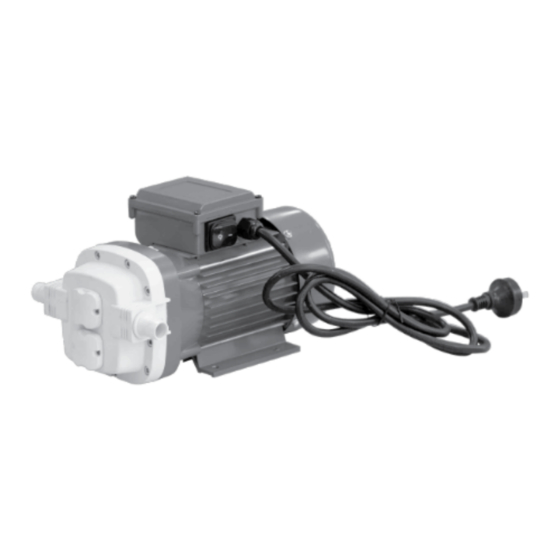

- Page 1 UREA/DEF AC TRANSFER PUMP USER’S MANUAL WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. MODEL NUMBER: 17350250, 17350251...
- Page 2 UREA/DEF AC TRANSFER PUMP MODEL NUMBER USER’S MANUAL 17350250 & 17350251 A. MACHINE DESCRIPTION PUMP: Self-priming, volumetric, diaphragm pump, equipped with by-pass valve. MOTOR: Asynchronous motor, single-phase, 2 pole, closed type (protection class IP55 in conformance with EN 60034-5-86 regulations) self-ventilated.
-
Page 3: Maintenance
UREA/DEF AC TRANSFER PUMP MODEL NUMBER USER’S MANUAL 17350250 & 17350251 E. INSTALLATION E3. CONNECTING THE TUBING • Before connection, make sure that the tubing and the suction tank are free of dirt and thread residue that could damage the pump and its accessories. -
Page 4: Problems And Solutions
UREA/DEF AC TRANSFER PUMP MODEL NUMBER USER’S MANUAL 17350250 & 17350251 J.DIMENSIONAL DATA K. PROBLEMS AND SOLUTIONS PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION The Motor is not turning Lack of electric power Check the electrical connecting Motor Problems Contact the Service Department... - Page 5 UREA/DEF AC TRANSFER PUMP MODEL NUMBER USER’S MANUAL 17350250 & 17350251 15 16 12 13 14 10 11 L: DIAGRAM & PARTS LIST Description Qty. Description Qty. Description Qty. Holder Check Ring O-Ring Hose Tail Motor O-Ring Nutating Disk Switch...
