Summary of Contents for Hunter ST Series
- Page 1 ST-1600 OWNER’S MANUAL ST-1600 Long-Range Synthetic Turf Rotor...
-
Page 2: Table Of Contents
Overview Table of Contents 2 Overview 3 Product Details 4 ST-1600-HS-B Replacement Parts 5 Servicing and Maintenance 6 ST-600-KIT System Components 7 Riser-MountedSystem Components 8 Field Layouts 11 Troubleshooting ST-1600-HS-B: Pop-Up Gear Drive The best-in-class gear-driven ST-1600-HS-B Synthetic Turf Rotor offers a premium solution for synthetic turf irrigation. -
Page 3: Product Details
Product Details Product Dimensions: • Overall height: 221/2" • Pop-up height: 5" • Exposed diameter: 14" • Inlet size: 2" BSP* Operating Specifications: • Radius: 107' to 165' • Flow: 96.2 to 326.8 GPM • Operating pressure range: 60 to 120 PSI •... -
Page 4: St-1600-Hs-B Replacement Parts
ST-1600-HS-B: Replacement Parts ⑫ ITEM DESCRIPTION CATALOG NO. Primary Nozzle Retainer 502402SP ④ 784800SP ② 784801SP ➏ ① 784802SP Primary Nozzle 784803SP ⑪ 784804SP ➐ 784805SP ③ ⑤ Female-threaded Secondary Nozzle Kit 10005900SP nozzle with elbow Male-threaded 10006100SP nozzle ➑ Speed Control Knob 510101SP ➒... -
Page 5: Servicing And Maintenance
Servicing and Maintenance A. Replacing the cover and rotor B. Replacing the propeller and D. Servicing secondary nozzle checking for debris Unthread the secondary nozzle. Remove center plug with a flat- blade screwdriver and unscrew the Remove the eight screws on the nut underneath using a 1/2"... -
Page 6: St-600-Kit System Components

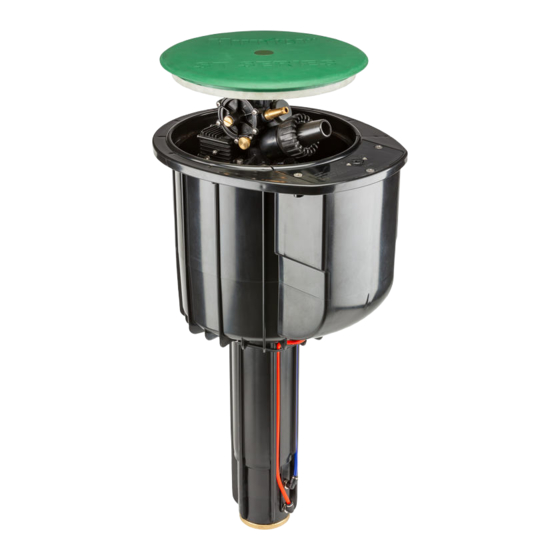

ST-1600-KIT System Components The ST-1600-HS-B Rotor paired with the ST-1600-KIT vault system is the superior solution for all synthetic turf irrigation needs. The ST-1600-KIT brings ST irrigation components together inside one strong underground enclosure that offers simple access from the top for quick servicing and maintenance. -
Page 7: Riser-Mountedsystem Components
Riser-Mounted System Components The riser-mounted ST-1600-HS-BR Rotor cools and cleans synthetic fields from above. If riser-mounted irrigation is your choice, protect the riser with padding for safety. This option is also a great dust-control solution for horse arenas, corrals, and pastures. ITEM DESCRIPTION ST-1600-HS-BR Synthetic Turf Rotor, ①... -
Page 8: Field Layouts
Field Layouts American football field, with a #20 nozzle installed, operating at 100 PSI... - Page 9 Field Layouts International soccer pitch, with a #24 nozzle installed, operating at 90 PSI hunterindustries.com...
- Page 10 ST-1600 PERFORMANCE DATA (IMPERIAL) Nozzle Pressure Radius Flow Precipitation in/hr* 96.2 1.63 1.88 107.3 1.57 1.81 117.8 1.54 1.78 127.3 1.50 1.73 137.4 1.46 1.69 107.0 1.66 1.91 119.4 1.56 1.80 131.0 1.54 1.78 141.3 1.54 1.78 153.2 1.48 1.71 144.0 2.10 2.43...
-
Page 11: Troubleshooting
1.41 1.63 92.5 1.47 1.70 Troubleshooting Find other helpful information about your product, including installation tips and more. hunter.help/ST1600Support 1-760-591-7383 Important After Installation Caution • Stand clear of the rotor's water jet and The water may contain foreign objects Troubleshooting non-rotation after area of operation. - Page 12 HUNTER INDUSTRIES | Built on Innovation® 1940 Diamond Street, San Marcos, CA 92078 USA hunterindustries.com © 2022 Hunter Industries Inc. Hunter, the Hunter logo, and all other trademarks are property of Hunter Industries, registered in the U.S. and other countries. RC-137 OM US B 4/22...
