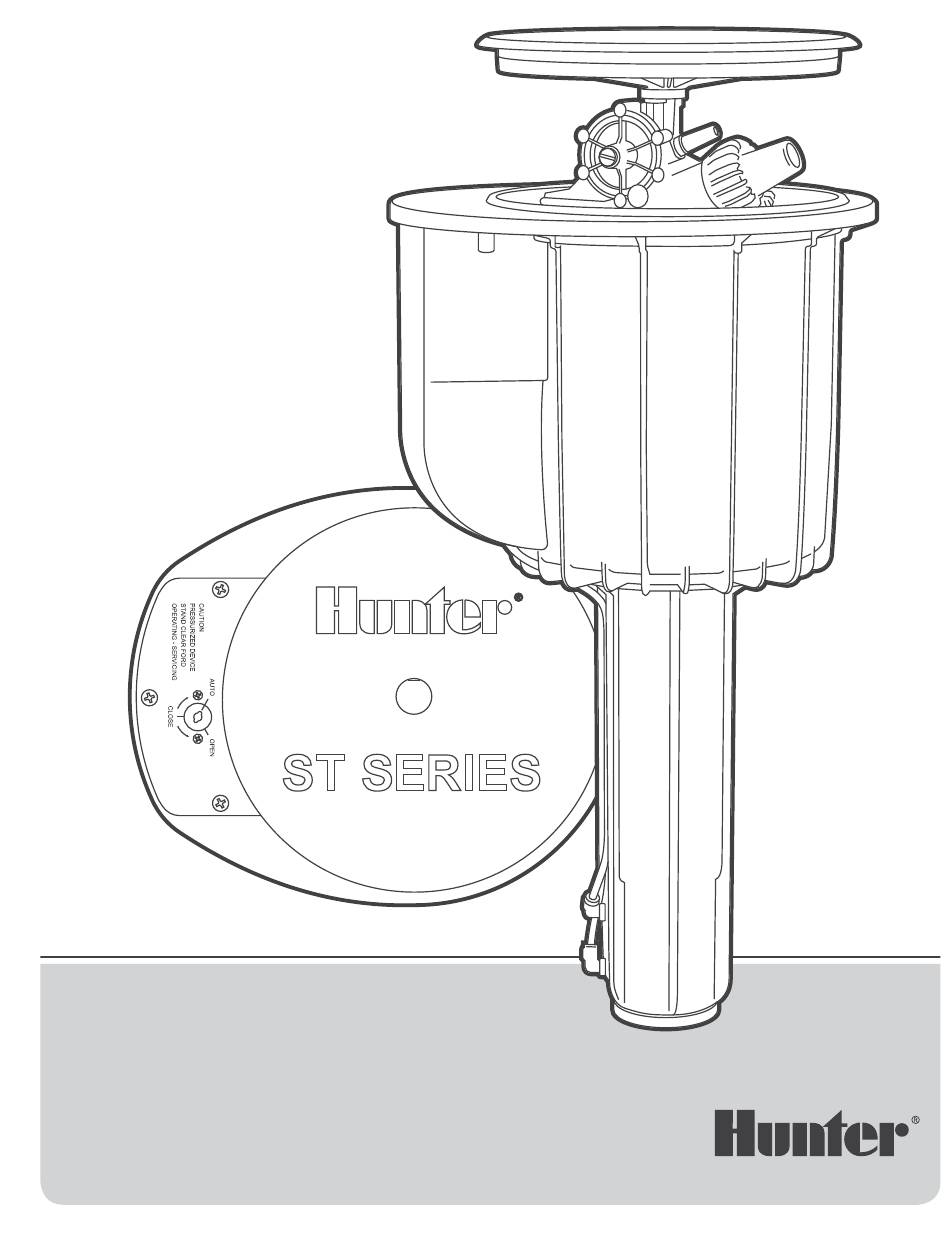

- Page 1 ST-1700V OWNER’S MANUAL ST-1700V Long-Range Synthetic Turf Rotor...
- Page 2 Overview Hunter’s synthetic turf rotors are designed to cool, clean, and flush synthetic sports fields. The ST-1700V long-range synthetic turf rotor offers high-performance irrigation from the field perimeter while integrating Valve-in-Head (VIH) capabilities and a Total-Top-Service (TTS) design to simplify installation and maintenance. With the same heavy-duty internal gear drive as the proven ST-1600-HS-B rotor, the ST-1700V provides years of reliable operation.
-
Page 3: Product Details
Product Details Product Dimensions Operating Specifications • Overall height: 263/ 4 " (68 cm) • Radius: 105' to 157' (32 to 48 m) • Pop-up height: 5" (13 cm) • Flow: 92.4 to 259 GPM (21.0 to 58.8 m /hr; 350 to 980 l/min) •... -
Page 4: Replacement Parts
Replacement Parts ITEM DESCRIPTION CATALOG NO. ⑫ Primary Nozzle Retainer 502402SP ④ ② 784800SP 784801SP ① ⑪ ⑥ Primary Nozzle Kit 784802SP ③ ⑮ 784803SP 784804SP Secondary Nozzle Female-threaded ⑭ ⑤ 10005900SP nozzle with elbow Male-threaded 10006100SP ⑦ nozzle Speed Control Knob 510101SP ⑧... -
Page 5: Servicing And Maintenance
Servicing and Maintenance A. Replacing the cover and rotor B. Replacing the propeller E. Accessing the valve-in-head Remove the center plug with a flat- Remove the eight screws on the Remove the rotor (see Step A). Remove blade screwdriver and unscrew the turbine housing (six large, two the boot. - Page 6 Installation Guide ➊ ➋ ➌ ACTUATOR ➍ ➎ Use “T” handle tool (P/N 319100SP) to operate solenoid actuator. ➊ ➋ ➌ ⑩ ➍ ➐ ➒ ➏ ➎ ➑ Page RESIDENTIAL & COMMERCIAL IRRIGATION Built on Innovation ®...
-
Page 7: Installation Detail
Installation Guide SOLENOID COMPARTMENT DETAIL Discharge port (OPEN) Discharge port (AUTO) Solenoid* Water line to filter Water line to valve-in-head * If connecting to a two-wire system, there is potential for miswiring the solenoid. Should your solenoid not fire during system start-up, your first troubleshooting measure should be to swap the two solenoid wires. - Page 8 Field Layouts International soccer pitch, with a #24 nozzle installed, operating at 90 PSI (6.0 bar; 600 kPa) For safe and easy access to internal components, position the flange compartment away from the nozzle direction. Page RESIDENTIAL & COMMERCIAL IRRIGATION Built on Innovation ®...
- Page 9 Field Layouts Field hockey field, with a #20 nozzle installed, operating at 100 PSI (7.0 bar; 700 kPa) For safe and easy access to internal components, position the flange compartment away from the nozzle direction. Page Visit support.hunterindustries.com...
- Page 10 ST-1700V PERFORMANCE CHART (IMPERIAL) Nozzle Pressure Radius Flow Precipitation in/hr* 92.4 1.61 1.86 1.48 1.71 1.52 1.76 1.50 1.74 134.1 1.53 1.76 1.67 1.93 1.56 1.81 1.54 1.78 1.54 1.77 148.9 1.53 1.76 134.1 1.99 2.29 1.80 2.08 1.73 2.00 1.74 2.01 193.7...
- Page 11 ST-1700V PERFORMANCE CHART (METRIC) Nozzle Pressure Radius Flow Precipitation mm/hr* l/min 32.0 21.0 41.0 47.3 35.0 22.7 37.1 42.8 37.0 25.9 37.8 43.7 38.5 28.1 38.0 43.9 40.0 30.4 38.1 43.9 34.0 24.3 42.0 48.5 36.5 26.1 39.2 45.3 38.5 28.8 38.9 44.9...
- Page 12 HUNTER INDUSTRIES INCORPORATED | Built on Innovation® 1940 Diamond Street, San Marcos, California 92078 USA hunterindustries.com © 2020 Hunter Industries Inc. Hunter, the Hunter logo, and all other trademarks are property of Hunter Industries, registered in the U.S. and other countries. RC-125 OM A 5/20...
