Radius Reduction Screw
PGJ
Plus+ Minus -- Arc Adjustment
Arc Adjustment
(All PGJ adjustable heads are PRESET to
approximately 40°)
1. Rotate the nozzle turret counterclockwise
to the left stop.
2. Now, rotate the nozzle turret clockwise to
the right stop. This is the fixed side of the
arc. The nozzle turret must be held in this
position for all arc adjustments.
To increase arc:
1. Insert the key end of the Hunter wrench
into the adjustment socket on top of the
sprinkler.
2. While holding the nozzle turret at the right
stop, turn the wrench clockwise.
3. Wrench will stop turning when adjusted to
the maximum arc (360°). Do not go past
this stop.
4. Adjust to any arc between 40°- 360°.
Hunter Industries Incorporated • The Irrigation Innovators
www.HunterIndustries.com
Pull-up
Socket
V
Gear Driven Sprinklers
To decrease arc:
1. Insert the key end of the Hunter wrench
into the adjustment socket.
2. While holding the nozzle turret at the right
stop, turn the wrench counterclockwise.
3. Wrench will stop turning when adjusted to
the minimum arc (40°). Do not go past this
stop.
4. Adjust to any arc between 40°-360°.
Radius Adjustment
To decrease radius:
1. Turn nozzle-retainer/range-adjustment
screw clockwise using hex end of Hunter
tool or slot screwdriver. This can reduce
radius up to 25%.
2. If an even smaller radius is desired, install
a smaller nozzle. This will affect precipita-
tion rate.
To increase radius:
1. Turn nozzle-retainer/range-adjustment
screw counterclockwise using hex end of
Hunter tool or slot screwdriver.
2. If larger radius is desired, install larger
nozzle. This will affect precipitation rate.
Precipitation Rate Adjustment
To increase precipitation:
1. Remove existing nozzle.
2. Replace with larger size.
3. Adjust radius.
To decrease precipitation:
1. Remove existing nozzle.
2. Replace with smaller size.
3. Adjust radius.
Note: Undamaged nozzles are reusable.
PGJ
© 2004 Hunter Industries Incorporated
P/N 700974
LIT-379
3/04
Advertisement
Table of Contents
Related Manuals for Hunter PGJ
Summary of Contents for Hunter PGJ
- Page 1 Gear Driven Sprinklers To decrease arc: 1. Insert the key end of the Hunter wrench Radius Reduction Screw into the adjustment socket. 2. While holding the nozzle turret at the right stop, turn the wrench counterclockwise. Pull-up 3. Wrench will stop turning when adjusted to Socket the minimum arc (40°).
- Page 2 Gear Driven Sprinklers Nozzle Installation 25° so that the nozzle range screw threads 1. Insert the plastic key end of the Hunter directly down. Then tighten the nozzle wrench into the lifting socket of the sprin- range screw. The arrow on the rubber kler and turn 90°.
Need help?
Do you have a question about the PGJ and is the answer not in the manual?
Questions and answers

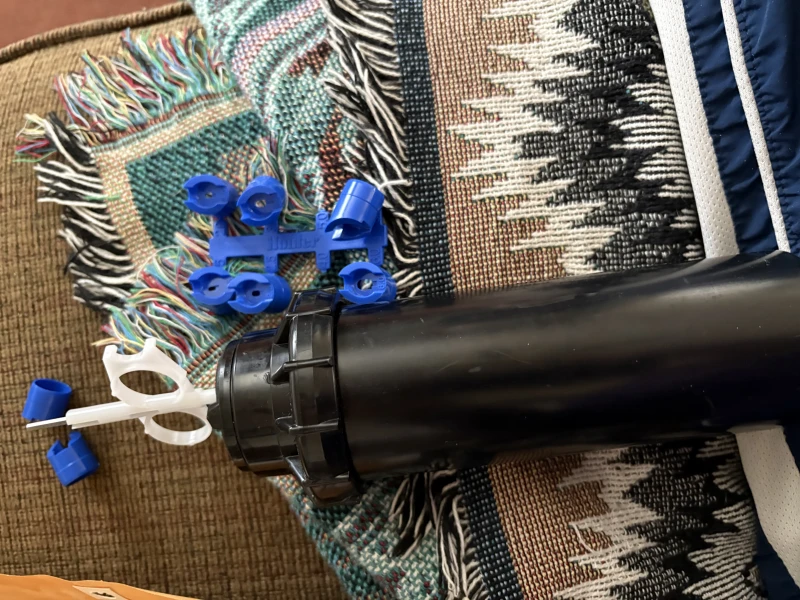

How do you determine the correct nozzle to use? Is it the full length between sprinkler heads or half that length? How do you keep the head extended to insert a nozzle? Your instructions are not complete.
