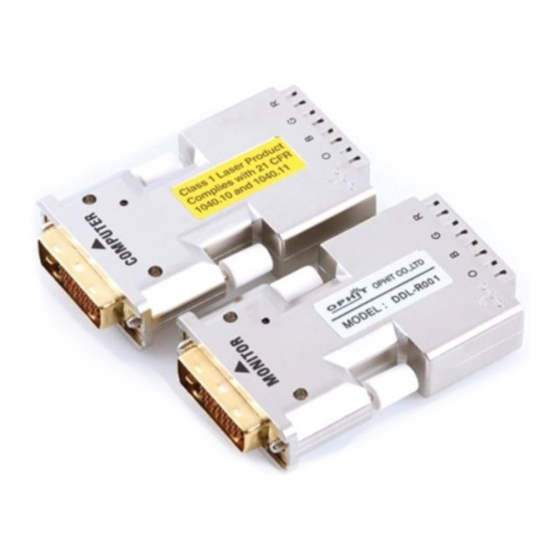

- Page 1 User’s Guide DVI Optical Extender Thank you for purchasing DDL Optical DVI extender DDL extends DVI signal up to 1000M using a four(4) strands of multi-mode optic fiber. It supports single-link DVI resolutions up to 1920x1200. www.ophit.com...
- Page 2 4. Connect the included +5V DC power cable from Receiver module and monitor. Receiver module and monitor. If any of these items are missing in your package, contact OPHIT or 5. Green LED indicator on the modules will be light up your supplier for support.
- Page 3 5. Disconnect the Transmitter module from the display. 6. Restart system according to the installation steps in previous page. NOTE : Transmitter module of DDL is Class 1Laser Product -Avoid direct Eye exposure -Do not twist or pull by force the both ends of the optical cable.
- Page 4 Warranty We, OPHIT hereby warrant the final purchase of our product as follows. In the case of troubles on our products, please contact the shop purchased. One year limited warranty Our customers have right to be served with free of charge when there is trouble in this product during 1(one) year from the day purchased.
- Page 5 RMA Request Form No.: Customer Name: Return Date: Company Name: Phone: Model Name: E-Mail: Serial No: Place of Purchase: Address: (For RMA Return) RMA details: (Please describe RMA status, application used and failure symptom) www.ophit.com...
- Page 6 TEL: +49 (0) 6104-643980 Tel: +1-714 300 0540 FAX: +44-208-391-4953 FAX: +49 (0) 6104-64398-11 Fax : +1-714 300 0546 E-mail: jason.kwon@fsnmed.eu E-mail: jason.kwon@fsnmed.eu E-mail: jhan@foreseesonusa.com www.ophit.com © 2020 OPHIT CO., LTD. All rights reserved. REV. 1.4 Printed and designed in Korea...
