- Page 1 USER’S manual Dual link Extension System DQSL...
-
Page 2: Table Of Contents
Table of Contents Introduction ………………........…2 Features ….…………………….....………………..2 Model name …………....………………….………2 Panel Descriptions …....………………….………3 Package contents .……….....…………….……….3 Installation .………………....……………………….4 Specification ………………………....……………..5 Precaution .……………………………....………….6 Warranty .……………………………...…....……….7 10. Contact us..............8 www.ophit.com... -
Page 3: Introduction
Introduction DQSL with fiber optical system let your dual link flat panel display extend up to 100M(330ft) away from the host. Maximum resolution is WQXGA. Features • High Speed and long distance transmission by LC type 2ch multi-mode fiber optic cable •... -
Page 4: Panel Descriptions

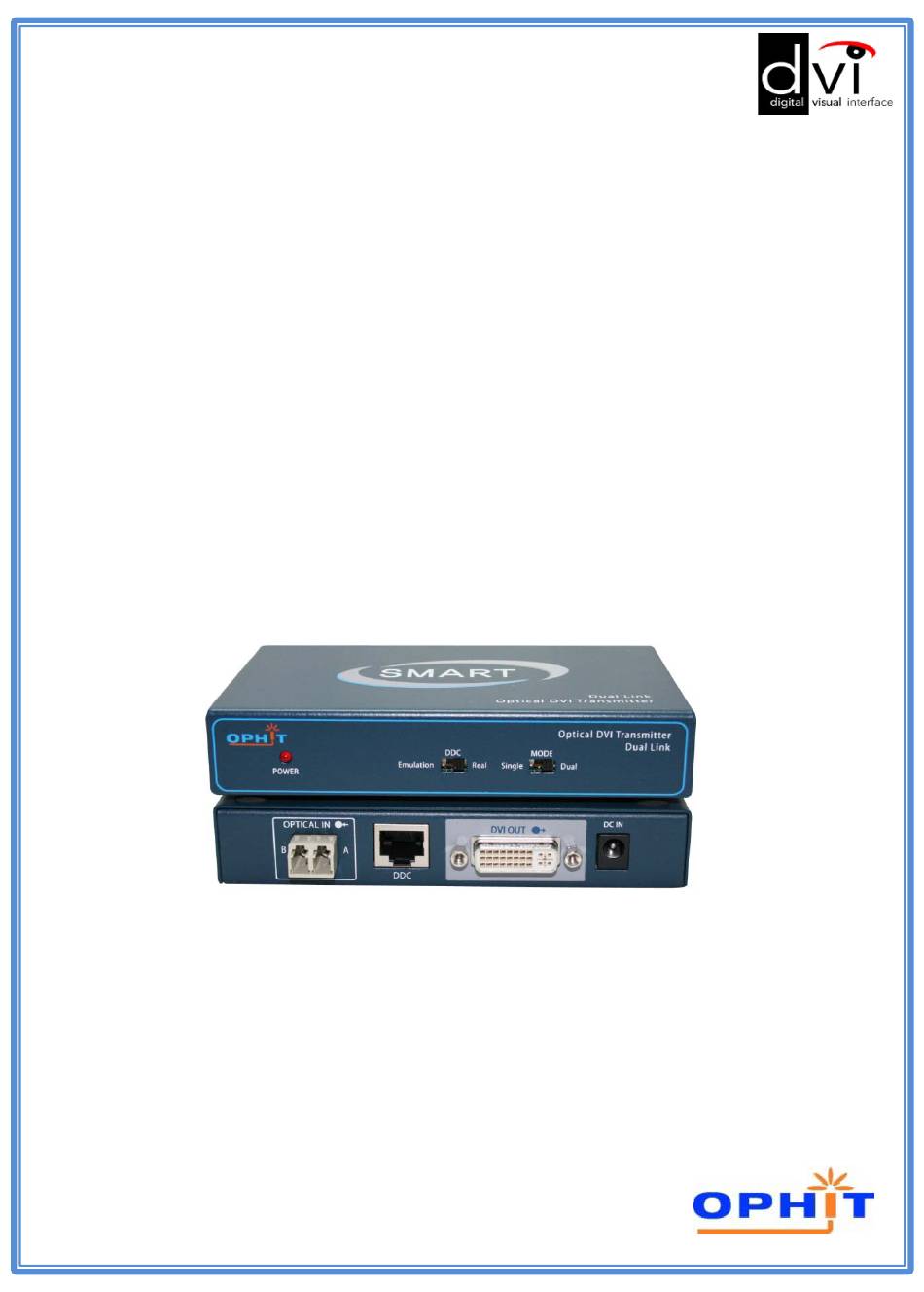

Transmitter Rear Optical 2ch LC DVI Output UTP port for Power jack port port Package contents Before you start installing DQSL, please check the package contents. • DQSL Transmitter & Receiver • User’s Manual • 2 x Power adapter(5V,2A) www.ophit.com... -
Page 5: Installation
Installation Installation 1. Connect a source device to DVI input port on DQSL Transmitter. 2. Connect 2ch of LC type optic fiber cables to optical port. 3. Connect the display device to DVI output port on DQSL Receiver. 4. Connect UTP cable between TX and RX for DDC communication. (Optional) 5. -
Page 6: Specification
Power Supply : 100~240V with DC 5V 2A adaptor for Tx and Rx • Dimension : 135W x 85D x 25H (mm) • Environment • - Operating Temperature Range : 0 to 50°C - Storage Temperature Range : -20 to 70°C www.ophit.com... -
Page 7: Precaution
Have the product checked by a qualified service engineer before using it again. • Do not touch the Product with wet hands. Touching the housing and plug with wet hands is dangerous and can cause electrical shock. www.ophit.com... -
Page 8: Warranty
Warranty We, OPHIT hereby warrant the final purchase of our product as follows. In the case of troubles on our products, please contact the shop purchased. One(1) year limited warranty Our customers have right to be served with free charge when there is trouble in this product during one(1) year from the day purchased. -
Page 9: Contact Us
Contact us OPHIT CO., LTD. www.ophit.com Head office 908~911/103 Digital EmpireⅡ, 486 Sin-Dong, Youngtong- Suwon-City, Kyunggi-Do 443-734, KOREA TEL : +82-31-695-5543 FAX : +82-31-695-5545 E-mail : support@ophit.com Factory 3F/5F, Suntechnovil, 5-27, Mangpo-Dong, Youngtong-Gu, Suwon-City, Kyunggi-Do 443-440, KOREA TEL : +82-31-205-4191 FAX : +82-31-205-4197 Rev. - Page 10 Copyright ⓒ 2011 OPHIT All right reserved...
